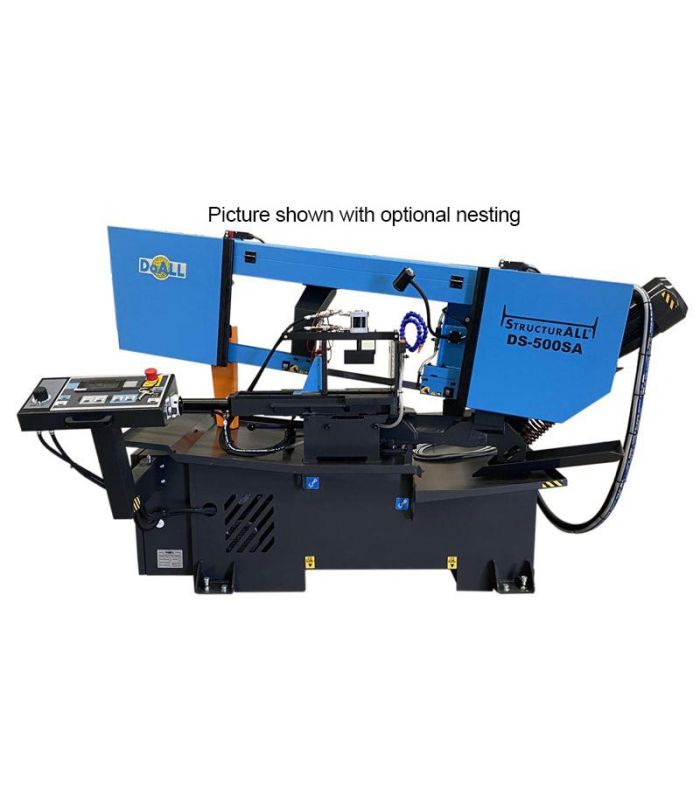

DS-500SA Dual-Miter Semi-Automatic Band Saw

Machine Details & Specs:

• Operator Control Console - Control console can be positioned for operator comfort and safety insuring hands are away from the blade at band start.
• Mitsubishi Touch Screen Panel - The touch screen control panel displays the cutting cycle indicator, blade tension indicator, BRP (overfeed protection) function, band speed, head angle, band drive amp load, and a list of error messages allowing the operator to monitor machine functions.
• Saw Head Design - The robust head is mounted at a 2-degree slope which decreases tooth load at the end of the cut increasing band life.
• Direct Driven Band Drive - Drive is comprised of an electric VFD controlled motor transferring power through a gear reduction unit directly to the drive wheel eliminating belt slippage and giving positive torque to the blade.
• Semi-Automatic Cycle - Programmable cycle allows the operator the ability to control hydraulic on-off, saw head movement after the cut, head raise limit through programmable set point, band drive on-off, and vise clamp-unclamp after the cut maximizing productivity.
• Automatic Overload Feed Protection - BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.
• Band Wheels - Cast steel wheels insure band tracking and long life.
• Hydraulic Clamping Vise - Full stroke, hydraulic vise can be positioned on either side of band allowing maximum clamping close to the cut line eliminating material movement and tooth strippage.
• Manual Blade Tension - Illuminating indicator prevents the possible error of over/under tightening the band for maximum cutting rates and band life.
• Band Brush - Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.
• Counter Balance Springs - Counter balance springs maintain constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.
• Head Turn Table - Manual position of the saw head is accomplished by releasing the lock mechanism and rotating the head to the desired angle monitored on the digital display. The machine is equipped with a spring-loaded detent for zero position allowing for decreased setup time.
• Warranty - One-year parts only subject to the terms and conditions. Optional ten-year available DoALL Cut Above 10 Year Warranty

Specs:

Saw Blade:

• Width x Length – 1.25" x 188"

Band Drive:

• Motor HP - 4 Hp
• Band Speed - 65-328 fpm
• Band Tension – Manual

Hydraulic System:

• Motor Hp - .5 Hp
• Reservoir Size - 3 Gallons

Coolant System:

• Motor Hp - .6 Hp
• Reservoir Size - 5 Gallon s

Indexer:

• Length per Stroke - N/A
• Maximum Index Strokes Length - N/A
• Remnant Length - N/A

Floor Space Dimensions:

• W x L X H - 114" x 43" x 56"
• Material Pass Height - 32"
• Machine Weight - 1,631 lbs.

Electrical:

• Voltage Requirement - 230V or 460 -6 0Hz-3ph, Wye configuration (Must Specify at Order Placement)
• Total Amp Draw (FLA)(460V - 7) (230V - 14)
