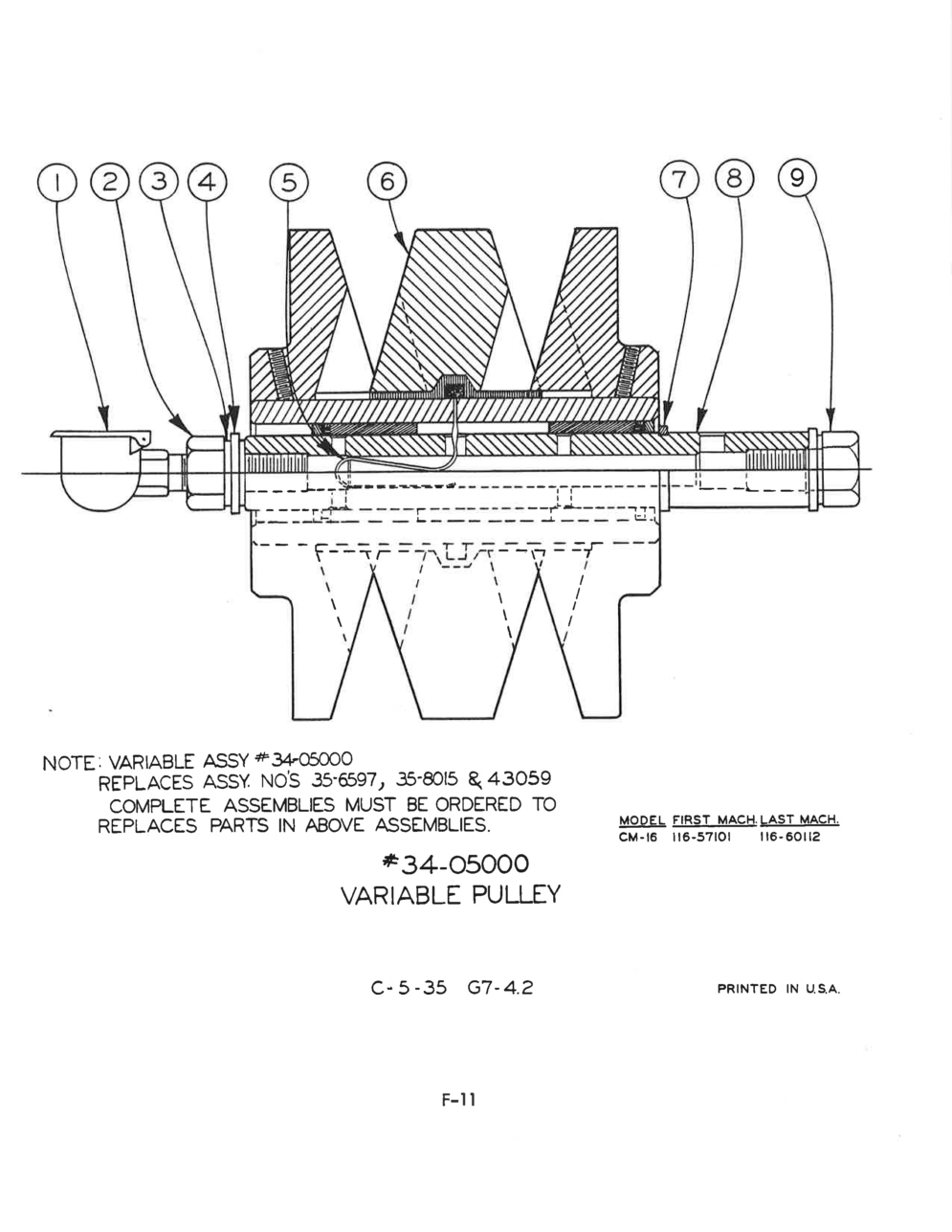

Exploded View Parts Ordering: ML_3801
Page Code: C-5-35
| Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
|
Index No Ref.:
Ref. |
Part Number:
34-05000 |
Description:
Variable Pulley Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
1 |
Part Number:
35-5877 |
Description:
Variable Oiler |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
2 |
Part Number:
35-6039 |
Description:
Oiler Bolt |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
3 |
Part Number:
34-05519 |
Description:
Copper Gasket |
Units Per Assembly:
3 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
4 |
Part Number:
35-2736 |
Description:
Washer |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
5 |
Part Number:
34-05311 |
Description:
Oil Carrier |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
6 |
Part Number:
45665 |
Description:
Variable Sheaver Sleeve Sub-Assembly |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
7 |
Part Number:
34-05525 |
Description:
Snap Ring |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
8 |
Part Number:
34-05401 |
Description:
Variable Pulley Shaft |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
9 |
Part Number:
35-6381 |
Description:
Bolt 5/8-11NC x 1 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
