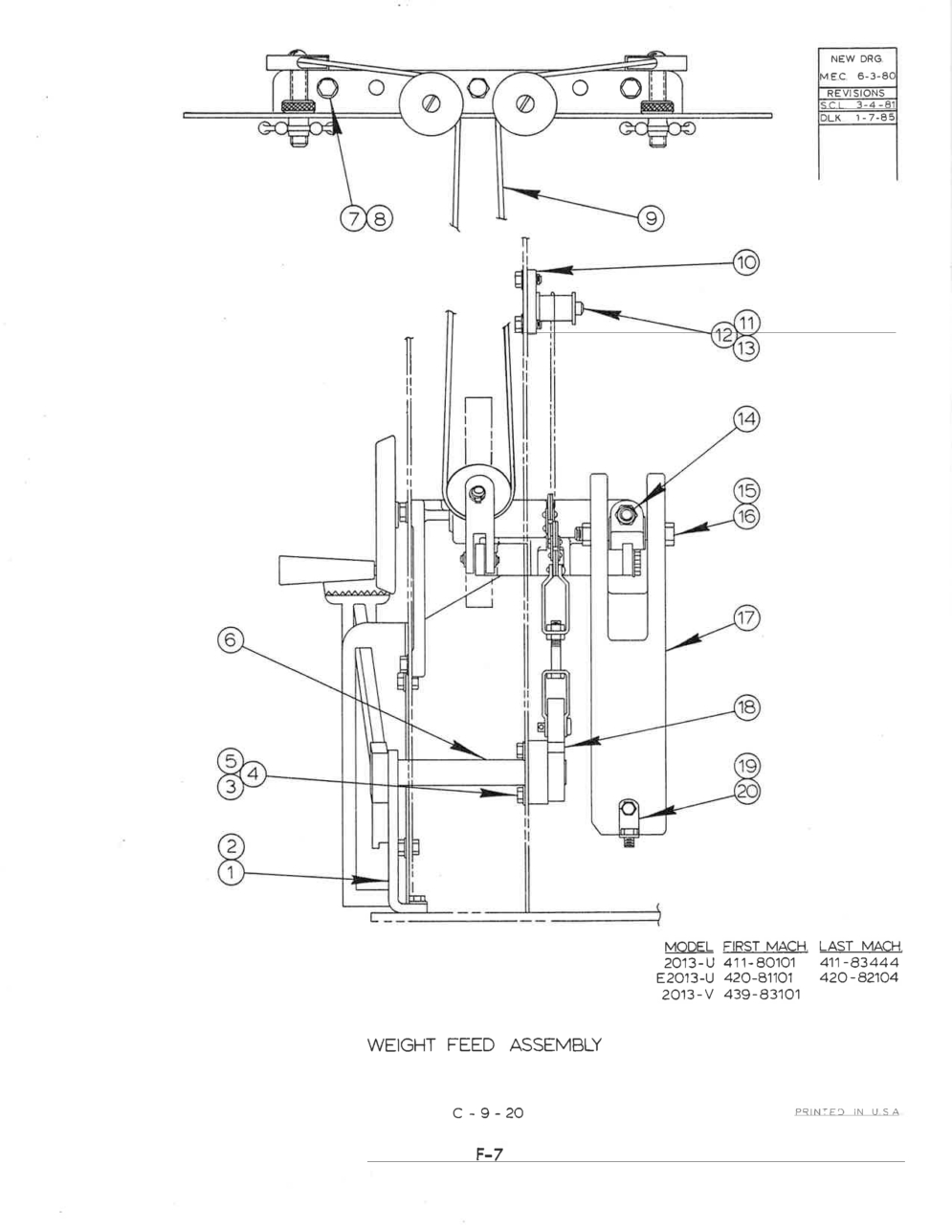

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-9-20
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-086344 | Description: Weight Feed Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-980458 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 093-077089 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-475707 | Description: Bearing Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-980276 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-306563 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 7 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-053221 | Description: Carrier and Cable Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-186957 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-995126 | Description: Cotter Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-993048 | Description: Washer, Flat 1/2 Wrought Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-306555 | Description: Chain Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 105-134100 | Description: Screw Stop Nut 1/2-13NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-980748 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 3-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-991323 | Description: Nut, Hex. Jam 1/2-13NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 17 | Part Number: 105-131122 | Description: Weight | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-306571 | Description: Release Arm | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 105-133086 | Description: Weight Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-980425 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
