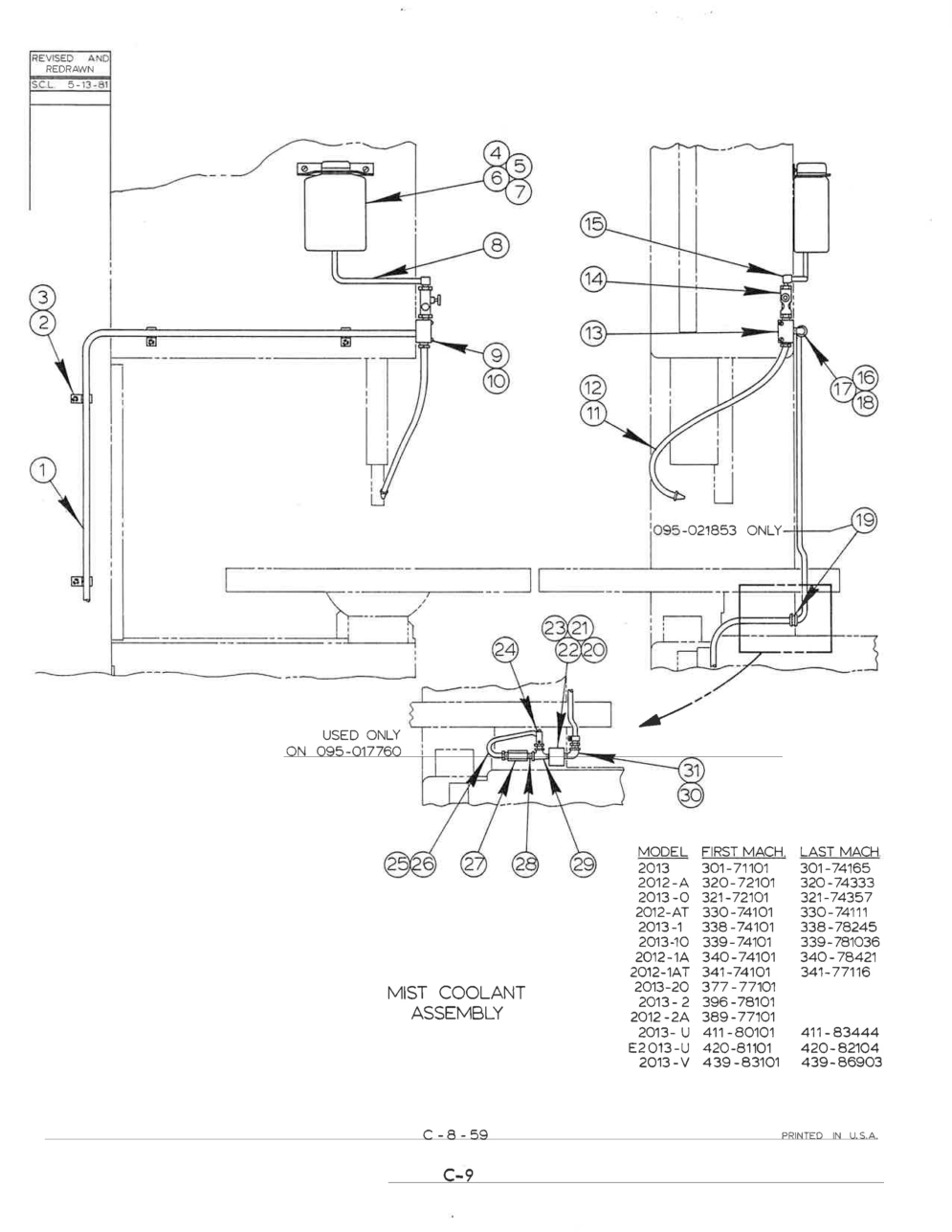

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-8-59
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-021853 | Description: Mist Coolant Assembly (2013, 2013-0, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, E2013-U) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 095-017760 | Description: Mist Coolant Assembly (2012-A, 2012-AT, 2012-1A, 2012-1AT, 2012-2A) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-970962 | Description: Hose 5/8 O.D. | Units Per Assembly: A. R | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-323758 | Description: Conduit Strap | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-990150 | Description: Screw, Truss Hd. Mach. #10-24NC x 3/8 (Ass'y. 095-021853) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-988931 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 (Ass'y. 095-017760) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: *4 | Part Number: 091-369181 | Description: Bottle Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 093-039568 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-988931 | Description: Screw, Rd.Hd. Mach. 1/4-20NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 091-971440 | Description: Plastic Tubing 1/4 O.D. | Units Per Assembly: A. R . | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 9 | Part Number: 691-988782 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-383035 | Description: Coolant Manifold Assembly (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-383043 | Description: Coolant Manifold Assembly (Extra Work Height) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-040973 | Description: Air Hose (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-210203 | Description: Air Hose (Extra Work Height) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-199778 | Description: Coolant Tube Sub-Assembly (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-210518 | Description: Coolant Tube Sub-Assembly(Extra Work Height) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-199109 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 105-275077 | Description: Sight Feed Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 105-045207 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-179029 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-281790 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-058470 | Description: Grommet (Ass'y.095-021853 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-988956 | Description: Screw, Rd. Hd. Mach.1/4-20NC x 1/2 (Ass'y.095-017760 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-993741 | Description: Washer, Lock 1/4 Shakeproof Ext. (Ass'y.095-017760 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 093-078939 | Description: Coolant Manifold Ass'y. (Ass'y. 095-017760 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-281485 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-180885 | Description: Safety Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-970947 | Description: Hose, Black Neoprene 11/16 O.D | Units Per Assembly: A.R. | Availability: In Stock | Price: $3.44 |
| Index No Ref.: 26 | Part Number: 135-068880 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 093-034106 | Description: Orifice (.033 Dia.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 114-035074 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 135-008472 | Description: Service Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 117-135210 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-020041 | Description: Barbed Insert | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE To Replace any other Preceding Style Coolant Tank, Metal or plastic, Order 090-851577 Coolant Tank Service Kit | Units Per Assembly: | Availability: Call For Info | Price: |
