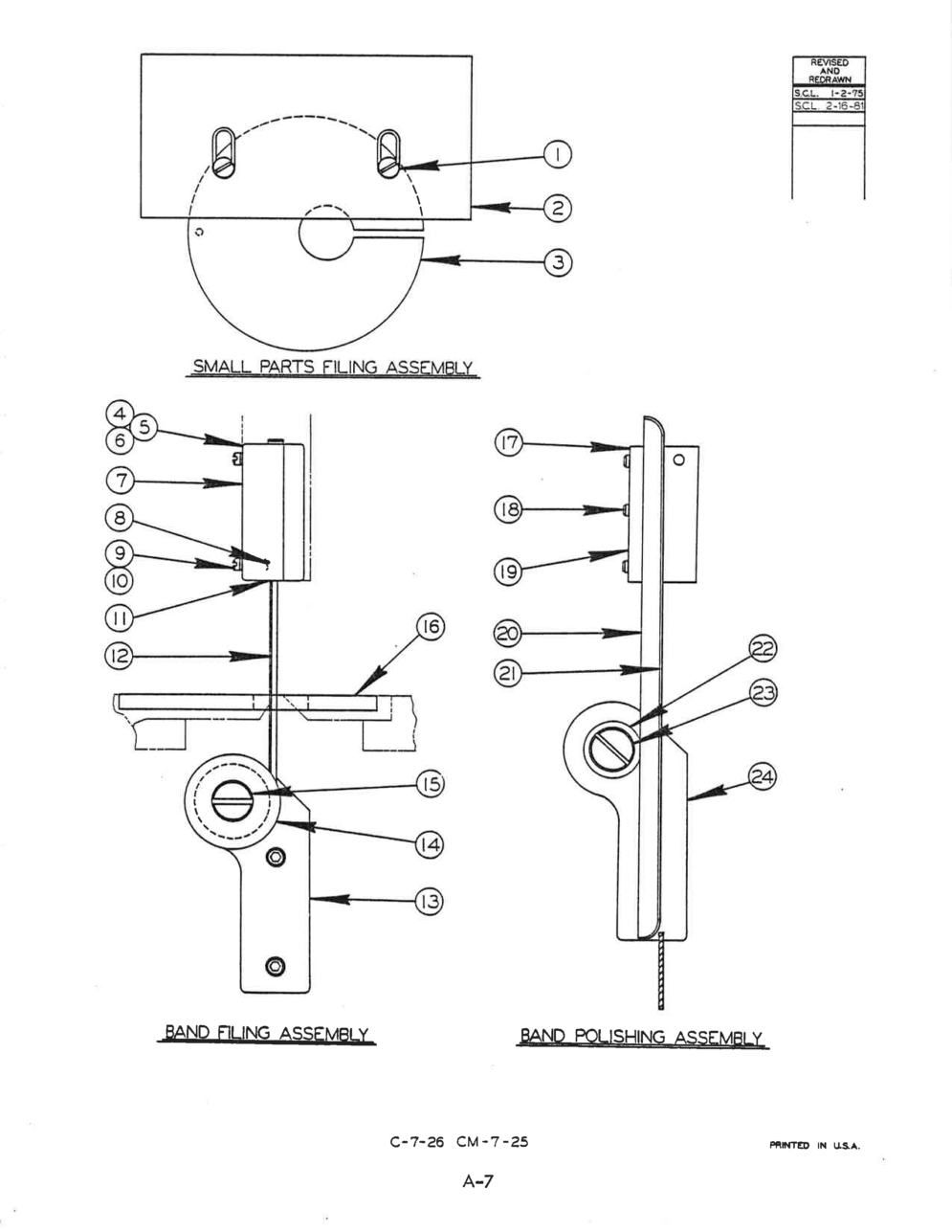

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-7-26
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 080-076458 | Description: Small Parts Filing Assembly (1612, 1612-0, 1612-1, 1612-H, 2012-A, 2012-1A, 2012-AT, 2012-1AT, 2012-1H, 2012-2A, 2013, 2013-0, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, 2612-1, 2612-H, 3612, 2013-V, 3613-0, 3612-1, 3613-1, 3613-10, 3612-1H, 3613-2, 3613-2 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-987487 | Description: Screw, Fill. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 2 | Part Number: 090-120460 | Description: Small Part Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-120452 | Description: Center Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-447808 | Description: Band Filing Assembly (1612, 1612-0, 1612-1, 1612-H, 1613-2, 1612-3, 2012-A, 2012-1A, 2012-AT, 2012-1AT, 2012-1H, 2012-2A, 2013, 2013-0, 2013-V, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, 2613-3, 2612-2H, 3613-1, 3612-H, 3612-1H, 3612-3, 6013-3, 3613-20) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 081-119489 | Description: Band Filing Assembly (1612, 1612-0, 1612-1, 1612-H, 1612-3, 2012-A, 2012-1A, 2012-AT, 2012-1AT, 2012-1H, 2012-2A, 2013, 2013-0, 2013-1, 2013-V, 2013-10, 2013-2, 2013-20, 2013-U, 3612-H, 3612-1H, 3613-3, 3612-3, 3613-20) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 081-327736 | Description: Band Filing Assembly (1612, 1612-0, 2012-A, 2012-AT, 2013, 2013-0, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, 2612-1, 2612-H, 3612, 2013-V, 3613-0, 3612-1, 3613-10, 3613-2, 3613-20, E3613-20) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 084-049949 | Description: Band Filing Assembly (1612, 1612-0, 2012-A, 2012-AT, 2013, 2013-0, 2013-1, 2013-10, 2013-2, 2013-20, 2013-U, 2612-1, 2612-H, 3612, 2013-V, 3613-0, 3612-1, 3613-10, 3613-2, 3613-20, E3613-20) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-485328 | Description: Band Filing Assembly (1612-3, 2612-2H, 2613-3, 3612-3, 6013-3) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 084-014389 | Description: Band Filing Assembly (1612-3, 2612-2H, 2613-3, 3612-3, 6013-3) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-447815 | Description: Band Filing Assembly (2613-2, 3613-2, 6013-2) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-455974 | Description: Band Filing Assembly (1613-2, 2613-2, 6013-2) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-274879 | Description: 1/4" File Guide Ass'y.(080-447808, 084-049949, 080-447815) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.33 |
| Index No Ref.: | Part Number: 090-274903 | Description: 1/4" File Guide Ass'y.(081-119489, 081-327736, 080-455974) | Units Per Assembly: 1 | Availability: In Stock | Price: $10.00 |
| Index No Ref.: | Part Number: 090-340969 | Description: 1/4" File Guide Ass'y.(080-485328) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340993 | Description: 1/4" File Guide Ass'y.(084-014389) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-274887 | Description: 3/8" File Guide Ass'y.(080-447808, 084-049949, 080-447815) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274911 | Description: 3/8" File Guide Ass'y.(081-119489, 081-327736, 080-455974) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340977 | Description: 3/8" File Guide Ass'y.(080-485328) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-341033 | Description: 3/8" File Guide Ass'y.(091-014389) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-274895 | Description: 1/2" File Guide Ass'y. (080-447808, 094-049949, 080-447815) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274929 | Description: 1/2" File Guide Ass'y. (081-119489, 081-327736, 080-455974) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.12 |
| Index No Ref.: | Part Number: 090-340985 | Description: 1/2" File Guide Ass'y. (080-485328) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-341041 | Description: 1/2" File Guide Ass'y. (084-014389) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-274176 | Description: Bracket (090-274879) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274184 | Description: Bracket (090-274903) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340951 | Description: Bracket (090-340969) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340944 | Description: Bracket (090-340993) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274200 | Description: Bracket (090-274887) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274218 | Description: Bracket (090-274911) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340936 | Description: Bracket (090-340977) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340928 | Description: Bracket (090-341033) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274192 | Description: Bracket (090-274895) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-274226 | Description: Bracket (090-274929) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340910 | Description: Bracket (090-340985) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-340902 | Description: Bracket (090-341041) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 106-093149 | Description: Washer (1/4" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093131 | Description: Washer (3/8" and 1/2" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-986885 | Description: Screw, Fill. Hd. Mach. #4-40NC x 5/8 (1/4" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-986992 | Description: Screw, Fill. Hd. Mach. #10-24NC x 5/8 (3/8 and 1/2" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-993154 | Description: Washer, Lock #4 Std. (1/4" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-993196 | Description: Washer, Lock #10 Std. (3/8 and 1/2" File Guides) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 106-093073 | Description: Insert (090-274879, 090-340969) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093032 | Description: Insert (090-274903, 090-340993) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093016 | Description: Insert (090-274887, 090-340977) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093057 | Description: Insert (090-274911, 090-341033) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093099 | Description: Insert (090-274895, 090-340985) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093115 | Description: Insert (090-274929, 090-341041) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 106-093081 | Description: File Guide (090-274879, 090-340969) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093040 | Description: File Guide (090-274903, 090-340993) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093024 | Description: File Guide (090-274887, 090-340977) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093065 | Description: File Guide (090-274911, 090-341033) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093107 | Description: File Guide (090-274895, 090-340985) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106-093123 | Description: File Guide (090-274929, 090-341041) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-013715 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 134-093129 | Description: File Guide Back-up (080-447808, 081-119489, 081-327736, 084-049949, 080-447815) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-109314 | Description: File Guide Back-up (080-485328, 084-014389) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 134-090018 | Description: Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-038019 | Description: Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-038027 | Description: Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-106279 | Description: Center Plate (080-447808, 081-119489, 030-485328, 084-014389) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-201285 | Description: Center Plate (081-327736, 084-049949) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 134-093137 | Description: Guide Plate (090-274903, 090-340993) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-094028 | Description: Pin (090-274903, 090-340993) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 081-069577 | Description: Band Polishing Assembly (1611-H, 1611-U, 1612, 1612-0, 1612-1, 1612-H, 2012-A, 2012-1A, 2012-AT, 2012-1AT, 2012-1H, 2012-2A, 2013, 2013-10, 2013-1, 2013-0, 2013-2, 2013-20, 2013-U, 2612-1, 2013-V, 2612-H, 3612, 3613-0, 3612-U, 3612-1, 3613-1, 3612-H, 3612 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-290230 | Description: Band Polishing Assembly (16-2, 16-3, 1613-2, 1612-3, 36-2, 36-3, 2613-2, 3613-2, 3612-3, 60-3, 6013-3) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 090-274853 | Description: Band Polishing Assembly (26-2, 2612-2H, 2613-3, 60-2, 6013-2) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-166869 | Description: Band Polishing Sub Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-986968 | Description: Screw, Fil. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 090-274127 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 106-103013 | Description: Back-Up Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 134-105055 | Description: Back-Up Cloth | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 134-104025 | Description: Guide Back-Up | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 134-090018 | Description: Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-038019 | Description: Head | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-038027 | Description: Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-013715 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 090-105701 | Description: Center Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
