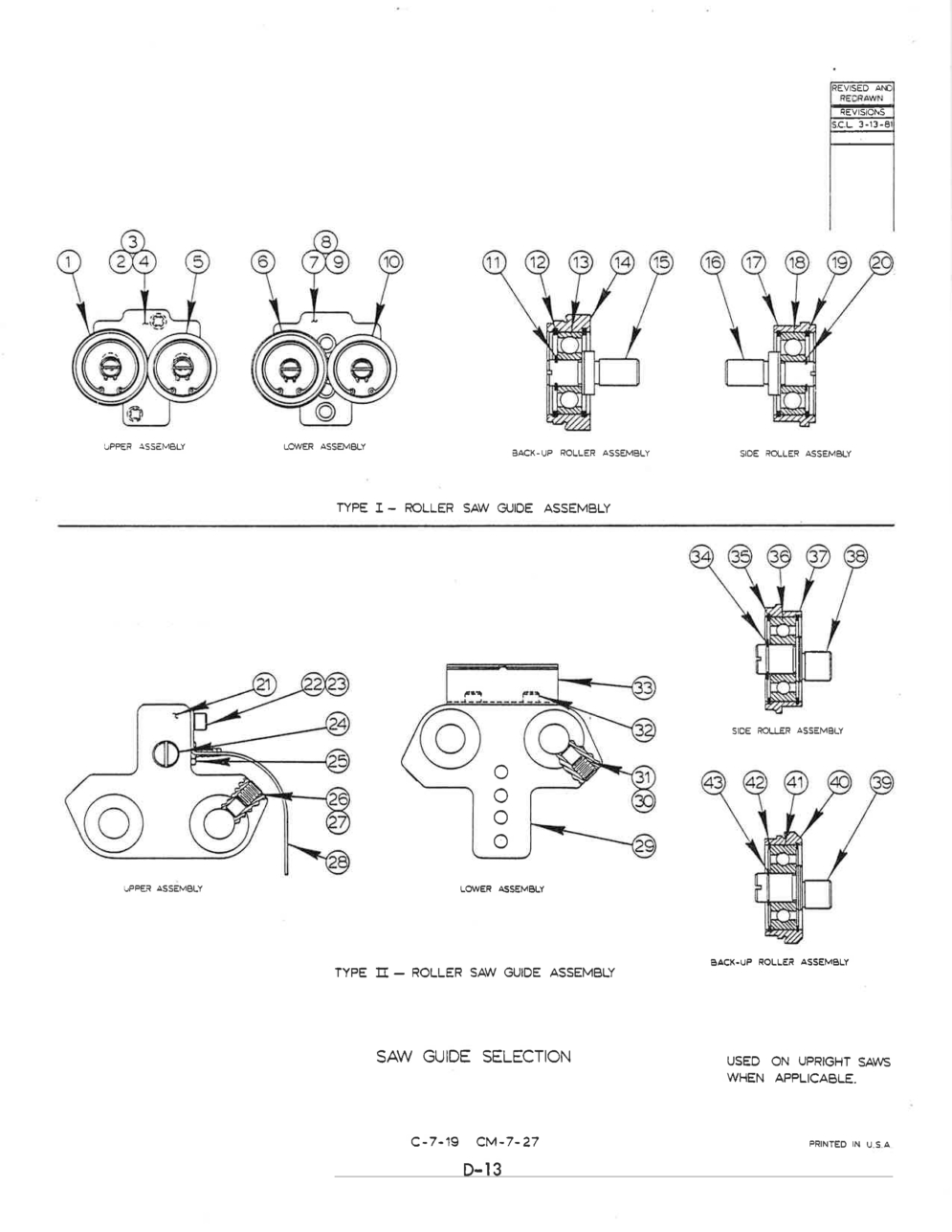

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-7-19
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: | Part Number: | Description: TYPE I - ROLLER SAW GUIDE ASSEMBLY | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292566 | Description: 1/4" Upper Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292582 | Description: 3/8" Upper Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-295064 | Description: 1/2" Upper Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: See Below | Description: Back-up Roller Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-289604 | Description: Upper Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-982397 | Description: Screw, Soc. Hd. Cap 1/4 - 2ONC x3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: See Below | Description: Side Roller Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292574 | Description: 1/4" Lower Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-292590 | Description: 3/8" Lower Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-295056 | Description: 1/2" Lower Roller Saw Guide Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: See Below | Description: Back-up Roller Assembly (See Detail). | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-289612 | Description: Lower Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-982397 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: See Below | Description: Side Roller Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: ROLLER ASSEMBLIES | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289828 | Description: 1/4" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289786 | Description: 3/8" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289760 | Description: 1/2" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 12 | Part Number: 091-000463 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.31 |
| Index No Ref.: 13 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 14 | Part Number: 090-289836 | Description: 1/4" Back-up Roller | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 090-289794 | Description: 3/8" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289778 | Description: 1/2" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 090-182965 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289844 | Description: 1/4" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289802 | Description: 3/8" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289745 | Description: 1/2" Side Rol ler Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-182965 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-289851 | Description: 1/4" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289810 | Description: 3/8" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-289752 | Description: 1/2" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 19 | Part Number: 091-000463 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.31 |
| Index No Ref.: 20 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: TYPE II- ROLLER SAW GUIDE ASSEMBLY | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-095174 | Description: Upper Saw Guide Block Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-335175 | Description: Upper Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 24 | Part Number: 090-335092 | Description: Coolant Nozzle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-984484 | Description: Screw, Soc. Set 3/8 -16 NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 090-017419 | Description: Plug | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-336363 | Description: Coolant Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-317982 | Description: Cloth Bag (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-172156 | Description: Lower Saw Guide Block Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 090-277435 | Description: Lower Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-984492 | Description: Screw, Soc. Set 3/8 -16 NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-017419 | Description: Plug | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-982355 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 33 | Part Number: 090-021403 | Description: Chip Deflector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-317982 | Description: Cloth Bag (Not Shown) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-207994 | Description: 1/4" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-208075 | Description: 3/8" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-202920 | Description: 1/2" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-210725 | Description: 5/8" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-202938 | Description: 3/4" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: *REF. | Part Number: 090-289679 | Description: 1" Side Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 36 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 090-135310 | Description: 1/4" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135401 | Description: 3/8" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135336 | Description: 1/2" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135427 | Description: 5/8" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135351 | Description: 3/4" Side Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-007583 | Description: 1" Side Roller | Units Per Assembly: 1 | Availability: In Stock | Price: $289.41 |
| Index No Ref.: 38 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-207986 | Description: 1/4" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-208083 | Description: 3/8" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-202953 | Description: 1/2" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-210717 | Description: 5/8" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-202961 | Description: 3/4" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-289687 | Description: 1" Back-up Roller Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 090-135302 | Description: Spindle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 090-135328 | Description: 1/4" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135419 | Description: 3/8" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135344 | Description: 1/2" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135435 | Description: 5/8" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-135369 | Description: 3/4" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-017575 | Description: 1" Back-up Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 090-017799 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 090-013038 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 43 | Part Number: 090-015686 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: To be used with flanged rubber-tired wheels using 1/4", 1/2", 3/4", or 1" bands Also used with steel flanged and rubber crowned wheels using 1" band only. | Units Per Assembly: | Availability: Call For Info | Price: |
