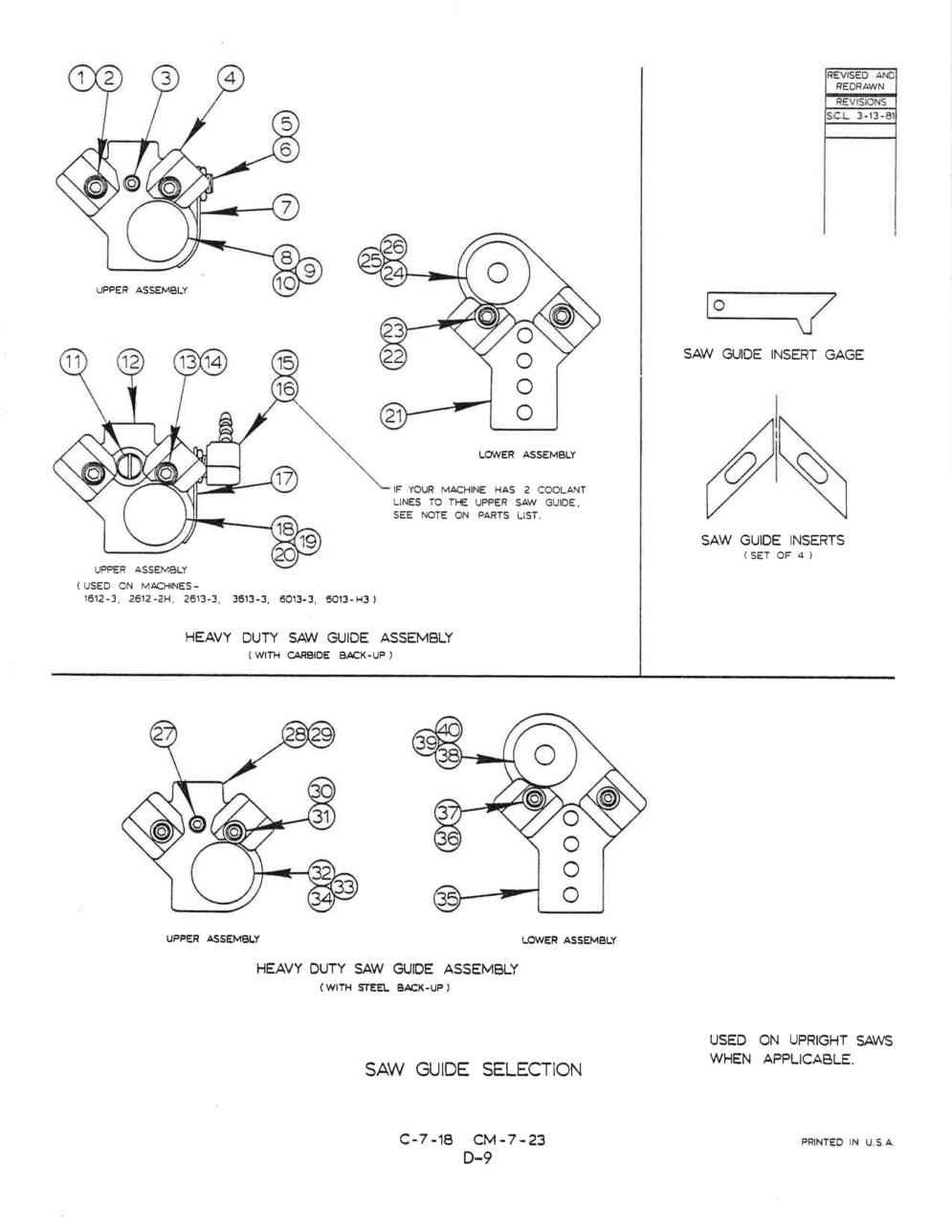

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-7-18
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: | Part Number: | Description: HEAVY DUTY SAW GUIDE ASSEMBLY (CARBIDE BACK-UP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-199182 | Description: Upper Saw Guide Assembly (1/16"-1/2") | Units Per Assembly: | Availability: In Stock | Price: $813.26 |
| Index No Ref.: REF. | Part Number: 090-178617 | Description: Upper Saw Guide Assembly (5/8" & 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 093-020112 | Description: Upper Saw Guide Assembly (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 2 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap1/4 - 2ONC x 5/8 (1/16"-1/2") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap1/4 - 2ONC x 1 (5/8" & 3/4",1") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/16 - 24 NF x1/2 (5/8" & 3/4",1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-380767 | Description: Upper Saw Guide Block (1/16"-1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252529 | Description: Upper Saw Guide Block (5/8" & 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252537 | Description: Upper Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-354415 | Description: Locknut (5/8" & 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-332023 | Description: Pipe Plug (5/8" & 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-183377 | Description: Guide Guard (5/8" & 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 9 | Part Number: 090-172180 | Description: Bearing Cap Assembly (Includes Carbide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: REF. | Part Number: 091-201194 | Description: Upper Saw Guide Assembly (1") (Used on 1612-3, 2612-2H, 2613-3, 3613-3, 6013-3, 6013-113, Instead of 093-030112) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-333092 | Description: Coolant Nozzle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-336314 | Description: Upper Saw Guide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 14 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-354415 | Description: Locknut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 0.16 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-183377 | Description: Guide Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 19 | Part Number: 090-172180 | Description: Bearing Cap Assembly (Includes Carbide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: *NOTE: If your machine has 2 coolant lines to the upper saw guide, delete #16, 091-08166 Barbed insert and order: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-094524 | Description: Swivel Joint | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-190017 | Description: Lower Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $1,210.00 |
| Index No Ref.: REF. | Part Number: 090-181686 | Description: Lower Saw Guide Assembly (5/8" to 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-177320 | Description: Lower Saw Guide Assembly (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-377383 | Description: Lower Saw Guide Block (1/16" - 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252586 | Description: Lower Saw Guide Block (5/8" & 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252578 | Description: Lower Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-982389 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x5/8 (1/16"- 1/2") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4 - 2O NC x 1(5/8" & 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4 - 2ONC x 1-1/4 (1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 24 | Part Number: 090-172180 | Description: Bearing Cap Assembly (Includes Carbide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 26 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: HEAVY DUTY SAW GUIDE ASSEMBLY (STEEL BACK-UP) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-201434 | Description: Upper Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $691.35 |
| Index No Ref.: REF. | Part Number: 090-115288 | Description: Upper Saw Guide Assembly (5/8" & 3/4") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 090-115304 | Description: Upper Saw Guide Assembly (1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-984450 | Description: Screw, Soc. Set 5/16 - 24 NF x 1/2 (5/8" & 3/4", 1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-380767 | Description: Upper Saw Guide Block (1/16"- 1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252529 | Description: Upper Saw Guide Block (5/8" & 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252537 | Description: Upper Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-203695 | Description: Pipe Plug (5/8" & 3/4" ,1") | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 31 | Part Number: 091-982447 | Description: Screw,So c. Hd. Cop 1/4-20 NC x1-1/4 (1/16" - 1/2" , 1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 1 (5/8" & 3/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 32 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 33 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 34 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: REF. | Part Number: 091-201426 | Description: Lower Saw Guide Assembly (1/16" - 1/2") | Units Per Assembly: | Availability: In Stock | Price: $728.88 |
| Index No Ref.: REF. | Part Number: 090-115437 | Description: Lower Saw Guide Assembly (5/8" & 3/4") | Units Per Assembly: | Availability: In Stock | Price: $467.59 |
| Index No Ref.: REF. | Part Number: 090-115429 | Description: Lower Saw Guide Assembly (1") | Units Per Assembly: | Availability: In Stock | Price: $526.03 |
| Index No Ref.: 35 | Part Number: 090-377383 | Description: Lower Saw Guide Block (1/16" -1/2") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252586 | Description: Lower Saw Guide Block (5/8" & 3/4") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-252578 | Description: Lower Saw Guide Block (1") | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-982447 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 1-1/4 (1/16" - 1/2", 1") | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x1 (5/8" & 1/4") | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 37 | Part Number: 134-085026 | Description: Insert Washer | Units Per Assembly: 2 | Availability: In Stock | Price: $1.42 |
| Index No Ref.: 38 | Part Number: 090-115296 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $5.51 |
| Index No Ref.: 39 | Part Number: 090-115403 | Description: Bearing Cap | Units Per Assembly: 1 | Availability: In Stock | Price: $62.98 |
| Index No Ref.: 40 | Part Number: 090-115411 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT GAUGE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 134-083203 | Description: Insert Gage (.025) | Units Per Assembly: | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: 173-083034 | Description: Insert Gage (.032) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 113-083075 | Description: Insert Gage (.035) | Units Per Assembly: | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: | Description: SAW GUIDE INSERT SELECTION (SET OF 4) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: STEEL SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044991 | Description: 1/16" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044983 | Description: 3/32" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-044975 | Description: 1/8" | Units Per Assembly: | Availability: In Stock | Price: $66.37 |
| Index No Ref.: | Part Number: 090-044967 | Description: 3/16" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-044959 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $22.79 |
| Index No Ref.: | Part Number: 090-039603 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039595 | Description: 1/2" | Units Per Assembly: | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 090-039587 | Description: 5/8" | Units Per Assembly: | Availability: In Stock | Price: $20.14 |
| Index No Ref.: | Part Number: 090-039579 | Description: 3/4" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: 090-039561 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $29.53 |
| Index No Ref.: | Part Number: | Description: CARBIDE SIZE | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-417593 | Description: 1/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-161688 | Description: 1/4" | Units Per Assembly: | Availability: In Stock | Price: $188.60 |
| Index No Ref.: | Part Number: 090-161704 | Description: 3/8" | Units Per Assembly: | Availability: In Stock | Price: $186.26 |
| Index No Ref.: | Part Number: 090-132911 | Description: 1/2" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 09 1-058941 | Description: 5/8" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-132929 | Description: 3/4" | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-089822 | Description: 1" | Units Per Assembly: | Availability: In Stock | Price: $224.32 |
