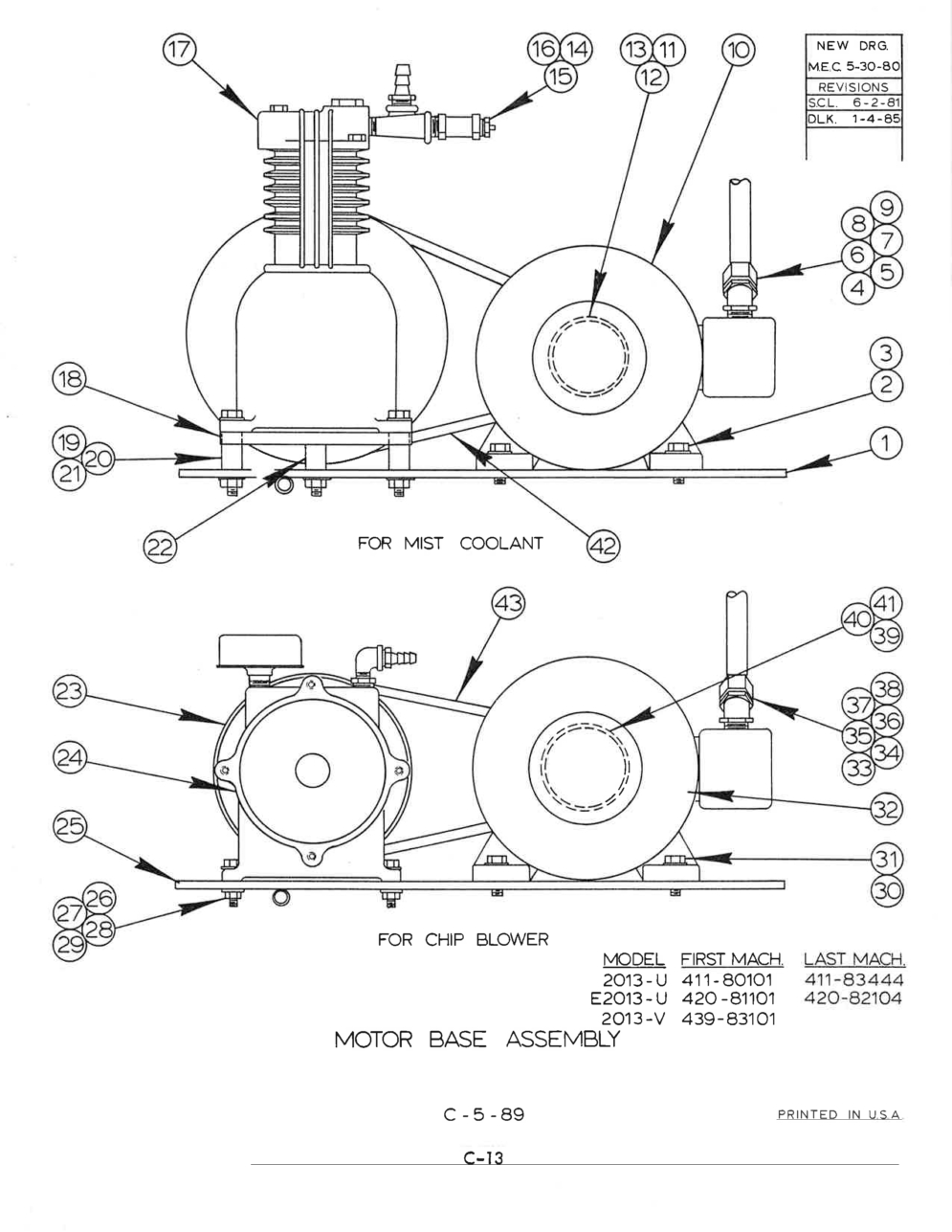

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-5-89
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: REF. | Part Number: 091-641076 | Description: Motor Base Assembly (Mist Coolant - Standard) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-552174 | Description: Motor Base Assembly (Mist Coolant - Europa) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-548925 | Description: Motor Base Assembly (Mist Coolant - Nena) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 094-105624 | Description: Base Plate Weldment (Standard and Nema) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-107224 | Description: Base Plate Weldment (Europa) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980292 | Description: Screw, Hex. Hd. Cap 5/16 - 18 NC x 1 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993014 | Description: Washer, Flat 5/16 Wrought | Units Per Assembly: 11 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-145053 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-145079 | Description: 45 Degree Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-971564 | Description: Sealtite Conduit 1/2" | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.70 |
| Index No Ref.: 8 | Part Number: 091-971853 | Description: Wire, #12 Black (Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-971861 | Description: Wire, ! 12 Flamenal Green w/yellow. Motor (Specify Make, Model, H.P., RPM, Voltage, Cycle, & Phase) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: | Description: Motor (Specify Make, Model, H.P., RPM, Voltage, Cycle, & Phase | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 105-053169 | Description: Drive Motor Key (Standard and NEMA only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-984252 | Description: Screw, Soc. Set 1/4 - 20 NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 093-088243 | Description: Pulley (Standard - 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-111441 | Description: Pulley (Europa - 50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-118205 | Description: Pulley (NEMA - 50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 135-008472 | Description: Service Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-180885 | Description: Safety Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-020041 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *17 | Part Number: 094-019577 | Description: Air Compressor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-211631 | Description: Plate Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980342 | Description: Screw, Hex. Hd. Cap 5/16 - 18 NC x 2-1/2. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-991224 | Description: Nut, Hex. 5/16 - 18 NC | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-211607 | Description: Spacer | Units Per Assembly: 2 | Availability: In Stock | Price: $26.82 |
| Index No Ref.: 22 | Part Number: 091-211615 | Description: Spacer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 135-003402 | Description: V-Belt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: * NOTE: Order Air Compressor Parts From Manufacturer - B. L. Smith and Sons, Model #28. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-641068 | Description: Motor Base Assembly (Chip Blower - Standard) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-552166 | Description: Motor Base Assembly (Chip Blower - Europa) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: REF. | Part Number: 091-548917 | Description: Motor Base Assembly (Chip Blower - NEMA) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 105-113161 | Description: Pulley | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-427089 | Description: Air Pump Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 094-105624 | Description: Base Plate Weldment (Standard and NEMA) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-107224 | Description: Base Plate Weldment (Europa) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-980110 | Description: Screw, Hex. Hd. Cap 1/4 - 20 NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-992602 | Description: Washer, Flat 1/4 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 091-991158 | Description: Nut, Hex. 1/4 - 20 NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-980292 | Description: Screw, Hex. Hd. Cap 5/16 - 18 NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-993014 | Description: Washer, Flat 5/16 Weldment | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: | Description: Motor (Specify Make, Model, H.P., RPM, Voltage, Cycle, and Phase) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 090-145053 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 090-145079 | Description: 45 Degree Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-971564 | Description: Sealtite Conduit 1/2" | Units Per Assembly: 1 | Availability: In Stock | Price: $6.70 |
| Index No Ref.: 37 | Part Number: 091-971853 | Description: Wire, #12 Black (Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-971861 | Description: Wire, #12 Flamenal Green w/yellow | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 105-053169 | Description: Drive Motor Key (Standard and NEMA only) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-984252 | Description: Screw, Soc. Set 1/4 - 20 NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 093-088243 | Description: Pulley (Standard - 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-111441 | Description: Pulley (Europa - 50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-118205 | Description: Pulley (NEMA - 50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 135-027985 | Description: V-Belt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
