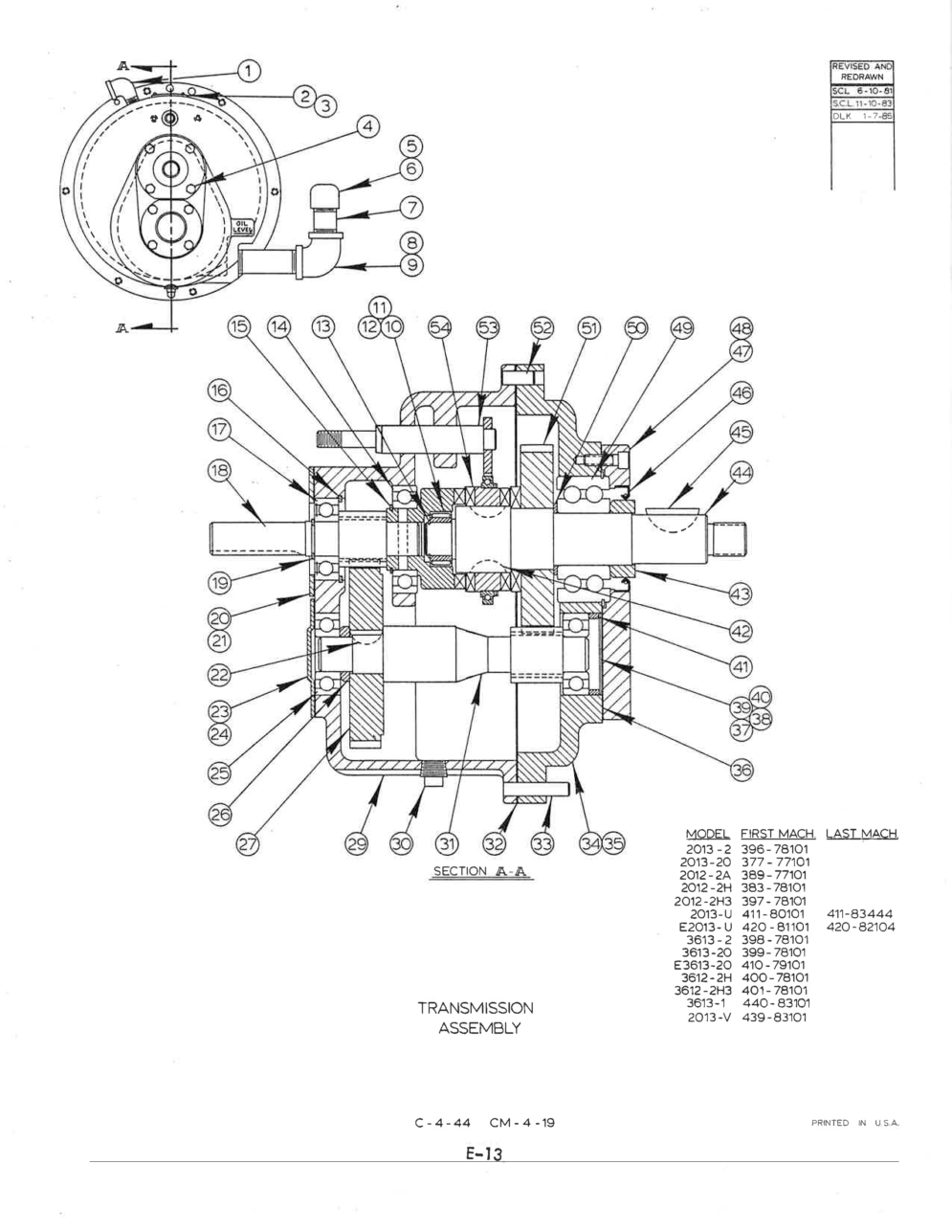

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-4-44
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-068276 | Description: Transmission Assembly | Units Per Assembly: | Availability: In Stock | Price: $4,532.03 |
| Index No Ref.: 1 | Part Number: 117-135210 | Description: 90 Degree Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-601492 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993964 | Description: Screw, Rd. lid. Mach. #2 x 3/16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-980052 | Description: Screw, Hex. Hd. Cap 1/4-20NC x3/8 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-110693 | Description: Pipe Cap (3/4" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-060088 | Description: Pipe Cap (1/2" N'T) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-384420 | Description: Gear Oil (Not Shown) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-059056 | Description: Pipe Nipple (3/4" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-052580 | Description: Pipe Nipple (1/2" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 105-046171 | Description: 90 Degree Elbow (3/4" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 114-003486 | Description: 90 Degree Elbow (1/2" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-135277 | Description: Pipe Nipple (3/4" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-052580 | Description: Pipe Nipple (1/2" NPT) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-645481 | Description: Needle Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-645473 | Description: Inner Race | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-433912 | Description: Grease (Union 76 Unoba EP 2) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-116921 | Description: Snap Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-022732 | Description: Ball Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 135-075380 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 135-081891 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-001222 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 093-073435 | Description: Input Shaft Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-317371 | Description: Input Shaft and Clutch | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-042839 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: | Part Number: 093-073443 | Description: Clutch | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 135-086643 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 20 | Part Number: 091-056887 | Description: Cover Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-056895 | Description: Gasket | Units Per Assembly: I | Availability: In Stock | Price: $9.67 |
| Index No Ref.: 22 | Part Number: 105-046023 | Description: Woodruff Key | Units Per Assembly: 1 | Availability: In Stock | Price: $2.79 |
| Index No Ref.: 23 | Part Number: 105-043038 | Description: Countershaft Bearing Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 105-043095 | Description: Gasket | Units Per Assembly: 1 | Availability: In Stock | Price: $1.39 |
| Index No Ref.: 25 | Part Number: 091-085571 | Description: Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-032359 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 105-044242 | Description: Gear | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 090-548710 | Description: Transmission Case | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-521575 | Description: Magnetic Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 093-136810 | Description: Countershaft and Pinion | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 105-043111 | Description: Gasket | Units Per Assembly: 1 | Availability: In Stock | Price: $3.76 |
| Index No Ref.: 33 | Part Number: 090-131228 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *34 | Part Number: 095-068284 | Description: Transmission Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-982579 | Description: Screw, Soc. Hd. Cap 5/16-18NC x5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 093-073419 | Description: Gasket | Units Per Assembly: 1 | Availability: In Stock | Price: $2.03 |
| Index No Ref.: 37 | Part Number: 091-520858 | Description: Shim (.005) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-520864 | Description: Shim (.010) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-520876 | Description: Shim (.032) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-520882 | Description: Shim (.060) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-476226 | Description: Bearing Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 135-071926 | Description: Woodruff Key | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 43 | Part Number: 091-475210 | Description: Seal Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 094-086378 | Description: Output Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 105-046049 | Description: Woodruff Key | Units Per Assembly: 1 | Availability: In Stock | Price: $2.35 |
| Index No Ref.: 46 | Part Number: 091-475244 | Description: Oil Seal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 094-086410 | Description: Bearing Cover Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-982397 | Description: Screw, Soc. Hd. Cap 1/4-20NC x3/4 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 091-475236 | Description: Ball Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-475228 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 106-044217 | Description: Clutch Gear | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 135-004430 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-114496 | Description: Shifter Fork Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-114462 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-114454 | Description: Tab | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-114470 | Description: Yoke | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-114512 | Description: Shifter Clutch Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-486218 | Description: Shifter Clutch | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-114504 | Description: Ball Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-042094 | Description: Roll Pin | Units Per Assembly: 3 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: *NOTE: When Ordering Transmission Cover, Order 1/2" NPT Fittings - Item #5, 7, 8, 9 Also If You Have 3/4"NPT Fittings | Units Per Assembly: | Availability: Call For Info | Price: |
