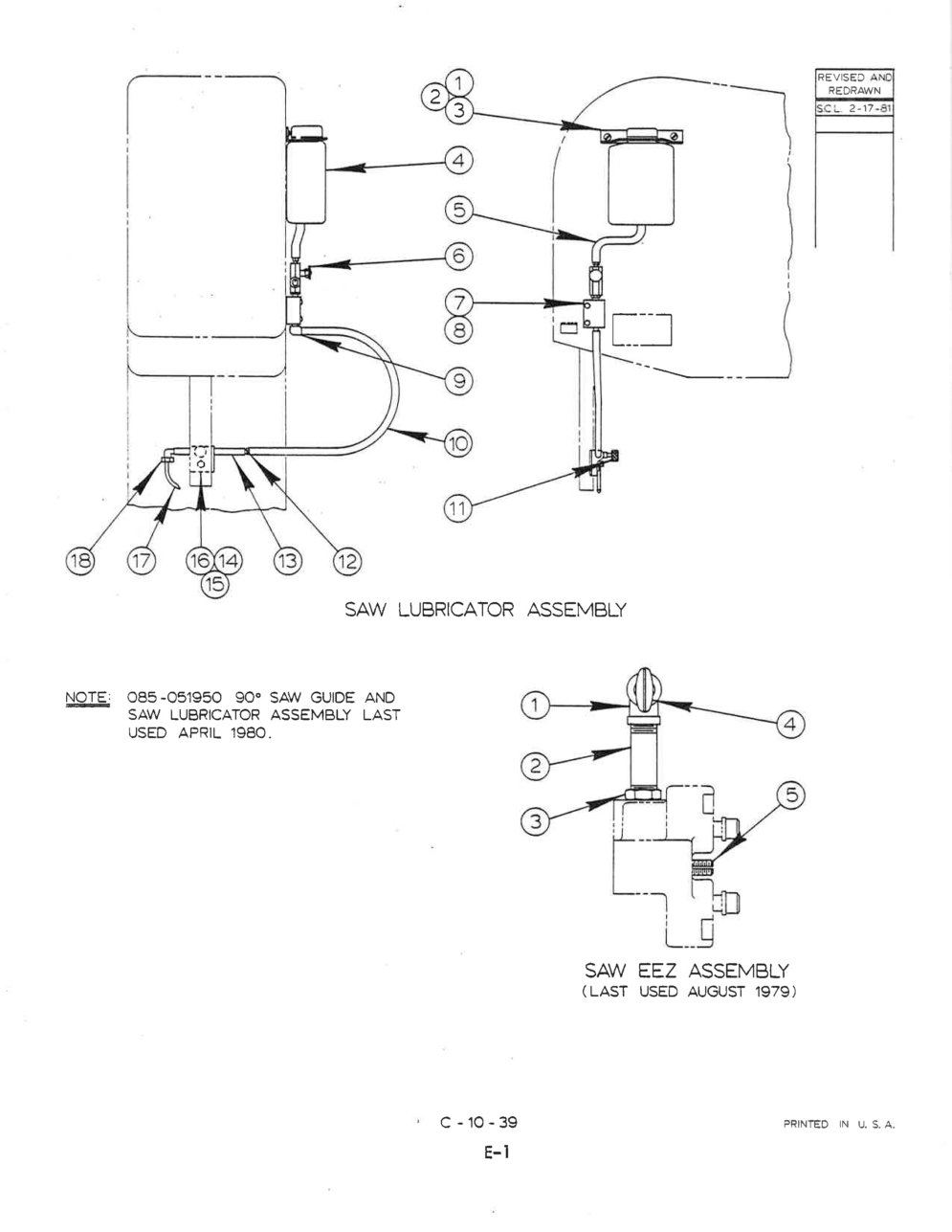

Exploded View Parts Ordering: E2013-U_420
E2013-U 420 Online Parts Manual
Serial No: 420-81101 End Date 420-82104
Page Code: C-10-39
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 135-073286 | Description: Saw Lubricator Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 085-028124 | Description: Saw Lubricator Assembly (2612-1 Only) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 085-051951 | Description: 90 Degree Saw Guide and Saw Lubricator Assembly (Last Used April 1980) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-039568 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988931 | Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: *4 | Part Number: 091-369181 | Description: Bottle Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-971440 | Description: Plastic Tubing 3/8 O.D. | Units Per Assembly: A. R . | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 6 | Part Number: 105-275077 | Description: Sight Feed Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 090-120643 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-988782 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-081166 | Description: 90 Degree Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-971440 | Description: Plastic Tubing 3/8 O.D. | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 11 | Part Number: 134-174010 | Description: Thumb Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 090-160011 | Description: Barbed Insert | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-213108 | Description: Adjustable Slide Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 105-271027 | Description: Post Lubricator Holder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-980268 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-971192 | Description: Copper Tubing 3/16 I.D | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 093-090520 | Description: 90 Degree Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 090-448044 | Description: 90 Degree Saw Guide Assembly (See Detail)(085-051951 Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE To Replace Other Preceding Style Coolant Tanks, Metal or Plastic, Order 090-851577, Coolant Tank Service Kit. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 080-310444 | Description: Saw EEZ Assembly (Last Used August 1979) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 135-036473 | Description: 90 Degree Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 135-013514 | Description: Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 107-151045 | Description: Pipe Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 135-081495 | Description: Saw EEZ (Supplied by DoALL Company) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 135-004513 | Description: Saw Lubricator Pin (Bands 1/16" to 1/2") | Units Per Assembly: USE | Availability: In Stock | Price: $54.97 |
| Index No Ref.: | Part Number: 135-004554 | Description: Saw Lubricator Pin (Bands 5/8" to 1") | Units Per Assembly: ONE | Availability: Call For Info | Price: |
