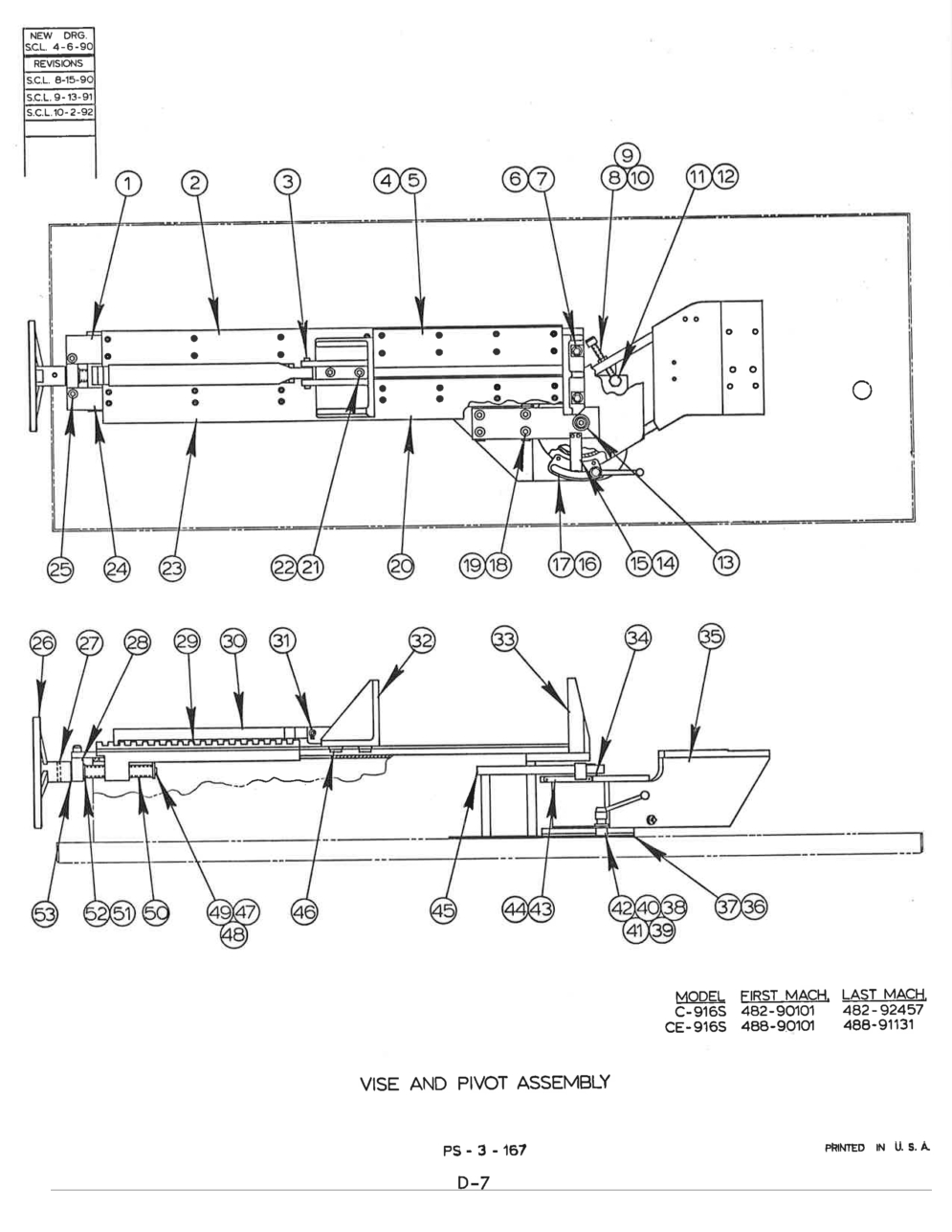

Exploded View Parts Ordering: CE-916S_488
CE-916S 488 Online Parts Manual
Serial No: 488-90101 End Date 488-91131
Page Code: PS-3-167
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-146312 | Description: Vise and Pivot Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-175297 | Description: Back Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 093-169118 | Description: Back Extended Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-795799 | Description: Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $29.53 |
| Index No Ref.: 4 | Part Number: 093-176634 | Description: Back Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-998138 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (Low Head) | Units Per Assembly: 32 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-998526 | Description: Screw, Soc. Hd. Cap 5/8-18NF x 2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-214734 | Description: Washer, Lock 5/8 Hi-Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-981944 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 2-1/2 (Bottom Hole) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-991273 | Description: Nut, Hex. Jam 318-16NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-982876 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 (Top Hole) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-981035 | Description: Screw, Hex. Hd. Cap 5/8-11NC x 2-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-991364 | Description: Nut, Hex. Jam 5/8-11NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-778175 | Description: Pivot Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 093-169134 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 16 | Part Number: 093-176645 | Description: Pivot Clamp Plate | Units Per Assembly: 1 | Availability: In Stock | Price: $49.62 |
| Index No Ref.: 17 | Part Number: 091-983668 | Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-982934 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-000901 | Description: Washer, Lock 1/2 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 093-169217 | Description: Front Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 093-169100 | Description: Front Extended Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 093-175230 | Description: Front Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-982942 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: *26 | Part Number: 093-139970 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *27 | Part Number: 090-042771 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: *28 | Part Number: 093-146447 | Description: Bearing Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 094-141017 | Description: Rack | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 093-148847 | Description: Pawl | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 135-096139 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 32 | Part Number: 095-141172 | Description: Movable Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 095-141214 | Description: Fixed Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 090-184672 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 095-146288 | Description: Pivot Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-759159 | Description: Bearing Disc | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-046540 | Description: Roll Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: **38 | Part Number: 092-019132 | Description: Clamp Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $42.89 |
| Index No Ref.: | Part Number: 092-019124 | Description: Stud 1/2-13 | Units Per Assembly: 1 | Availability: In Stock | Price: $6.30 |
| Index No Ref.: 39 | Part Number: 091-785485 | Description: Hardened Flat Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-785477 | Description: Clamp Support Spacer | Units Per Assembly: 1 | Availability: In Stock | Price: $20.14 |
| Index No Ref.: 41 | Part Number: 091-334706 | Description: Spacer (.0149) | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.98 |
| Index No Ref.: 42 | Part Number: 091-334714 | Description: Spacer (.0299) | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.36 |
| Index No Ref.: 43 | Part Number: 093-169142 | Description: Pivot Angle Indicator | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 44 | Part Number: 091-994004 | Description: Screw, Rd. Hd. Drive #6 x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 094-160488 | Description: Pivot Support Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-707406 | Description: Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 48 | Part Number: 090-035593 | Description: Washer, Lock 1/4 Hi-Collar | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 49 | Part Number: 091-099937 | Description: Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $3.26 |
| Index No Ref.: *50 | Part Number: 093-148997 | Description: Vise Lock Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *51 | Part Number: 091-767590 | Description: Hardened Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: *52 | Part Number: 091-087494 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $10.17 |
| Index No Ref.: *53 | Part Number: 091-042846 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $9.22 |
| Index No Ref.: | Part Number: | Description: *NOTE: Items Marked Used On Assembly #091-795914 Handwheel and Screw Sub-Assembly with Mounting Hardware. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: Item #38 Was #093-176600 Before Serial #482-92308 on C-916S and On All CE-916S Models. | Units Per Assembly: | Availability: Call For Info | Price: |
