Exploded View Parts Ordering: C-916_438
C-916 438 Online Parts Manual
Serial No: 438-83101 End Date 438-882157

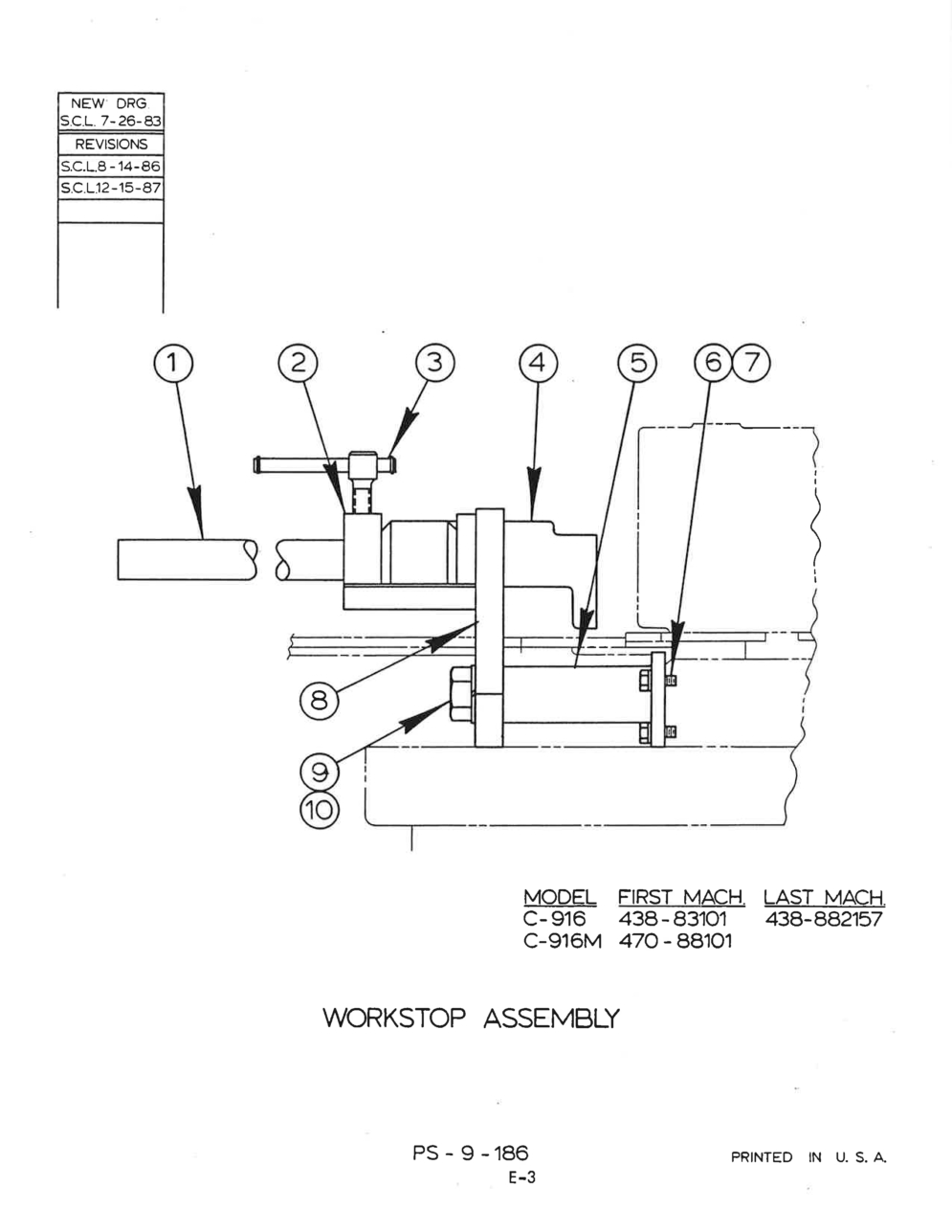

Page Code: PS-9-186
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 083-141424 | Description: Workstop Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-101451 | Description: Pipe | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-101568 | Description: Collar Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-133232 | Description: Lock Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-133224 | Description: Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-133216 | Description: Lock Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-310144 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-338260 | Description: Workstop Casting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 093-154904 | Description: Arm Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-980086 | Description: Screw, Hex, Hd. Cap 1/4-20NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 091-101469 | Description: Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-980912 | Description: Screw, Hex. Hd. Cap 3/4-10NC x 2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-993295 | Description: Washer, Lock 3/ 4 Std | Units Per Assembly: 1 | Availability: Call For Info | Price: |
