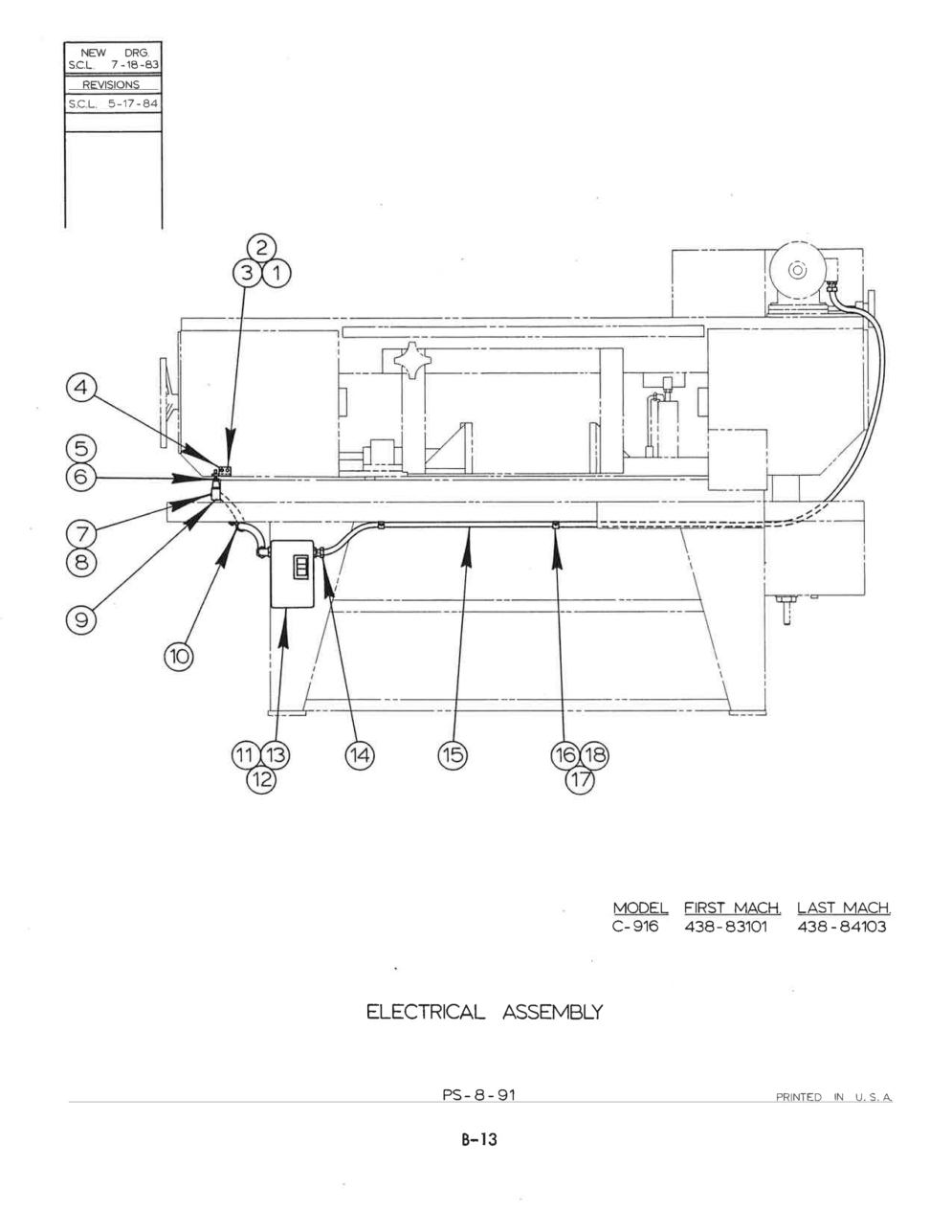

Exploded View Parts Ordering: C-916_438
C-916 438 Online Parts Manual
Serial No: 438-83101 End Date 438-882157
Page Code: PS-8-91
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-117206 | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-993204 | Description: Washer, Lock #10 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 091-991125 | Description: Nut, Hex. #10-24NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-118844 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-340976 | Description: Actuator | Units Per Assembly: 1 | Availability: In Stock | Price: $1.53 |
| Index No Ref.: 6 | Part Number: 091-991448 | Description: Nut, Hex. Jam 7/8-9NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-988485 | Description: Screw, Rd. Hd. Mach. #6-32NC x 1-3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-993170 | Description: Washer, Lock #6 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 093-129856 | Description: Limit Switch Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 090-165606 | Description: Cable Hanger Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-591560 | Description: Manual Starter (115V;60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651539 | Description: Manual Starter (208V;60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-591594 | Description: Manual Starter (230V;60 Hz w/1 Overload) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651547 | Description: Manual Starter (230V;60 Hz w/3 Overloads) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651554 | Description: Manual Starter (380V;50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651562 | Description: Manual Starter (415V;50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651570 | Description: Manual Starter (460V;60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-651588 | Description: Manual Starter (575V;60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-047704 | Description: Ground Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 090-137427 | Description: Terminal | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-447995 | Description: Cord Grip Connector | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-972273 | Description: Conductor Cord (#10-4 R/C Wire) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-165598 | Description: Cable Hanger Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-993204 | Description: Washer, Lock #10 Std | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
