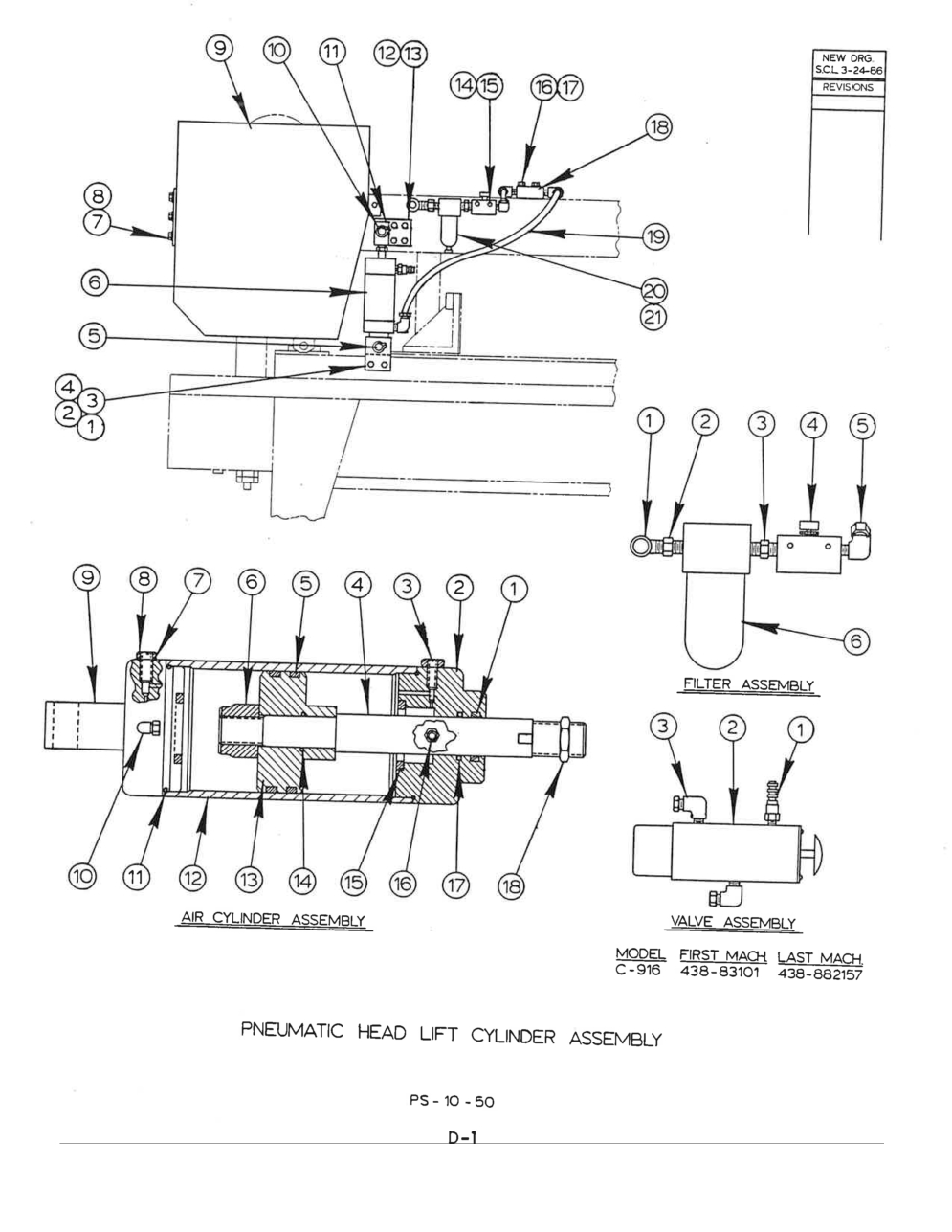

Exploded View Parts Ordering: C-916_438
C-916 438 Online Parts Manual
Serial No: 438-83101 End Date 438-882157
Page Code: PS-10-50
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 085-131761 | Description: Pneumatic Head Lift Cylinder Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 085-131753 | Description: Pneumatic Head Lift Cylinder Assembly (Retrofit) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-154268 | Description: Frame | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-980284 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-983940 | Description: Screw, Flat Hd. Soc 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-728048 | Description: Bottom Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-153674 | Description: Air Cylinder Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-980060 | Description: Screw, Hex. Hd. Cap 1/4-20NC x1/2(Retrofit) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. (Retrofit) | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 095-114831 | Description: Cover Weldment (Retrofit) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 135-064269 | Description: Retaining Ring | Units Per Assembly: 3 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 11 | Part Number: 091-728055 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-154250 | Description: Frame | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-980300 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-988618 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-993717 | Description: Washer, Lock #8 Shakeproof Ext | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-980128 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1-1/2 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 18 | Part Number: 091-728774 | Description: Valve Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-971416 | Description: Nylon Tubing 1/4 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-728063 | Description: Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 093-154391 | Description: Filter Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 093-154391 | Description: Filter Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 117-135210 | Description: 90° Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-728105 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-728113 | Description: Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-728097 | Description: Variable Orifice | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-728121 | Description: 90° Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-728071 | Description: Air Filter | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-728774 | Description: Valve Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-728089 | Description: Exhaust Silencer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-728709 | Description: Hand Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-728121 | Description: 90° Male Elbow | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 093-153674 | Description: Air Cylinder Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-728741 | Description: Rod Wiper | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 094-144425 | Description: Rod End Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-728006 | Description: Adjusting Screw 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-728022 | Description: Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-728725 | Description: Piston Seal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-728014 | Description: Rod Nut 3/4-16NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-728675 | Description: O-Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-727990 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 094-142296 | Description: End Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-728121 | Description: 90° Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-728667 | Description: O-Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-154235 | Description: Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 093-154243 | Description: Piston | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-728642 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-728733 | Description: Seal | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-728089 | Description: Exhaust Silencer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-728659 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-991455 | Description: Nut, Hex. Jam 7/8-14NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
