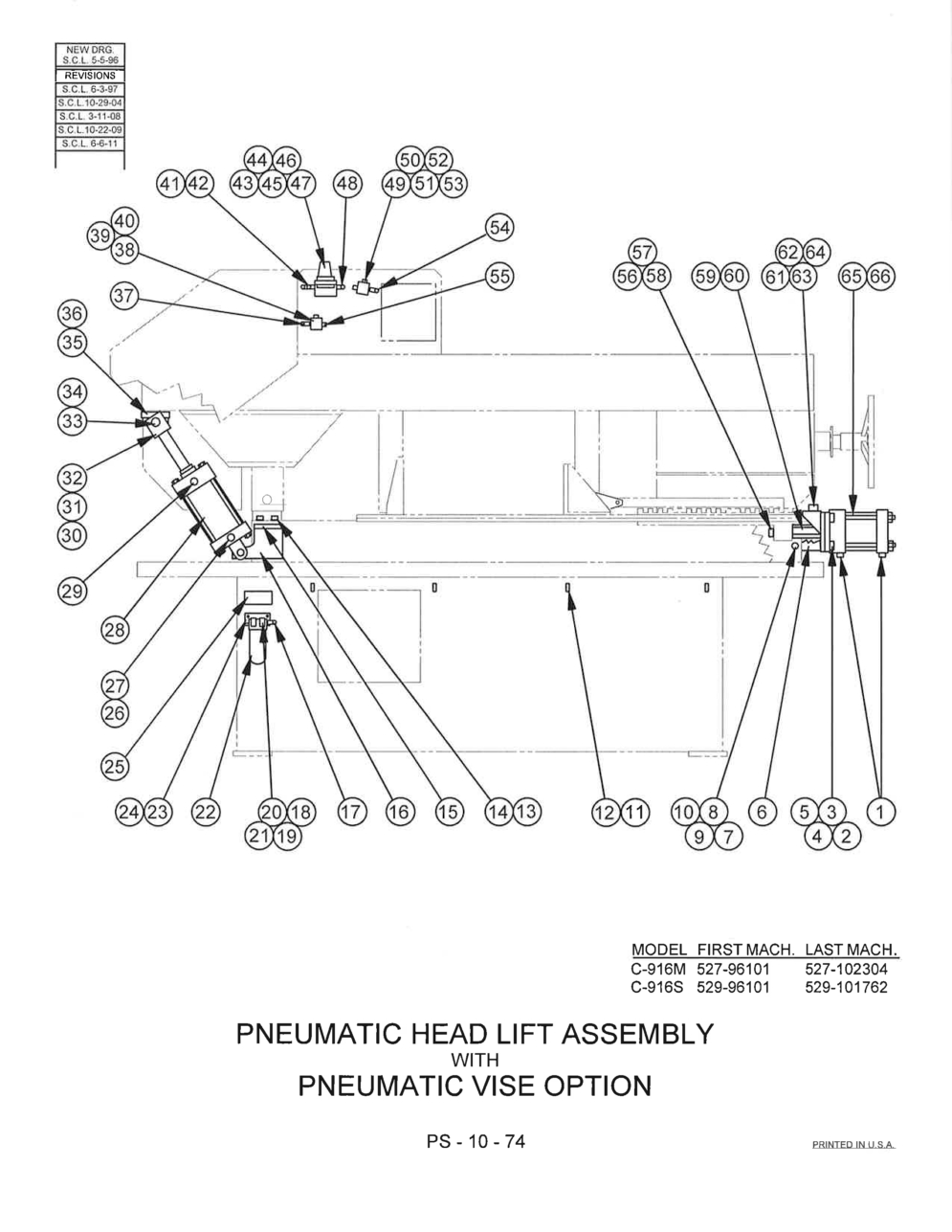

Exploded View Parts Ordering: C-916S_529
C-916S 529 Online Parts Manual
Serial No: 529-96101 End Date 529-101762
Page Code: PS-10-74
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 517263 | Description: Pneumatic Head Lift Assembly with Pneumatic Vise Option (C-916M) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 517494 | Description: Pneumatic Head Lift Assembly with Pneumatic Vise Option (C-916S) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 200133 | Description: Male Connector | Units Per Assembly: 2 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: 2 | Part Number: 199921 | Description: Screw, Soc. Hd. Cap M10-1.5 x 45 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 198976 | Description: Washer, Flat M10 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 199346 | Description: Washer, Lock M10 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 199939 | Description: Nut, Hex. M10-1.5 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 319327 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 199680 | Description: Screw, Soc. Hd. Cap M10-1.5 x 30 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 199346 | Description: Washer, Lock M10 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9 | Part Number: 198976 | Description: Washer, Flat M10 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 199939 | Description: Nut, Hex. M10-1.5 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 009955 | Description: Tube Clamp | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199299 | Description: Screw, Hex. Hd. Self-Drilling M4.8 x 13 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 199918 | Description: Screw, Soc. Hd. Cap M12-1.75 x 45 (C-916M) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 199742 | Description: Screw, Soc. Hd. Cap M12-1.75 x 35 (C-916S) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199345 | Description: Washer, Lock M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 204140 | Description: Spacer (C-916M Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 320605 | Description: Cylinder Mount Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $93.25 |
| Index No Ref.: 17 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 18 | Part Number: 206103 | Description: Tubing Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 199899 | Description: Screw, Button Hd. Soc. M6-1.0 x 16 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 20 | Part Number: 199347 | Description: Washer, Lock M6 (Some Machines) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 199188 | Description: Nut, Hex. M6 x 1.0 (Some Machines) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 22 | Part Number: 217843 | Description: Air Filter (Parker) | Units Per Assembly: 1 | Availability: In Stock | Price: $150.44 |
| Index No Ref.: | Part Number: 206111 | Description: Air Filter (ARO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 217844 | Description: Filter Element (Parker) | Units Per Assembly: 1 | Availability: In Stock | Price: $67.01 |
| Index No Ref.: | Part Number: 206112 | Description: Filter Element (ARO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 324821 | Description: Filter Mounting Bracket (Parker) | Units Per Assembly: 1 | Availability: In Stock | Price: $24.12 |
| Index No Ref.: | Part Number: 320285 | Description: Filter Mounting Bracket (ARO) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199299 | Description: Screw, Hex. Hd. Self-Drilling M4.8 x 13 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 176879 | Description: Escutcheon (Air Supply) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.42 |
| Index No Ref.: 26 | Part Number: 203809 | Description: Right Angle Flow Control Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $93.30 |
| Index No Ref.: 27 | Part Number: 176811 | Description: Vent Filter Breather | Units Per Assembly: 1 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 28 | Part Number: 176228 | Description: Pneumatic Head Lift Cylinder | Units Per Assembly: 1 | Availability: In Stock | Price: $964.28 |
| Index No Ref.: 29 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 30 | Part Number: 316604 | Description: Pivot Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 198186 | Description: Screw, Hex. Hd. Cap 3/4-16NF x 1-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 202383 | Description: Adhesive (Loctite #242-31 Threadlock) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 179586 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 35-007558 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 179584 | Description: Mounting Block Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 199896 | Description: Screw, Soc. Hd. Cap M10-1.5 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 2 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 38 | Part Number: 206110 | Description: Pneumatic Valve (4-Way) | Units Per Assembly: 1 | Availability: In Stock | Price: $199.50 |
| Index No Ref.: 39 | Part Number: 176811 | Description: Vent Filter Breather | Units Per Assembly: 2 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 40 | Part Number: 199189 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 112043 | Description: Street Tee | Units Per Assembly: 1 | Availability: In Stock | Price: $12.50 |
| Index No Ref.: 42 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 43 | Part Number: 206114 | Description: Air Regulator | Units Per Assembly: 1 | Availability: In Stock | Price: $101.45 |
| Index No Ref.: 44 | Part Number: 200137 | Description: Gauge | Units Per Assembly: 1 | Availability: In Stock | Price: $44.26 |
| Index No Ref.: 45 | Part Number: 199974 | Description: Screw, Button Hd. Soc M5-0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 46 | Part Number: 320608 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $24.12 |
| Index No Ref.: 47 | Part Number: 206113 | Description: Panel Mounting Nut | Units Per Assembly: 1 | Availability: In Stock | Price: $8.21 |
| Index No Ref.: 48 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 49 | Part Number: 206109 | Description: Pneumatic Valve (3-Way) | Units Per Assembly: 1 | Availability: In Stock | Price: $372.54 |
| Index No Ref.: 50 | Part Number: 199189 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 51 | Part Number: 176811 | Description: Vent Filter Breather | Units Per Assembly: 1 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 52 | Part Number: 176880 | Description: Tag (Attention) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 200133 | Description: Male Connector | Units Per Assembly: 1 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: 54 | Part Number: 200135 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 55 | Part Number: 200133 | Description: Male Connector | Units Per Assembly: 1 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: 56 | Part Number: 199051 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 57 | Part Number: 199254 | Description: Washer, Lock M6 Hi-Collar | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 58 | Part Number: 109993 | Description: Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $3.26 |
| Index No Ref.: 59 | Part Number: 206894 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 199268 | Description: Washer, Flat 3/4 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 61 | Part Number: 320606 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 199918 | Description: Screw, Soc. Hd. Cap M12-1.75 x 45 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 199933 | Description: Nut, Hex. M12-1.75 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 199345 | Description: Washer, Lock M12 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 318130 | Description: Pneumatic Vise Clamp Cylinder | Units Per Assembly: 1 | Availability: In Stock | Price: $1,751.27 |
| Index No Ref.: 66 | Part Number: 199896 | Description: Screw, Soc. Hd. Cap M10-1.5 x 25 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 197438 | Description: Polyethylene Tubing 1/4 O.D. | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
