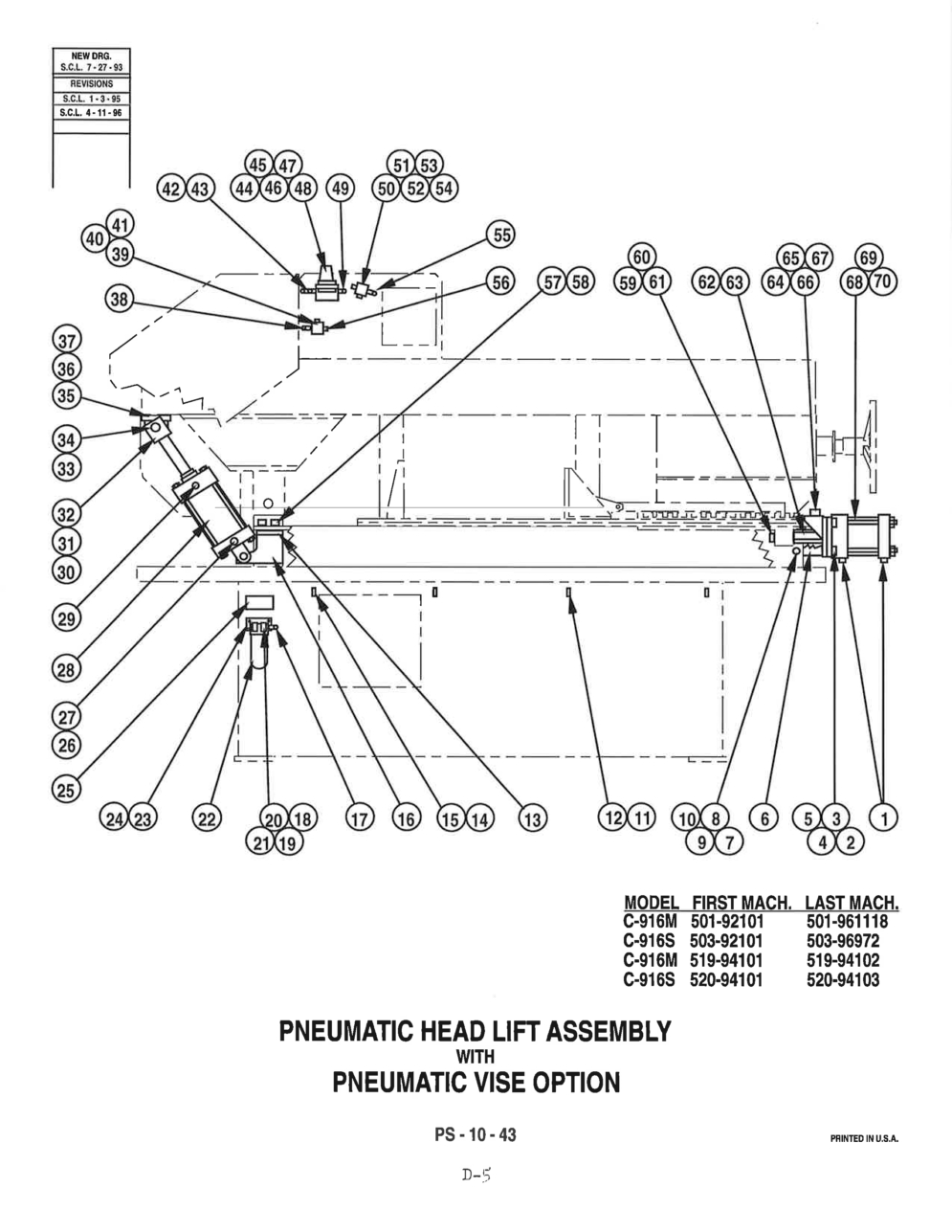

Exploded View Parts Ordering: C-916S_503
C-916S 503 Online Parts Manual
Serial No: 503-92101 End Date 503-96972
Page Code: PS-10-43
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 085-148229 | Description: Pneumatic Head Lift Assembly w/Pneumatic Vise Option (C-916M) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 085-148161 | Description: Pneumatic Head Lift Assembly w/Pneumatic Vise Option (C-916S) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-001338 | Description: Male Connector | Units Per Assembly: 2 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: | Part Number: 092-032200 | Description: Hex. Reducer Bushing (On Some Older Machines) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-982835 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-991265 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-193274 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-982801 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 091-991265 | Description: Nut, Hex. 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 090-099557 | Description: Tube Clamp | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-983460 | Description: Screw, Button Hd. Soc. #8-32NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 13* | Part Number: 092-041409 | Description: Spacer (C-916M Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 090-181728 | Description: Nylon Clamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-983460 | Description: Screw, Button Hd. Soc. #8-32NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16* | Part Number: 093-197051 | Description: Cylinder Mount Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 18 | Part Number: 092-061035 | Description: Tubing Clamp (1/2 Clip) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980060 | Description: Screw, Hex. Hd. 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 091-991158 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 092-061118 | Description: Air Filter | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-061126 | Description: Filter Element | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 093-202851 | Description: Filter Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-983460 | Description: Screw, Button Hd. Soc. #8-32NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-768796 | Description: Escutcheon (Air Supply) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 092-038090 | Description: Flow Control Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $93.30 |
| Index No Ref.: 27 | Part Number: 091-768119 | Description: Vent Filter Breather | Units Per Assembly: 1 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 28 | Part Number: 091-762286 | Description: Pneumatic Head Lift Cylinder | Units Per Assembly: 1 | Availability: In Stock | Price: $964.28 |
| Index No Ref.: 29 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: | Part Number: 092-032200 | Description: Hex. Reducer Bushing (On Some Older Machines) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 093-166049 | Description: Pivot Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-981860 | Description: Screw, Hex. Hd. Cap 3/4-16NF x 1-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-993295 | Description: Washer, Lock 3/4 Std | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-795864 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 135-075588 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 091-795849 | Description: Mounting Block Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-982801 | Description: Screw, Sec. Hd, Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 2 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 39 | Part Number: 092-061100 | Description: Pneumatic Valve (4-Way ) | Units Per Assembly: 1 | Availability: In Stock | Price: $199.50 |
| Index No Ref.: 40 | Part Number: 091-768119 | Description: Vent Filter Breather | Units Per Assembly: 2 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 41 | Part Number: 091-991893 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-120436 | Description: Street Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 44 | Part Number: 092-061142 | Description: Air Regulator | Units Per Assembly: 1 | Availability: In Stock | Price: $101.45 |
| Index No Ref.: 45 | Part Number: 092-001379 | Description: Gauge | Units Per Assembly: 1 | Availability: In Stock | Price: $44.26 |
| Index No Ref.: 46 | Part Number: 091-983460 | Description: Screw, Button Hd. Soc. #8-32NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 093-202844 | Description: Mounting Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $100.50 |
| Index No Ref.: 48 | Part Number: 092-061134 | Description: Panel Mounting Nut | Units Per Assembly: 1 | Availability: In Stock | Price: $8.21 |
| Index No Ref.: 49 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 50 | Part Number: 092-061092 | Description: Pneumatic Valve (3-Way) | Units Per Assembly: 1 | Availability: In Stock | Price: $372.54 |
| Index No Ref.: 51 | Part Number: 091-991893 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-768119 | Description: Vent Filter Breather | Units Per Assembly: 1 | Availability: In Stock | Price: $5.45 |
| Index No Ref.: 53 | Part Number: 091-768804 | Description: Tag (Attention) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 092-001338 | Description: Male Connector | Units Per Assembly: 1 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: 55 | Part Number: 092-001353 | Description: 90 Degrees Swivel Male Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $11.39 |
| Index No Ref.: 56 | Part Number: 092-001338 | Description: Male Connector | Units Per Assembly: 1 | Availability: In Stock | Price: $6.72 |
| Index No Ref.: 57 | Part Number: 091-982967 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-3/4 (C-916M) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982959 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/2 (C-916S) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 60 | Part Number: 090-035593 | Description: Washer, Lock 1/4 Hi-Collar | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 61 | Part Number: 091-099937 | Description: Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $3.26 |
| Index No Ref.: 62 | Part Number: 091-798827 | Description: Adaptor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-992685 | Description: Washer, Flat 3/4 S.A.E. Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 093-180909 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 091-982967 | Description: Screw, Soc. hd. Cap 1/2-13NC x 1-3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 091-991315 | Description: Nut, Hex. 1/2 -13NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 093-181303 | Description: Pneumatic Vise Clamp Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 091-983718 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar (If Supplied) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-974386 | Description: Polyethylene Tubing 1/4 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: Some Older Machines Had 90 Degrees Street Elbow - #091-209056; Hex Reducer Bushine - #092-052200; Hex. Nipple - #090-109232 in the Lower Port of Head Lift Cylinder. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Item #13 was #092-001536 and Item #16 was #093-181295 Before Serial #502-93361 on C-916M and #503-93311 on C-916S. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: Older Machines have "Bosch" Valves/Filters, To Replace Order #092-062322 Head Lift Valve Kit, #092-061118 Filter (ARO) and #092-061050 Filter Bracket Kit. | Units Per Assembly: | Availability: Call For Info | Price: |
