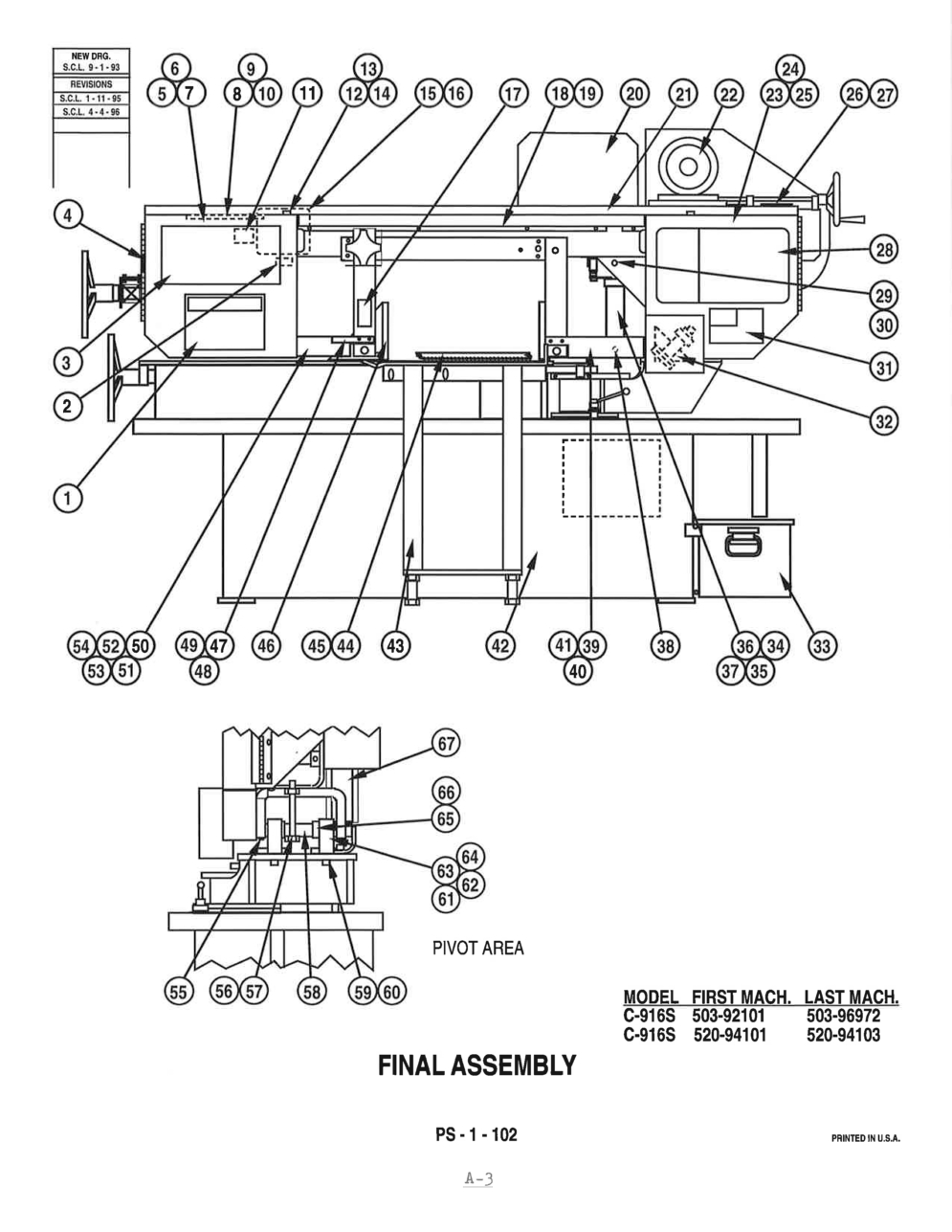

Exploded View Parts Ordering: C-916S_503
C-916S 503 Online Parts Manual
Serial No: 503-92101 End Date 503-96972
Page Code: PS-1-102
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 290154 | Description: Final Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 095-147633 | Description: Main Saw Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 094-044780 | Description: Escutcheon (Warning) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 2 | Part Number: 092-030337 | Description: Escutcheon (Gross Weight) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 094-161635 | Description: Escutcheon (DoALL) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.47 |
| Index No Ref.: 4 | Part Number: 091-760728 | Description: Escutcheon (Band Tension) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 5 | Part Number: 093-191757 | Description: L.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-758870 | Description: Self Drilling Fastener #10 x 1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.01 |
| Index No Ref.: 7 | Part Number: 091-972594 | Description: Washer, Flat #10 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-754788 | Description: Door Stop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-983676 | Description: Screw, Button Hd. Soc. 1/4-2ONC x 5/8 | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-009027 | Description: Locknut 1/4-20NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-066984 | Description: CE Label | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-165835 | Description: Spring Latch | Units Per Assembly: 2 | Availability: In Stock | Price: $15.31 |
| Index No Ref.: 13 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 091-992594 | Description: Washer, Flat #10 S.A.E. Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 093-183960 | Description: Escutcheon (Machine Spec's)(English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-065175 | Description: Escutcheon (Machine Spec's)(International) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-993972 | Description: Screw, Rd. Hd. Drive #2 x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-115121 | Description: Escutcheon (Coolant)(English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-310615 | Description: Escutcheon (Coolant)(International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18* | Part Number: 094-178001 | Description: Band Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-983478 | Description: Screw, Button Hd. Soc. #10-24NC x 1/2 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 095-147658 | Description: Electrical Assy (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 095-144705 | Description: Head Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-772723 | Description: Drive Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 093-132173 | Description: R.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-758870 | Description: Self Drillng Fastener #10 x 1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.01 |
| Index No Ref.: 25 | Part Number: 091-992594 | Description: Washer, Flat #10 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-752683 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-983478 | Description: Screw, Button Hd. Soc. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 094-151693 | Description: Job Selector | Units Per Assembly: 1 | Availability: In Stock | Price: $56.29 |
| Index No Ref.: 29 | Part Number: 091-751446 | Description: Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $24.81 |
| Index No Ref.: 30 | Part Number: 135-064269 | Description: Retaining Ring | Units Per Assembly: 4 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 31 | Part Number: 092-014695 | Description: Decal (American Flag) | Units Per Assembly: 1 | Availability: In Stock | Price: $3.81 |
| Index No Ref.: 32 | Part Number: 094-152733 | Description: Band Brush Assy. (See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $458.24 |
| Index No Ref.: 33 | Part Number: 095-144713 | Description: Coolant Assy. (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 094-148319 | Description: Head Feed Cylinder & Control Valve Sub-Assy. (Standard)(See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $1,750.00 |
| Index No Ref.: | Part Number: 092-031475 | Description: Head Feed Cylinder & Control Valve Sub-Assy. (Full Cycle Option) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 093-148898 | Description: Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $190.17 |
| Index No Ref.: 36 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-973253 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-752659 | Description: Pin (Standard) | Units Per Assembly: 1 | Availability: In Stock | Price: $88.47 |
| Index No Ref.: | Part Number: 092-031491 | Description: Pin (Full Cycle Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 093-184380 | Description: R.H. Blade Guard | Units Per Assembly: 1 | Availability: In Stock | Price: $40.23 |
| Index No Ref.: 40 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #1 24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 091-992594 | Description: Washer, Flat #10 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 095-159885 | Description: Base Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 095-144614 | Description: Receiving Tray Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-715300 | Description: Saw Band (Imperial Bi-Metal Super Silencer) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 093-045250 | Description: Saw Band Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 095-146312 | Description: Vise and Pivot Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 093-184364 | Description: L.H. Blade Guard Weldment | Units Per Assembly: 1 | Availability: In Stock | Price: $160.00 |
| Index No Ref.: 48 | Part Number: 091-993213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 49 | Part Number: 091-992594 | Description: Washer, Flat #10 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 093-191740 | Description: Shield | Units Per Assembly: 1 | Availability: In Stock | Price: $109.79 |
| Index No Ref.: 51 | Part Number: 091-997700 | Description: Screw, Button Hd. Soc. #10-32NF x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-992594 | Description: Washer, Flat #10 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 091-991133 | Description: Nut, Hex. #10-32NF | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-970228 | Description: Nylon Tubing | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 55 | Part Number: 091-996553 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 (Cone Pt.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 091-980573 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 4-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 091-767277 | Description: Shaft | Units Per Assembly: 1 | Availability: In Stock | Price: $28.15 |
| Index No Ref.: 59 | Part Number: 091-998385 | Description: Screw, Soc. Hd. Cap 3/8 16NC x 1-1/4 (Nyloc) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 093-188936 | Description: Bearing Block Assembly | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-019140 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $13.41 |
| Index No Ref.: 62 | Part Number: 091-764761 | Description: Shim (.003) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-764779 | Description: Shim (.005) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 091-764787 | Description: Shim (.007) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 091-265355 | Description: Bronze Thrust Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $10.14 |
| Index No Ref.: 66 | Part Number: 092-019157 | Description: Shaft Collar | Units Per Assembly: 2 | Availability: In Stock | Price: $11.64 |
| Index No Ref.: 67 | Part Number: 095-147781 | Description: Counter Balance Mechanism Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: If your Machine has a 2 piece Band Cover you may order: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-152489 | Description: Upper Band Cover | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-152477 | Description: Lower Band Cover | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 094-068723 | Description: Instruction Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-167707 | Description: Shipping Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-193282 | Description: Shipping Bracket (Pawl Hold Down - Pneumatic Vise Option Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-998690 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (Nyloc) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-992602 | Description: Washer, Flat 1/4 S.A.E. Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-448175 | Description: DoAll Cutting Fluid | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-424904 | Description: Shovel/Rake | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-981779 | Description: Screw, Hex. Hd. Cap 5/8-11NC x 2-3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-991364 | Description: Nut, Hex. Jam 5/8-11NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-998138 | Description: Screw, Soc. Hd. Cap 1/4-20 NC x 1 (Low Head) (When Shipping Bracket Removed) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 071-785521 | Description: Instruction Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 071-785539 | Description: Parts Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 082-025958 | Description: T-Frame Assy (Saw to Conveyor)(Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 084-169382 | Description: Pallet (Optional) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
