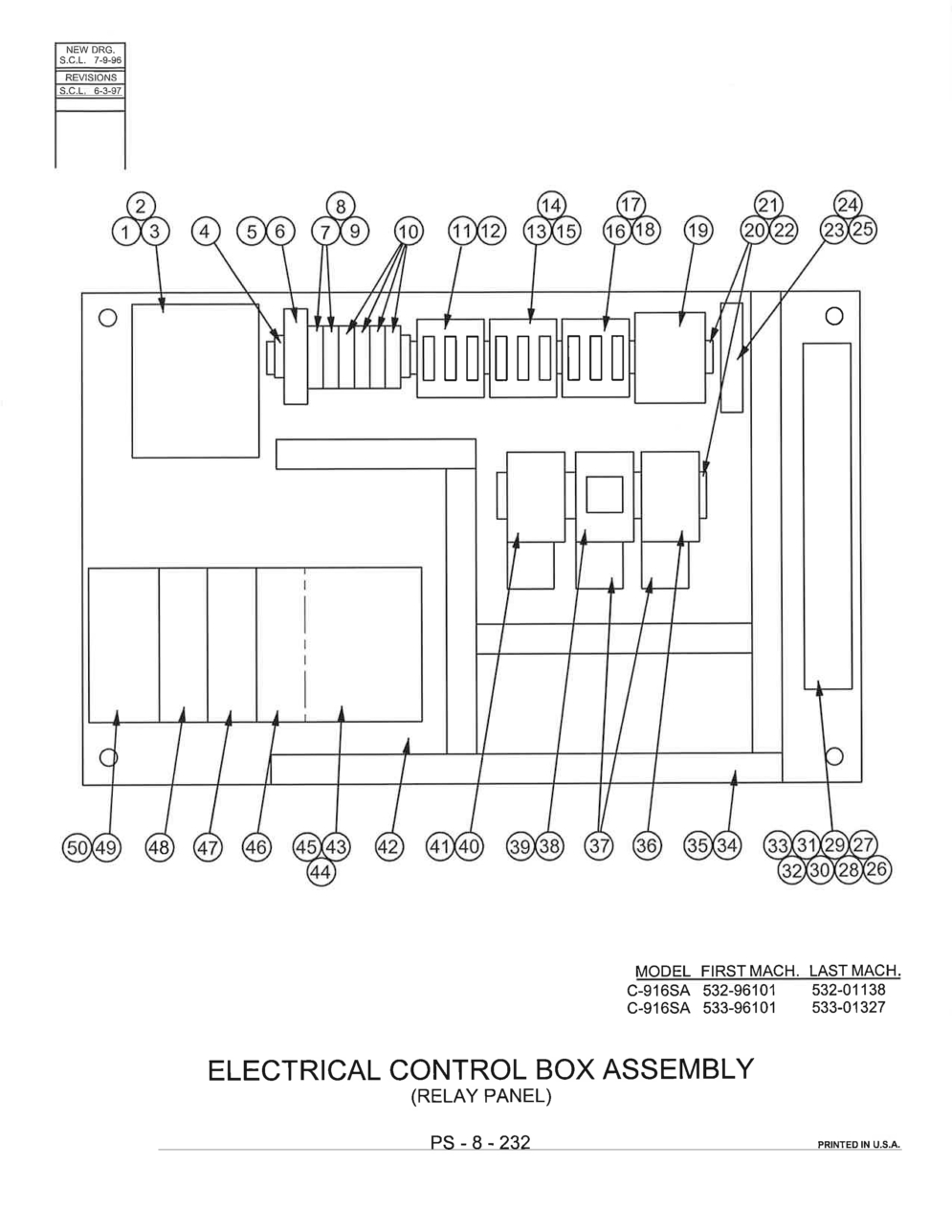

Exploded View Parts Ordering: C-916SA_532
C-916SA 532 Online Parts Manual
Serial No: 532-96101 End Date 532-02139
Page Code: PS-8-232
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Electrical Control Box Relay (Relay Panel) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-201135 | Description: Transformer (208V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-201143 | Description: Transformer (220V, 230V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-201150 | Description: Transformer (380V-415V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-998997 | Description: Screw, Button Hd. Soc. M6 X 1.0 X 16 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 091-999656 | Description: Washer, Flat M6 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 092-006188 | Description: End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 092-053685 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 092-031616 | Description: Fuse (5 Amp) | Units Per Assembly: 1 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: 7 | Part Number: 092-029099 | Description: Fuse Holder | Units Per Assembly: 6 | Availability: In Stock | Price: $41.51 |
| Index No Ref.: 8 | Part Number: 092-014778 | Description: Fuse Holder End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 092-003904 | Description: Fuse (4 Amp) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-787127 | Description: Fuse (2.5 Amp) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-054089 | Description: Fuse Block (380V-415V Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 092-031590 | Description: Fuse (2.5 Amp) (380V-415V Only) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-054089 | Description: Fuse Block (380V-415V Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 092-060342 | Description: Fuse (12 Amp) (208V, 220V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-050376 | Description: Fuse (9 Amp) (380V-415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031616 | Description: Fuse (5 Amp) (460V) | Units Per Assembly: 3 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: | Part Number: 092-016153 | Description: Fuse (4 Amp)(575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 092-033471 | Description: Fuse Block Mounting Adaptor (208V, 220V, 230V, 460V, 575V Only) (If Supplied) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 092-054089 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 092-060342 | Description: Fuse (12 Amp) (208V, 220V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-067057 | Description: Fuse (6.25 Amp) (380V-415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031616 | Description: Fuse (5 Amp) (460V) | Units Per Assembly: 3 | Availability: In Stock | Price: $104.55 |
| Index No Ref.: | Part Number: 092-016153 | Description: Fuse (4 Amp) (575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-033471 | Description: Fuse Block Mounting Adaptor (208V, 220V, 230V, 460V, 575V) (If Supplied) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 092-039122 | Description: Disconnect Switch | Units Per Assembly: 1 | Availability: In Stock | Price: $300.30 |
| Index No Ref.: 20 | Part Number: 091-696740 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-999748 | Description: Screw, Button Hd. Soc. M5 X 0.8 X 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 22 | Part Number: 091-990895 | Description: Washer, Lock M5 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 093-200632 | Description: Grounding Bus | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-998997 | Description: Screw, Button Hd. Soc. M6 X 1.0 X 16 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 091-999656 | Description: Washer, Flat M6 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 092-006154 | Description: Terminal Block | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 092-006170 | Description: End Section | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 092-029222 | Description: Jumper Bar (10 Pole) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-054758 | Description: Terminal Marker Set | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 092-006188 | Description: End Stop | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-696740 | Description: Mounting Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-999748 | Description: Screw, Button Hd. Soc, M5 X 0.8 X 10 | Units Per Assembly: A.R. | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 33 | Part Number: 091-990895 | Description: Washer, Lock M5 Shakeproof | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-974295 | Description: 1.5" Wiring Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-974303 | Description: 1.5" Wiring Channel Cover | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 092-072065 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 092-072933 | Description: Overload Relay (208V, 220V, 230V) | Units Per Assembly: 2 | Availability: In Stock | Price: $88.47 |
| Index No Ref.: | Part Number: 092-072917 | Description: Overload Relay (380V-415V, 460V) | Units Per Assembly: 2 | Availability: In Stock | Price: $87.10 |
| Index No Ref.: | Part Number: 092-072909 | Description: Overload Relay (575V) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-072065 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 092-072214 | Description: Auxiliary Contactor | Units Per Assembly: 1 | Availability: In Stock | Price: $40.23 |
| Index No Ref.: 40 | Part Number: 092-072065 | Description: Contactor (380V-415V Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 092-072883 | Description: Overload Relay (380V-415V Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 095-175642 | Description: Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 092-014521 | Description: CPU Base | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-995555 | Description: Screw, Button Hd. Soc. M4 X 0.7 X 16 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 091-994495 | Description: Washer, Lock M4 Shakeproof | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 092-013218 | Description: Input Module (Multiple Index Option) | Units Per Assembly: 1 | Availability: In Stock | Price: $2,135.00 |
| Index No Ref.: 47 | Part Number: 092-013226 | Description: Output Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 092-013218 | Description: Input Module | Units Per Assembly: 1 | Availability: In Stock | Price: $2,135.00 |
| Index No Ref.: 49 | Part Number: 092-013200 | Description: Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 092-167048* | Description: Eprom Sub-Assembly (Standard) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-167030 | Description: Eprom Sub-Assembly (Variable Vise Pressure Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Item #50 was 092-054238 Before Serial # 533-99269 and #532-02139. | Units Per Assembly: | Availability: Call For Info | Price: |
