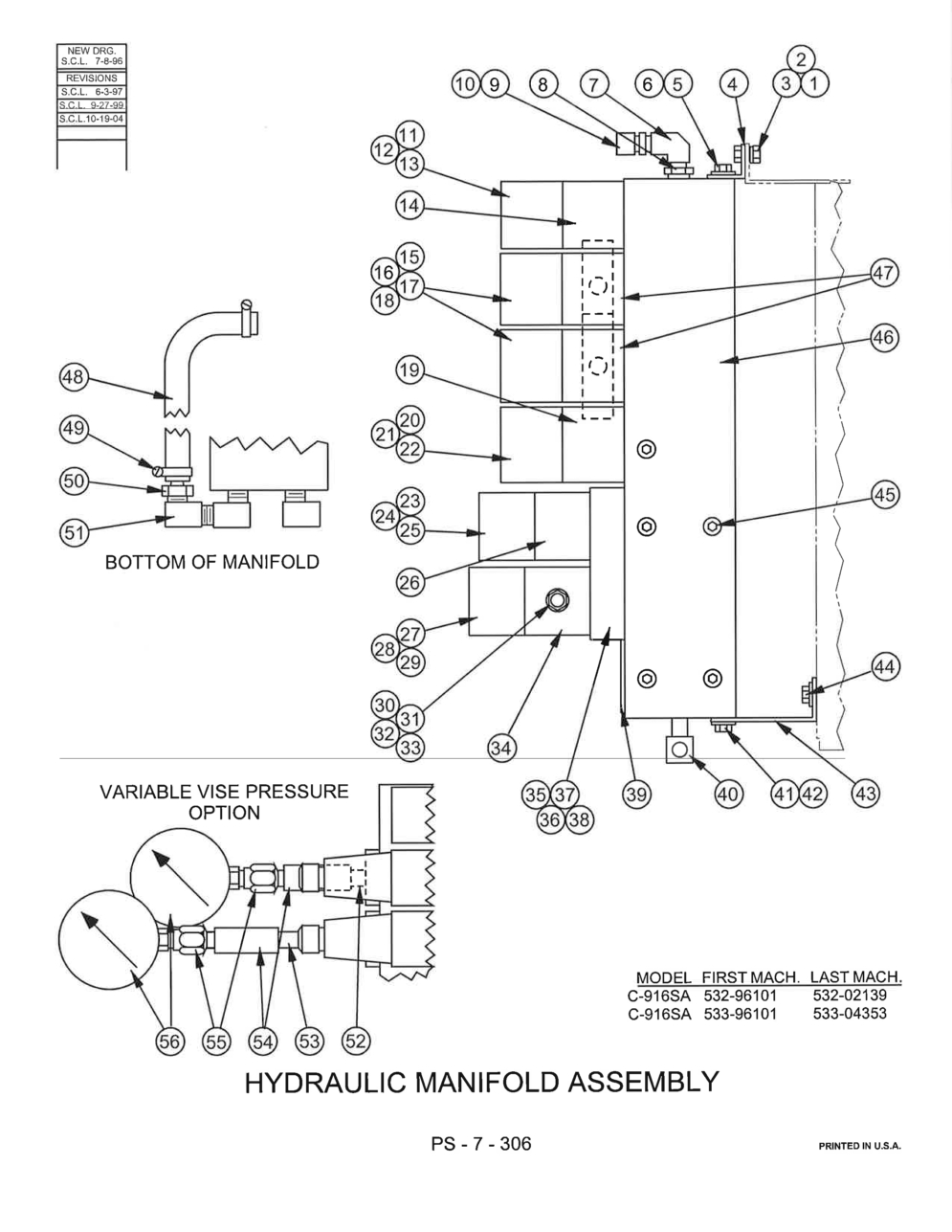

Exploded View Parts Ordering: C-916SA_532
C-916SA 532 Online Parts Manual
Serial No: 532-96101 End Date 532-02139
Page Code: PS-7-306
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 320192 | Description: Hydraulic Manifold Assembly (Standard) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 206552 | Description: Hydraulic Manifold Assembly (Variable Vise Pressure Option) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 198026 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199323 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 199122 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 206119 | Description: Foot Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 198026 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199323 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 105053 | Description: 90 Degrees Street Elbow | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 017537 | Description: Reducer Bushing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 200567 | Description: Test Port | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 202198 | Description: Dust Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 262781 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $850.00 |
| Index No Ref.: 12 | Part Number: 199658 | Description: Screw, Soc. Hd. Cap #10-24NC x 2-1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 012144 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 262402 | Description: Check Valve (Pilot Operated) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 262587 | Description: Directional Control Valve | Units Per Assembly: 2 | Availability: In Stock | Price: $567.46 |
| Index No Ref.: 16 | Part Number: 198225 | Description: Screw, Soc. Hd. Cap #10-24NC x 1 (Standard) | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: 199706 | Description: Screw, Soc. Hd. Cap #10-24NC x 2-3/4 (Variable Vise Pressure Option) | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 17 | Part Number: 012144 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 216732 | Description: Orifice (.028) (Not Used w/Nesting Fixture Option) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 262402 | Description: Check Valve (Pilot Operated) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 262587 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $567.46 |
| Index No Ref.: 21 | Part Number: 199658 | Description: Screw, Soc. Hd. Cap #10-24NC x 2-1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 22 | Part Number: 012144 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 255706 | Description: Directional Control Valve (Anti-Shock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199660 | Description: Screw, Soc. Hd. Cap #10-24NC x 3-1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 012144 | Description: Washer Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 262418 | Description: Flow Control Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 262587 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $567.46 |
| Index No Ref.: 28 | Part Number: 199676 | Description: Screw, Soc. Hd. Cap #10-24NC x 4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 012144 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 35-002344 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 009757 | Description: Pipe Coupling | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 200567 | Description: Test Port | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 202198 | Description: Dust Cap | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 201637 | Description: Pressure Reducing Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $661.89 |
| Index No Ref.: 35 | Part Number: 416307 | Description: Sub-Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 108295 | Description: O-Ring (Viton - 1/2 O.D.) | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 37 | Part Number: 109781 | Description: O-Ring (Viton - 9/16 O.D.) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 133202 | Description: Pipe Plug | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 210721 | Description: Cover Plate Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 120903 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 198026 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 199323 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 43 | Part Number: 320286 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 199737 | Description: Screw, Hex. Hd. Self-Tap 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 123328 | Description: Pipe Plug | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 46 | Part Number: 510296 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 201637 | Description: Pressure Reducing Valve (Variable Vise Pressure Option) | Units Per Assembly: 2 | Availability: In Stock | Price: $661.89 |
| Index No Ref.: 48 | Part Number: 197109 | Description: Hose 5/8 I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 121288 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 120904 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 120903 | Description: 90 Degrees Street Elbow | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: For Variable Vise Pressure Option: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 105911 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 35-000494 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 009757 | Description: Pipe Coupling | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 111543 | Description: Pressure Snubber | Units Per Assembly: 2 | Availability: In Stock | Price: $26.82 |
| Index No Ref.: 56 | Part Number: 200557 | Description: Pressure Gauge | Units Per Assembly: 2 | Availability: In Stock | Price: $69.10 |
