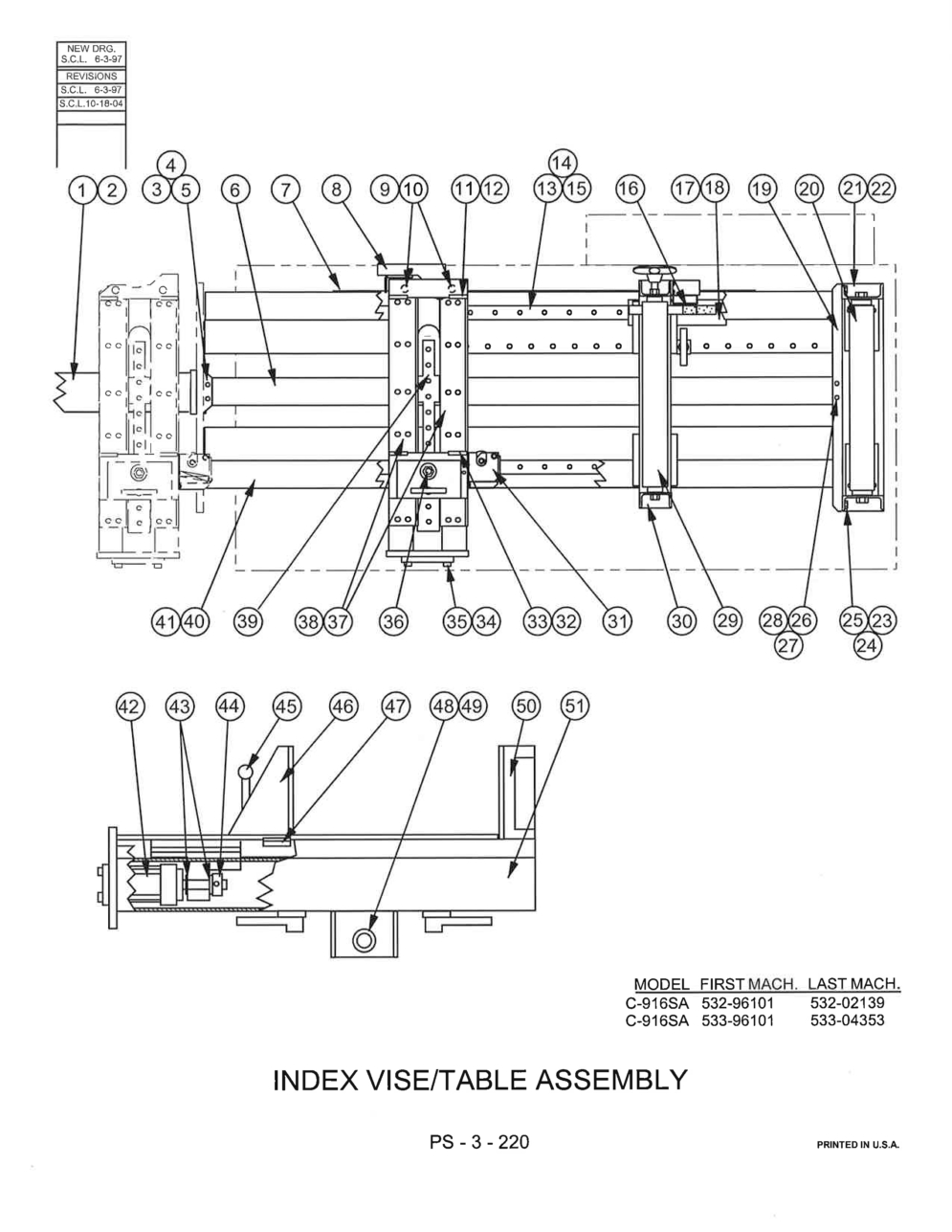

Exploded View Parts Ordering: C-916SA_532
C-916SA 532 Online Parts Manual
Serial No: 532-96101 End Date 532-02139
Page Code: PS-3-220
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 517569 | Description: Index Vise/Table Assembly (Inch) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref | Part Number: 517545 | Description: Index Vise/Table Assembly (Metric) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 205091 | Description: Index Feed Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199926 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 25 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 320148 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 199926 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 25 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 5 | Part Number: 198163 | Description: Screw, Hex. Hd. Cap M6 x 1.0 x 20 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 320814 | Description: Rod Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 320128 | Description: Scale (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320583 | Description: Scale (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 417937 | Description: Limit Switch Actuator Assembly (Out of Stock) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 199950 | Description: Screw, Soc. Hd. Cap M16 x 2.0 x 45 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 199063 | Description: Washer, Lock M16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 320282 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: In Stock | Price: $294.88 |
| Index No Ref.: | Part Number: 324795 | Description: Wear Plate (Steel) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 205099 | Description: Linear Bearing And Rail | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199993 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 20 | Units Per Assembly: 66 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 205403 | Description: Plastic Cap | Units Per Assembly: 50 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 517550 | Description: Index Length Setting Mechanism Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 320187 | Description: Slide Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199937 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 320149 | Description: Cover Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 202786 | Description: Roller | Units Per Assembly: 1 | Availability: In Stock | Price: $122.33 |
| Index No Ref.: 21 | Part Number: 417732 | Description: Bracket Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 199896 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 25 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 198163 | Description: Screw, Hex. Hd. Cap M6 x 1.0 x 20 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199188 | Description: Nut, Hex. M6 x 1.0 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 091-99347 | Description: Washer, Lock M6 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-99246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 27 | Part Number: 091-99347 | Description: Washer, Lock M6 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-99188 | Description: Nut, Hex. M6 x 1.0 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-02786 | Description: Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 095-17571 | Description: Workstop/Roller Carriage Weldment (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-17547 | Description: Workstop/Roller Carriage Weldment (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 092-07727 | Description: Roller And Bracket Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 093-20282 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: In Stock | Price: $294.88 |
| Index No Ref.: | Part Number: 314795 | Description: Wear Plate (Steel) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 34 | Part Number: 199926 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 25 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 199967 | Description: Washer, Flat M8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 36 | Part Number: 099525 | Description: Self-Locking Nut M12 x 1.75 (w/Nylon Insert) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 319921 | Description: Wear Plate | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 24 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 39 | Part Number: 518127 | Description: Rack | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 516760 | Description: Bearing Rail Cover | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 199737 | Description: Screw, Hex. Hd. Self-Tapping 1/4-28NF x 3/4 | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 205090 | Description: Vise Clamp Cylinder | Units Per Assembly: 1 | Availability: In Stock | Price: $1,881.22 |
| Index No Ref.: 43 | Part Number: 205295 | Description: Hardened Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 205296 | Description: Threaded Collar 7/16-20NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 205154 | Description: T-Pin Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 205153 | Description: T-Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $26.82 |
| Index No Ref.: | Part Number: 35-007083 | Description: Stop Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 517549 | Description: Movable Vise Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 320817 | Description: Tee Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 204965 | Description: Hardened Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 176247 | Description: Threaded Collar 3/4-16NF | Units Per Assembly: 1 | Availability: In Stock | Price: $12.60 |
| Index No Ref.: 50 | Part Number: 517548 | Description: Fixed Vise Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 517546 | Description: Index Vise Carriage Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
