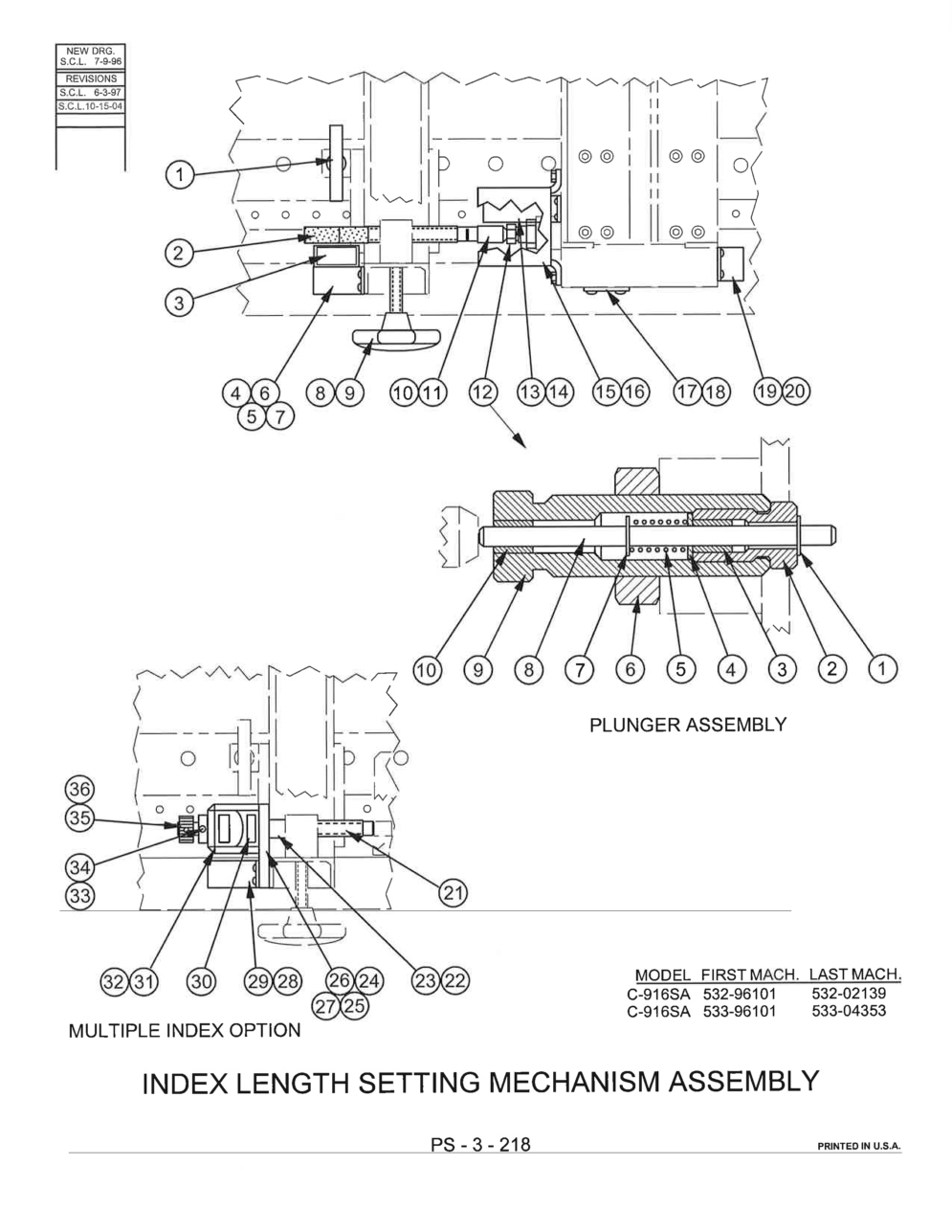

Exploded View Parts Ordering: C-916SA_532
C-916SA 532 Online Parts Manual
Serial No: 532-96101 End Date 532-02139
Page Code: PS-3-218
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 517550 | Description: Index Length Setting Mechanism Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 205154 | Description: T-Pin Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 205133 | Description: T-Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 35-007083 | Description: Stop Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 320044 | Description: Adjustment Screw (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320581 | Description: Adjustment Screw (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 320045 | Description: Scale (Inch) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320269 | Description: Scale (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 417468 | Description: Bracket/Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 6 | Part Number: 199348 | Description: Washer, Lock M5 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 207739 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 208824 | Description: Nylon Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 320129 | Description: Screw Extension | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 202383 | Description: Loctite Adhesive (#242-31 Threadlock) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 320585 | Description: Plunger Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13* | Part Number: 321588 | Description: Switch Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 418555 | Description: Switch Guard | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 199836 | Description: Screw, Hex. Hd. Cap M8 x 1.25 x 16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 320816 | Description: Switch Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 19 | Part Number: 205837 | Description: Switch Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199246 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: *NOTE: Item #13 was 417936 Before Serial #533-97141. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref | Part Number: 320585 | Description: Plunger Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 141876 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 320047 | Description: Guide/Retainer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 205306 | Description: Sleeve Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 205305 | Description: Brass Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 205304 | Description: Compression Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 199189 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 141876 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 206862 | Description: Actuator Rod | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 320046 | Description: Barrel Threaded Index Stop/Switch Actuator | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 205306 | Description: Sleeve Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 207746 | Description: Multiple Index Option (Inch) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 207722 | Description: Multiple Index Option (Metric) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 320271 | Description: Adjustment Screw (Inch) | Units Per Assembly: 1 | Availability: In Stock | Price: $456.91 |
| Index No Ref.: | Part Number: 320274 | Description: Adjustment Screw (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 206721 | Description: Flange Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 206719 | Description: Wave Spring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 417934 | Description: Mounting Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 199041 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 20 | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 26 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 27 | Part Number: 199503 | Description: Screw, Soc. Set M5 x 0.8 x 12 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 320272 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 30 | Part Number: 206725 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 206616 | Description: Position Indicator (Inch) | Units Per Assembly: 1 | Availability: In Stock | Price: $1,259.52 |
| Index No Ref.: | Part Number: 206730 | Description: Position Indicator (Metric) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 199432 | Description: Screw, Pan Hd. Mach. M2.5 x 0.45 x 10 (Phillips) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 199431 | Description: Screw, Soc. Set M5 x 0.8 x 16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 199202 | Description: Nut, Hex. M5 x 0.8 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 35 | Part Number: 207720 | Description: Knurled Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 199504 | Description: Screw, Soc. Set M6 x 1.0 x 6 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
