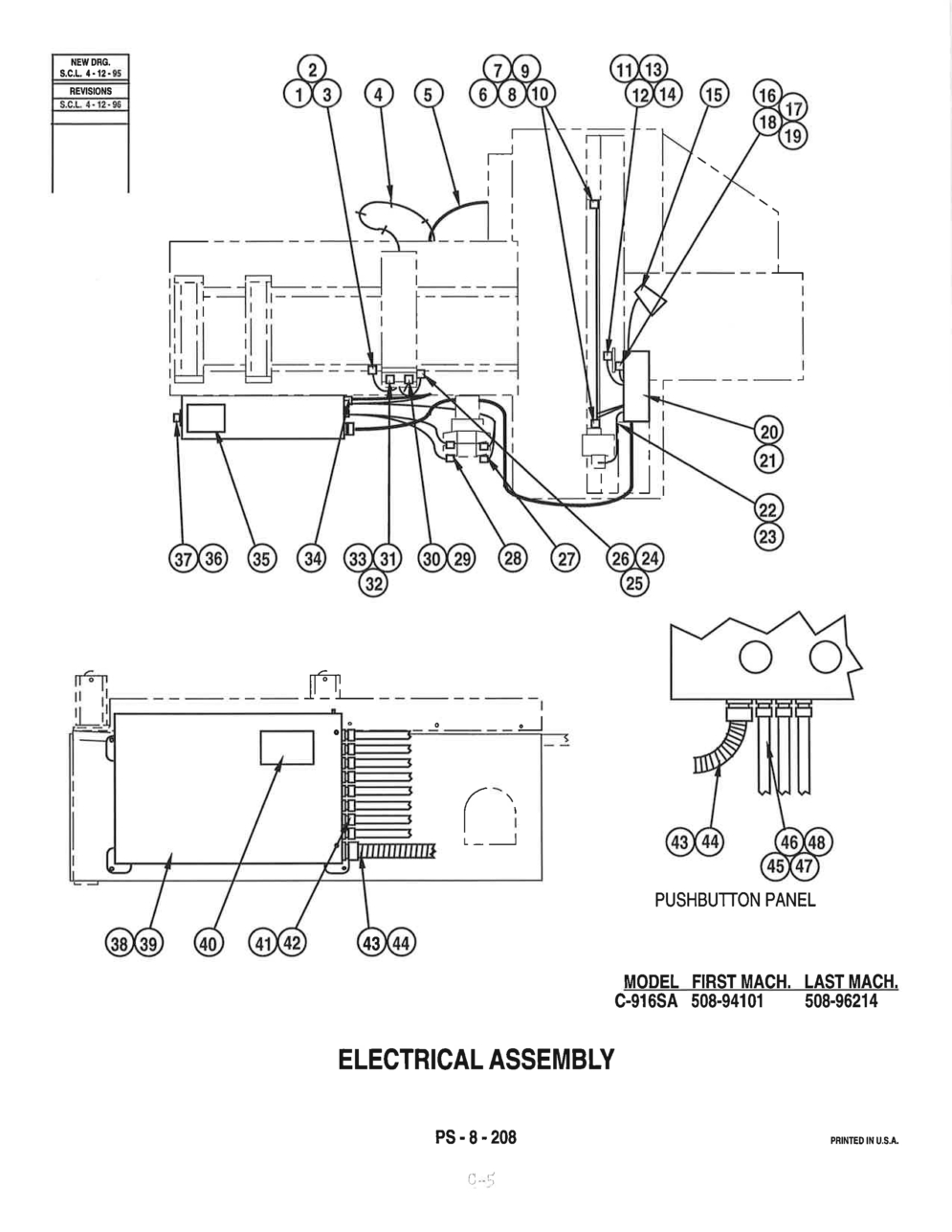

Exploded View Parts Ordering: C-916SA_508
C-916SA 508 Online Parts Manual
Serial No: 508-94101 End Date 508-96214
Page Code: PS-8-208
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-767673 | Description: Limit Switch (Index Reverse Creep) | Units Per Assembly: 1 | Availability: In Stock | Price: $160.99 |
| Index No Ref.: 2 | Part Number: 091-988444 | Description: Screw, Rd. Hd. Mach. #6-32NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 091-076372 | Description: Cable Tie | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-972182 | Description: Extension Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 092-039320 | Description: Limit Switch Body (Female) (Door Interlock) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-039460 | Description: Limit Switch Key (Male) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-990481 | Description: Screw, Button Hd. Soc. #6-32NC x 1-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-992560 | Description: Washer, Flat #6 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-991083 | Description: Nut, Hex. #6-32NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 11 | Part Number: 091-767681 | Description: Limit Switch (Head Down) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 12 | Part Number: 091-988444 | Description: Screw, Rd. Hd. Mach. #6-32NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-992560 | Description: Washer, Flat #6 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 15 | Part Number: 092-066687 | Description: Worklamp | Units Per Assembly: 1 | Availability: In Stock | Price: $194.01 |
| Index No Ref.: 16 | Part Number: 091-767673 | Description: Limit Switch (Head Clear) | Units Per Assembly: 1 | Availability: In Stock | Price: $160.99 |
| Index No Ref.: 17 | Part Number: 091-988444 | Description: Screw, Rd. Hd. Mach. #6-32NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-992560 | Description: Washer, Flat #6 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 20 | Part Number: | Description: Pushbutton Panel Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 095-170197 | Description: Pushbutton Box Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-972182 | Description: Extension Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 092-016872 | Description: Cord Grip Connector (.545-.709) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-767681 | Description: Limit Switch (Out of Stock) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 25 | Part Number: 091-988444 | Description: Screw, Rd. Hd. Mach. #6-32NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 27 | Part Number: 092-012707 | Description: Solenoid Plug Connector (Gray) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 092-012699 | Description: Solenoid Plug Connector (Black) | Units Per Assembly: 6 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 29 | Part Number: 091-767681 | Description: Limit Switch (Index Forward) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 30 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 31 | Part Number: 091-767681 | Description: Limit Switch (Index Rear) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 32 | Part Number: 091-988444 | Description: Screw, Rd. Hd. Mach. #6-32NC x 7/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 34 | Part Number: 092-016872 | Description: Cord Grip Connector (.545-.709) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 094-177441 | Description: Escutcheon (Inch) (Multiple Index Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-177458 | Description: Escutcheon (Metric)(Multiple Index Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 092-021997 | Description: Rotary Switch (8 Position) (Multiple Index Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 093-191344 | Description: Escutcheon (Multiple Index) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: | Description: Control Panel Assembly (Relay) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 095-165916 | Description: Control Box Enclosure Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 093-200814 | Description: Fuse/Overload Schedule | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 092-016880 | Description: Cord Grip Connector | Units Per Assembly: 15 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 42 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 43 | Part Number: 092-061779 | Description: Conduit Fitting | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 092-063528 | Description: Flexible Conduit 1-1/4 I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 092-016880 | Description: Cord Grip Connector | Units Per Assembly: 5 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 46 | Part Number: 091-351064 | Description: Hole Seal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 092-012699 | Description: Solenoid Plug Connector (Black) | Units Per Assembly: 1 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 48 | Part Number: 091-973321 | Description: Extension Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-973255 | Description: Wire, #16 White (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-973420 | Description: Wire, #16 Red (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-973438 | Description: Wire,#16 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-973396 | Description: Wire, #14 Black (19 Strand) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971952 | Description: Wire, #14 Green/Yellow (19 Strand) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 090-076357 | Description: Wire Terminal #10 | Units Per Assembly: 15 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-038489 | Description: Wire Terminal #8 | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-323691 | Description: Wire Connector | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-039254 | Description: Gasket Strip | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
