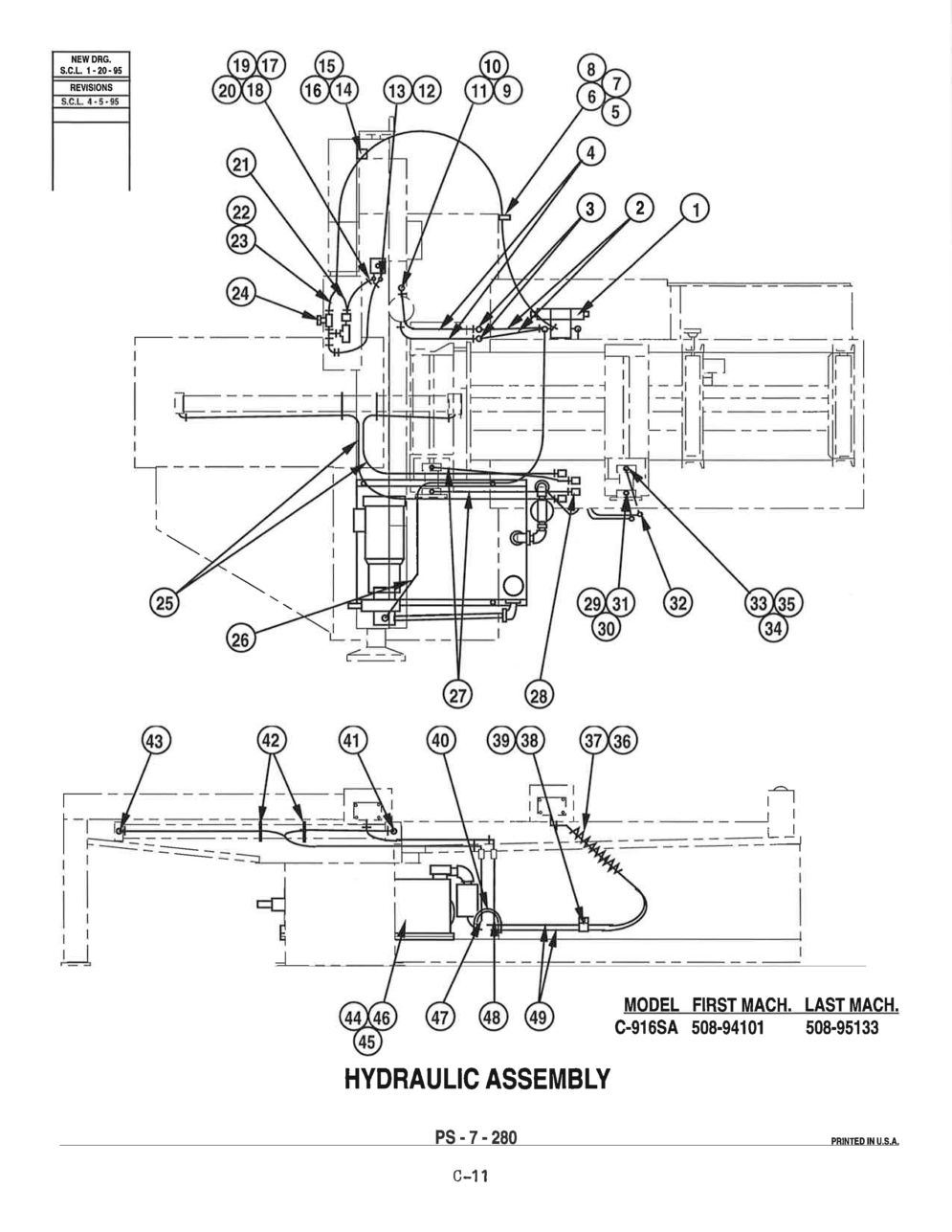

Exploded View Parts Ordering: C-916SA_508
C-916SA 508 Online Parts Manual
Serial No: 508-94101 End Date 508-96214
Page Code: PS-7-280
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-169421 | Description: Hydraulic Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-201929 | Description: Hydraulic Manifold Assembly (Standard) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-065523 | Description: Hydraulic Manifold Assembly (Variable Vise Pressure Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 092-062165 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-082546 | Description: 90 Degrees Street Elbow | Units Per Assembly: 2 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 4 | Part Number: 092-062157 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 092-062231 | Description: Tube Clip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-980078 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 5/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 091-991158 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 105-275069 | Description: 90 Degrees Street Elbow (Port) | Units Per Assembly: 1 | Availability: In Stock | Price: $6.20 |
| Index No Ref.: 10 | Part Number: 091-350066 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-230417 | Description: 90 Degrees Elbow (Hose) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-219337 | Description: 45 Degrees Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $3.25 |
| Index No Ref.: 13 | Part Number: 092-062108 | Description: Hydraulic Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 092-056894 | Description: Hanger | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-983478 | Description: Screw, Button Hd. Soc. #10-24NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-993204 | Description: Washer, Lock #10 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 17 | Part Number: 090-082546 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 18 | Part Number: 135-004943 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 093-034171 | Description: Orifice (.0465 Dia.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 092-062090 | Description: Hydraulic Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 092-062124 | Description: Hydraulic Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 092-062116 | Description: Hydraulic Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-974089 | Description: Cable Tie (Black) | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 093-200962 | Description: Head Feed Valving Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 092-062173 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 092-062132 | Description: Hydraulic Hose | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 092-062199 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-082546 | Description: 90 Degrees Street Elbow | Units Per Assembly: 4 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 29 | Part Number: 105-115174 | Description: Hex. Reducer Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 090-082546 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: In Stock | Price: $9.50 |
| Index No Ref.: 31 | Part Number: 135-023448 | Description: Pipe Nipple (2" Long) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-209056 | Description: 90 Degrees Elbow (Brass) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 105-115174 | Description: Hex Reducer Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-196279 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 135-015303 | Description: Pipe Nipple (6" Long) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-973883 | Description: Poly Wire Wrap (1" Black) | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.02 |
| Index No Ref.: 37 | Part Number: 091-994089 | Description: Cable Tie (Black) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-062223 | Description: Tube Clip | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-997379 | Description: Screw, Hex. Hd. Self-Tap 1/4-20NC x 3/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-972364 | Description: Grommet Strip (Both Ends) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-488874 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-974089 | Description: Cable Tie (Black) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-488874 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 095-169462 | Description: Hydraulic Power Unit Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 091-992628 | Description: Washer, Flat 5/16 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-993246 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 092-062207 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 092-062181 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 092-062140 | Description: Hydraulic Hose | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 092-010305 | Description: Transmission Fluid | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
