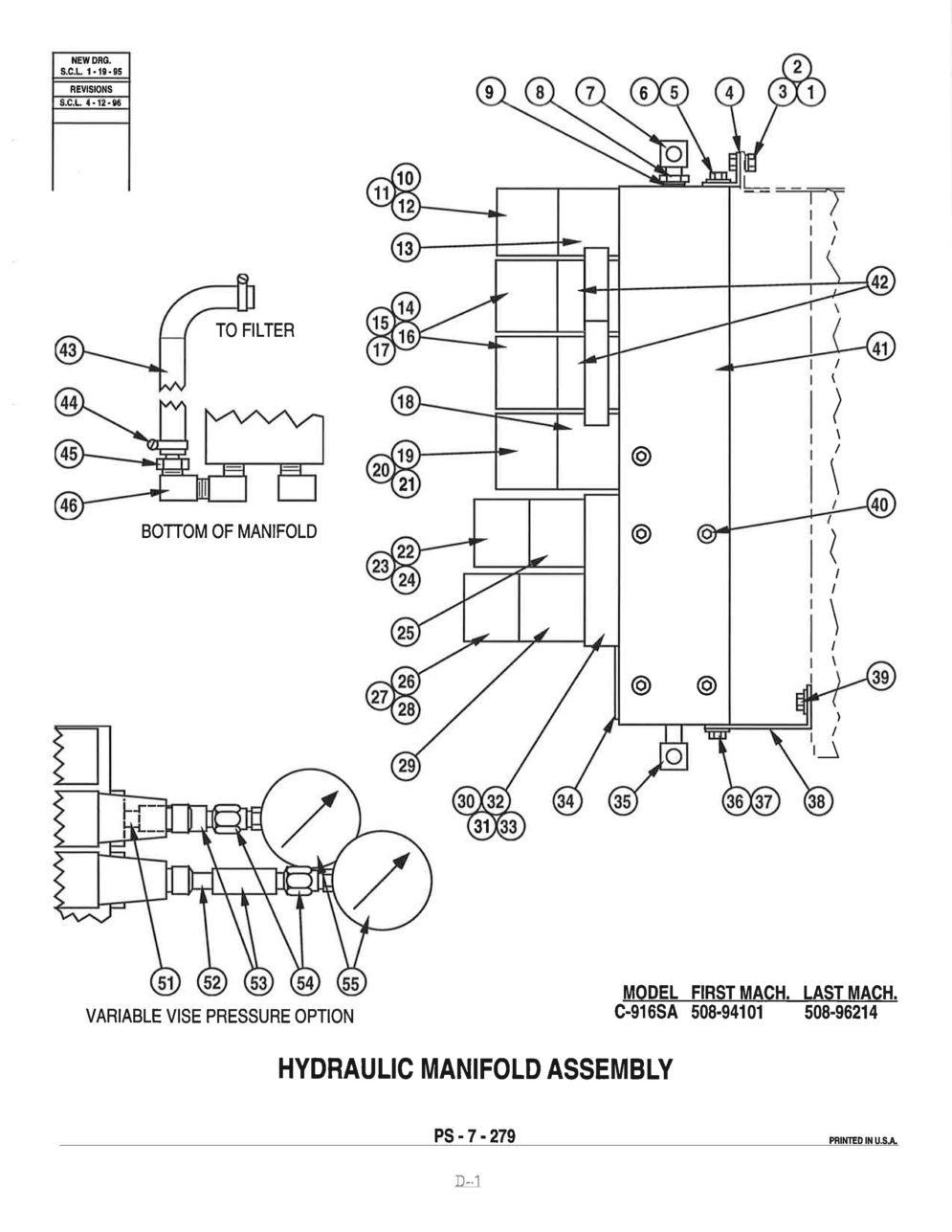

Exploded View Parts Ordering: C-916SA_508
C-916SA 508 Online Parts Manual
Serial No: 508-94101 End Date 508-96214
Page Code: PS-7-279
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 093-201929 | Description: Hydraulic Manifold Assembly (Standard) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 092-065523 | Description: Hydraulic Manifold Assembly (Variable Vise Pressure Option) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-980268 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-993246 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-991224 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 092-061191 | Description: Foot Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-980268 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-993246 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-050534 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 090-175373 | Description: Hex. Reducer Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-137372 | Description: Pipe Plug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-726810 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-996587 | Description: Screw, Soc. Hd. Cap #10-24NC x 2-1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 12 | Part Number: 090-121443 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-033968 | Description: Check Valve (Pilot Operated) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-726828 | Description: Directional Control Valve | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-982256 | Description: Screw, Soc. Hd. Cap #10-24NC x 1 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 090-121443 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 092-062371 | Description: Orifice (.047) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-033968 | Description: Check Valve (Pilot Operated) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-726828 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-996587 | Description: Screw, Soc. Hd. Cap #10-24NC x 2-1/2 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 090-121443 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 092-027945 | Description: Directional Control Valve (Anti-Shock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-996603 | Description: Screw, Soc. Hd. Cap #10-24NC x 3-1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-121443 | Description: Washer Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-719138 | Description: Flow Control Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-726828 | Description: Directional Control Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-996769 | Description: Screw, Soc. Hd. Cap #10-24NC x 4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 090-121443 | Description: Washer, Lock #10 Hi-Collar | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-016377 | Description: Pressure Reducing Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $661.89 |
| Index No Ref.: 30 | Part Number: 094-163078 | Description: Sub-Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-082958 | Description: O-Ring (Viton - 1/2 O.D.) | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 32 | Part Number: 091-097816 | Description: O-Ring (Viton - 9/16 O.D.) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-332023 | Description: Pipe Plug | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-540575 | Description: Cover Plate Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-209031 | Description: 90 Degrees Street Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-980268 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-993246 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 093-202869 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-997379 | Description: Screw, Hex. Hd. Self-Tap 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-233288 | Description: Pipe Plug | Units Per Assembly: 5 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 092-056969 | Description: Manifold | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 092-016377 | Description: Pressure Reducing Valve (Variable Vise Pressure Option) | Units Per Assembly: 2 | Availability: In Stock | Price: $661.89 |
| Index No Ref.: 43 | Part Number: 091-971093 | Description: Hose 5/8 I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-212886 | Description: Hose Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 091-209049 | Description: Barbed Insert | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 090-104506 | Description: 90 Degrees Street Elbow | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: For Variable Vise Pressure Option: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 091-059113 | Description: Close Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 090-138082 | Description: Pipe Nipple | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 090-097577 | Description: Pipe Coupling | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-115436 | Description: Pressure Snubber | Units Per Assembly: 2 | Availability: In Stock | Price: $26.82 |
| Index No Ref.: 55 | Part Number: 092-023936 | Description: Pressure Gauge | Units Per Assembly: 2 | Availability: Call For Info | Price: |
