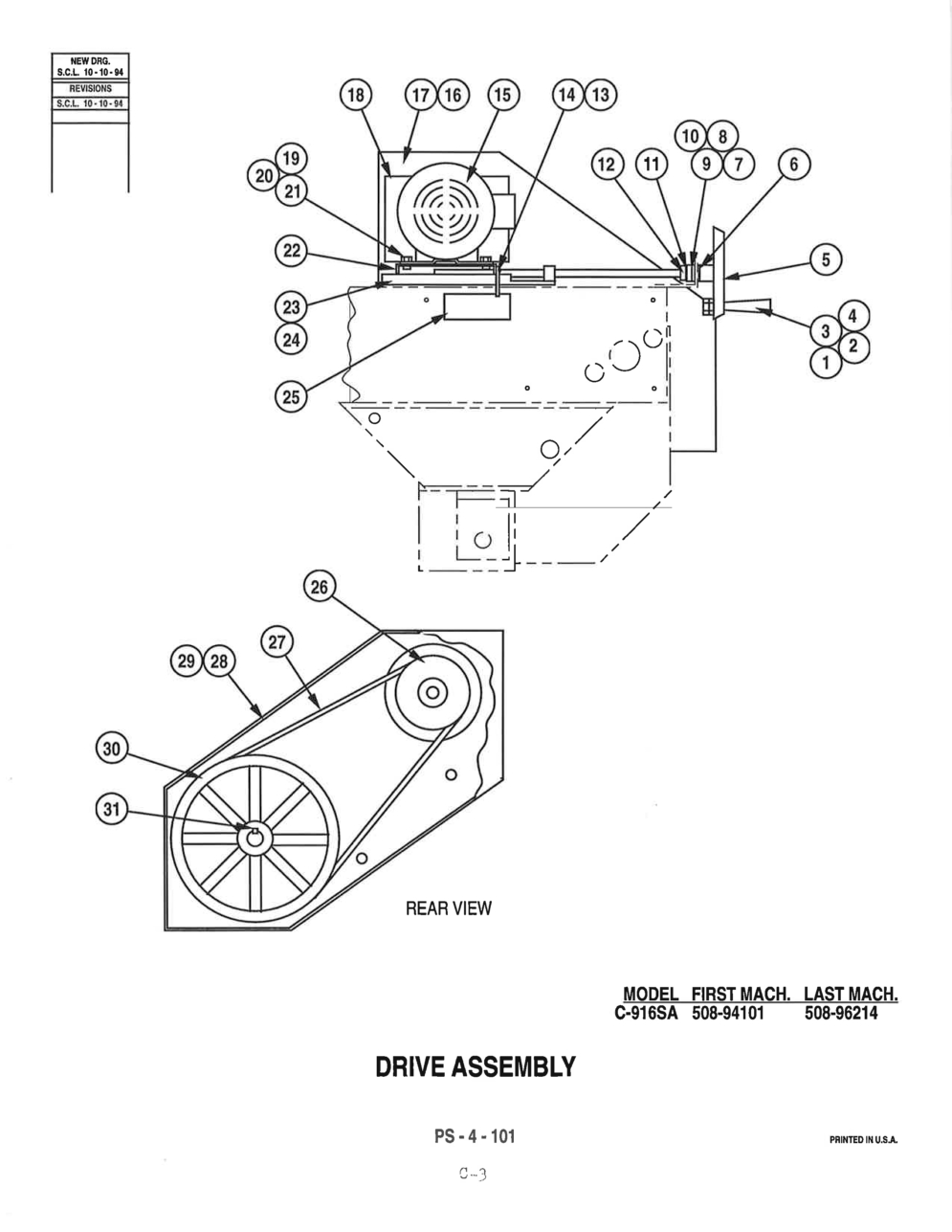

Exploded View Parts Ordering: C-916SA_508
C-916SA 508 Online Parts Manual
Serial No: 508-94101 End Date 508-96214
Page Code: PS-4-101
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 092-036813 | Description: Drive Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-035500 | Description: Handle | Units Per Assembly: 1 | Availability: In Stock | Price: $7.24 |
| Index No Ref.: 2 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 091-982900 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 093-195170 | Description: Band Speed Adjustment Handwheel Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-195162 | Description: Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-042607 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 094-172434 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 091-424085 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $7.92 |
| Index No Ref.: 8 | Part Number: 091-983684 | Description: Screw, Button Hd. Soc. 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 091-991141 | Description: Nut, Hex. Jam 1/4-20NC | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 091-992669 | Description: Washer, Flat 1/2 S.A.E. Std. | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 12 | Part Number: 134-054105 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-752675 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 091-157305 | Description: Electric Motor (All Voltages - Three Phase) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338798 | Description: Electric Motor (115/230V - Single Phase) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-301267 | Description: Electric Motor (208/230/460V - Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-799890 | Description: Electric Motor (575V) (Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 095-165056 | Description: Cover Mounting Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-983668 | Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 093-208338 | Description: Cover (Atter Serial #508-95192) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-980250 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-992628 | Description: Washer, Flat 5/16 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 094-151636 | Description: Motor Slide Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-155744 | Description: Adaptor Plate (Slow SPeed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-983940 | Description: Screw, Flat Hd. Soc. 5/16-18NC x 5/8 (Slow Speed Option) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 094-141033 | Description: Base Motor Slide | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-985390 | Description: Screw, Soc. Hd. Cap 5/16-18NC x 1/2 (Low Head) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-794800 | Description: Escutcheon (Band Speed) (60 Hz - Feet/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-794776 | Description: Escutcheon (Band Speed) (60 Hz - Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-794818 | Description: Escutcheon (Band Speed) (50 Hz - Feet/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-794826 | Description: Escutcheon (Band Speed) (50 Hz - Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-794768 | Description: Escutcheon (Band Speed) (Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-067628 | Description: Escutcheon (Band Speed) (150-345 fpm Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-752808 | Description: Variable Pulley | Units Per Assembly: 1 | Availability: In Stock | Price: $354.56 |
| Index No Ref.: 27 | Part Number: 092-036680 | Description: V-Belt | Units Per Assembly: 1 | Availability: In Stock | Price: $38.39 |
| Index No Ref.: | Part Number: 092-036698 | Description: V-Belt (Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 111-055034 | Description: V-Belt (150-345 fpm Option) | Units Per Assembly: 1 | Availability: In Stock | Price: $26.00 |
| Index No Ref.: 28 | Part Number: 095-165063 | Description: Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 30 | Part Number: 091-586594 | Description: Pulley | Units Per Assembly: 1 | Availability: In Stock | Price: $246.48 |
| Index No Ref.: | Part Number: 092-067636 | Description: Pulley (150-345 fpm Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 090-044439 | Description: Key | Units Per Assembly: 1 | Availability: In Stock | Price: $1.68 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 090-158353 | Description: Cord Grip Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-161605 | Description: 90 Degrees Cord Grip Connector (Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-492637 | Description: Female Reducer Bushing (Slow Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
