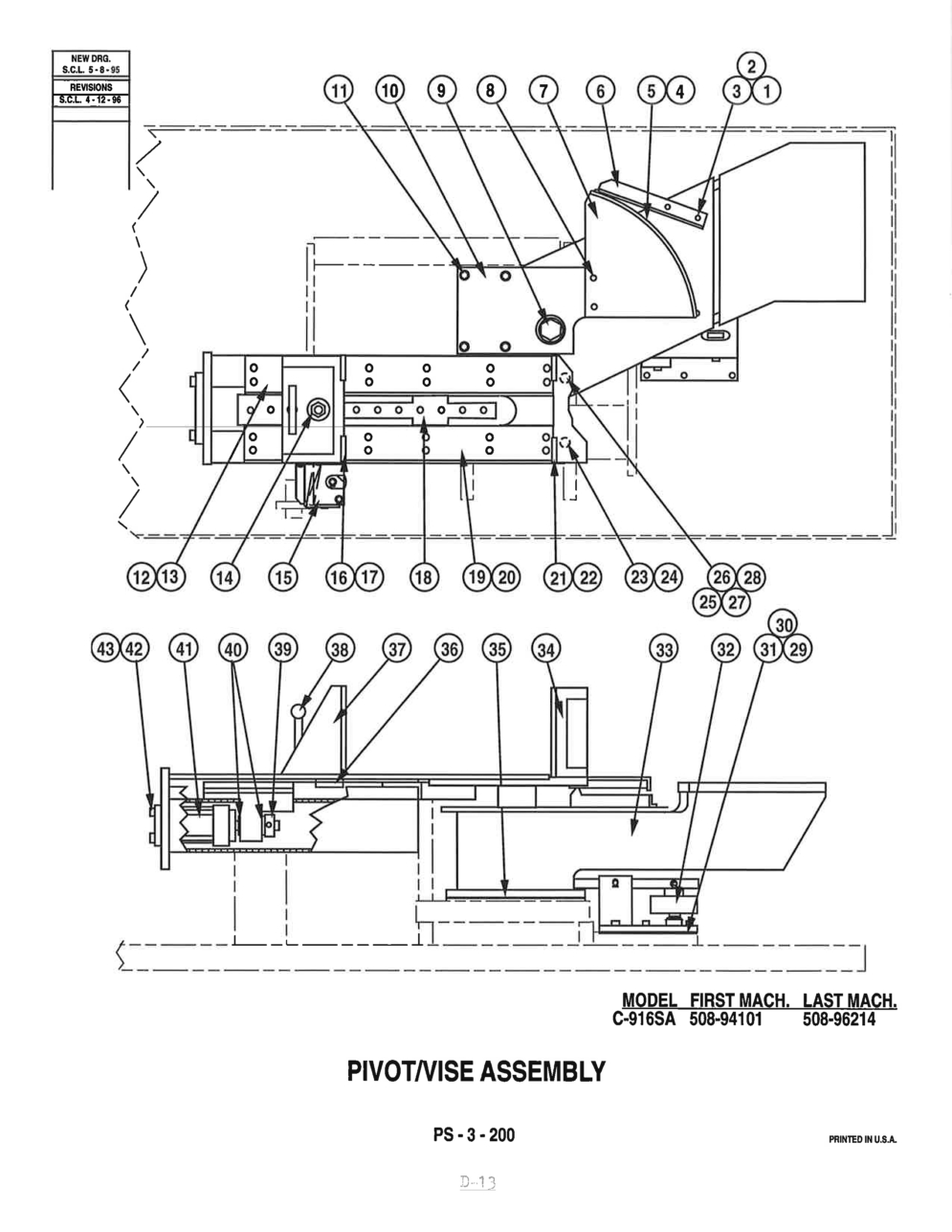

Exploded View Parts Ordering: C-916SA_508
C-916SA 508 Online Parts Manual
Serial No: 508-94101 End Date 508-96214
Page Code: PS-3-200
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref | Part Number: 095-167656 | Description: Pivot/Vise Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-983494 | Description: Screw, Button Hd. Soc. 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-992602 | Description: Washer, Flat 1/4 S.A.E. Std. | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 093-200368 | Description: Scale | Units Per Assembly: 1 | Availability: In Stock | Price: $63.00 |
| Index No Ref.: 5 | Part Number: 091-994004 | Description: Screw, Rd. Hd. Drive #6 x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-200392 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 094-174653 | Description: Quadrant Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-983494 | Description: Screw, Button Hd. Soc. 1/4-20NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 093-200350 | Description: Pivot Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 094-174646 | Description: Pivot Support Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-726083 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 7/8 (Low Head) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 093-199214 | Description: Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 12 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 090-127051 | Description: Self-Locking Nut, 1/2-13NC | Units Per Assembly: 1 | Availability: In Stock | Price: $12.60 |
| Index No Ref.: 15 | Part Number: 092-066158 | Description: Roller and Bracket Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-202828 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: In Stock | Price: $294.88 |
| Index No Ref.: 17 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 18 | Part Number: 095-168530 | Description: Rack | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 093-199214 | Description: Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 12 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 093-202828 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: In Stock | Price: $294.88 |
| Index No Ref.: 22 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 091-983924 | Description: Screw, Soc. Hd. Cap 5/8-11NC x 2-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-993287 | Description: Washer, Lock 5/8 Std | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-985879 | Description: Screw, Soc. Set 5/8-11NC x 2-3/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-630806 | Description: Retaining Compound (Loctite #271) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-991364 | Description: Nut, Hex. Jam 5/8-11NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-993287 | Description: Washer, Lock 5/8 Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-067693 | Description: Shim (.0598) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 092-067701 | Description: Shim (.0299) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 092-067719 | Description: Shim (.0149) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 095-169033 | Description: Head Lock Mechanism Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 095-167649 | Description: Pivot Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 094-174034 | Description: Fixed Vise Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 093-200343 | Description: Bearing Disc | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 093-202505 | Description: Tee Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 095-168548 | Description: Movable Vise Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-051549 | Description: T-Pin Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-051531 | Description: T-Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 135-070837 | Description: Stop Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 092-052968 | Description: Threaded Collar 7/16-20NF | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 092-052950 | Description: Hardened Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 092-050905 | Description: Vise Clamp Cylinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-982603 | Description: Screw, Soc. Hd. Cap 5/16-18NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-992628 | Description: Washer, Flat 5/16 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
