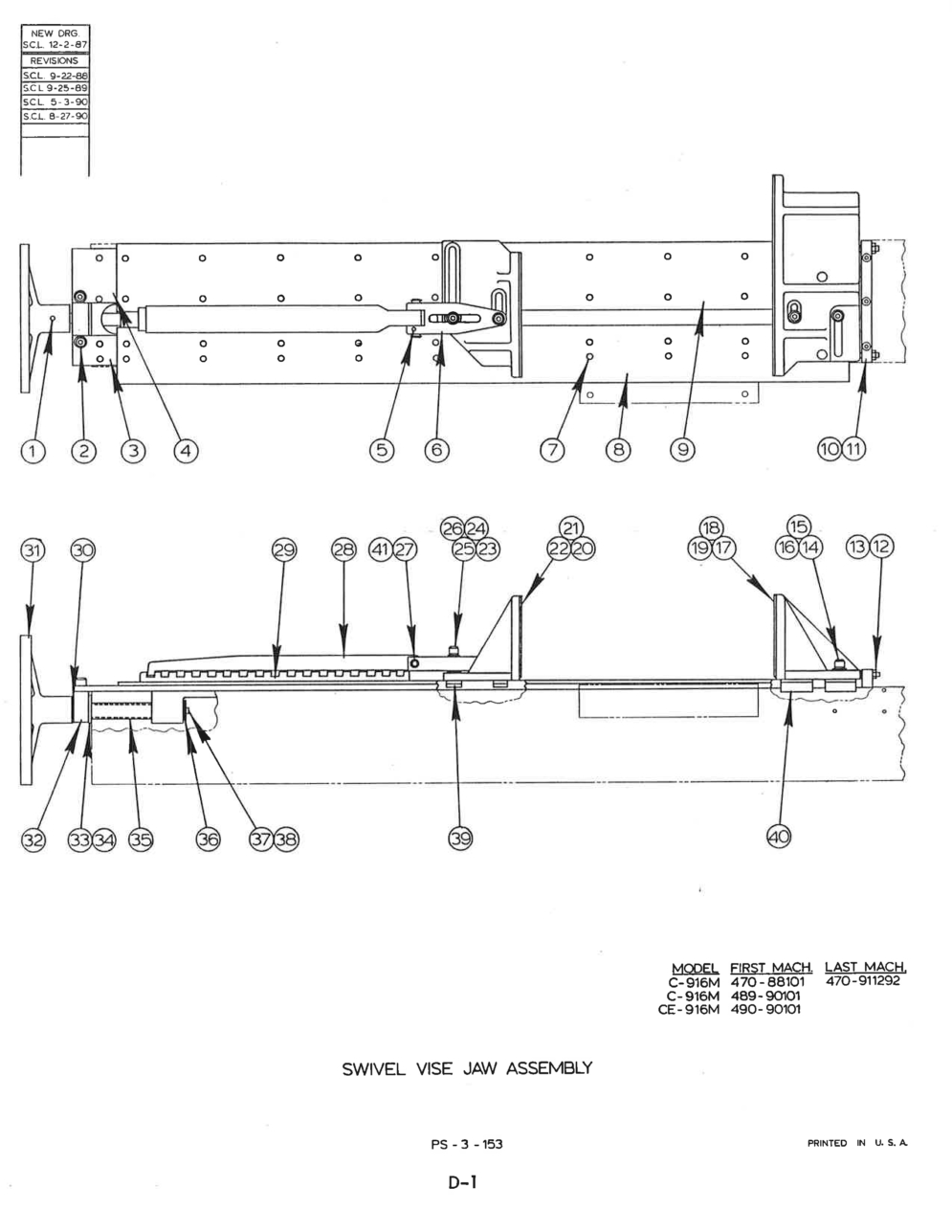

Exploded View Parts Ordering: C-916M_470
C-916M 470 Online Parts Manual
Serial No: 470-88101 End Date 470-911292
Page Code: PS-3-153
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 095-138921 | Description: Swivel Vise Jaw Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-042771 | Description: Roll Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 2 | Part Number: 091-982942 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 093-165843 | Description: Front Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 093-165850 | Description: Rear Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: **5 | Part Number: 091-045690 | Description: Screw, Soc. Set #6-32NC x 1/4 (Self-Locking)(If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 090-231572 | Description: Link | Units Per Assembly: 1 | Availability: In Stock | Price: $194.32 |
| Index No Ref.: 7 | Part Number: 091-998138 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 (Low Head) | Units Per Assembly: 32 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 094-151594 | Description: Front Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 094-151610 | Description: Rear Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 093-165769 | Description: Alignment Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-982801 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-984427 | Description: Screw, Soc. Set 5/16-18NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-991232 | Description: Nut, Hex. Jam 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Cap3/8-16NC x 1-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 134-054147 | Description: Washer | Units Per Assembly: 4 | Availability: In Stock | Price: $5.47 |
| Index No Ref.: 17 | Part Number: 095-138970 | Description: Fixed Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 093-165777 | Description: Wear Plate (If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head)(If Supplied) | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 20 | Part Number: 095-126488 | Description: Movable Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 093-165785 | Description: Wear Plate (If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head)(If Supplied) | Units Per Assembly: 6 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 091-982850 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 2-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 26 | Part Number: 091-704767 | Description: Washer(If Supplied) | Units Per Assembly: 4 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 27 | Part Number: 091-795799 | Description: Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $29.53 |
| Index No Ref.: 28 | Part Number: 093-148849 | Description: Pawl | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 094-141017 | Description: Rack | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *30 | Part Number: 091-042846 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $9.22 |
| Index No Ref.: *31 | Part Number: 093-139970 | Description: Handwheel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: *32 | Part Number: 093-146447 | Description: Bearing Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-087494 | Description: Thrust Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $10.17 |
| Index No Ref.: 34 | Part Number: 091-767590 | Description: Hardened Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: *35 | Part Number: 093-148997 | Description: Vise Lock Screw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-099937 | Description: Washer | Units Per Assembly: 1 | Availability: In Stock | Price: $3.26 |
| Index No Ref.: 37 | Part Number: 091-982363 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 38 | Part Number: 090-035593 | Description: Washer, Lock 1/4 Hi-Collar | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 39 | Part Number: 091-707406 | Description: Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 093-047843 | Description: Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 135-096139 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: Not Shown: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-707331 | Description: Pin(For Angle Cutting) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: Items Marked Used On Assembly #091-795914 Handwheel and Screw Sub-Assembly with Mounting Hardware. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: **NOTE: Some Machines Have Larger Set Screw 1/4-20NC x 1/4; Order#091-984229. | Units Per Assembly: | Availability: Call For Info | Price: |
