Exploded View Parts Ordering: C-916M_432
C-916M 432 Online Parts Manual
Serial No: 432-83101 End Date 432-84102
Page Code: PS-9-185
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|

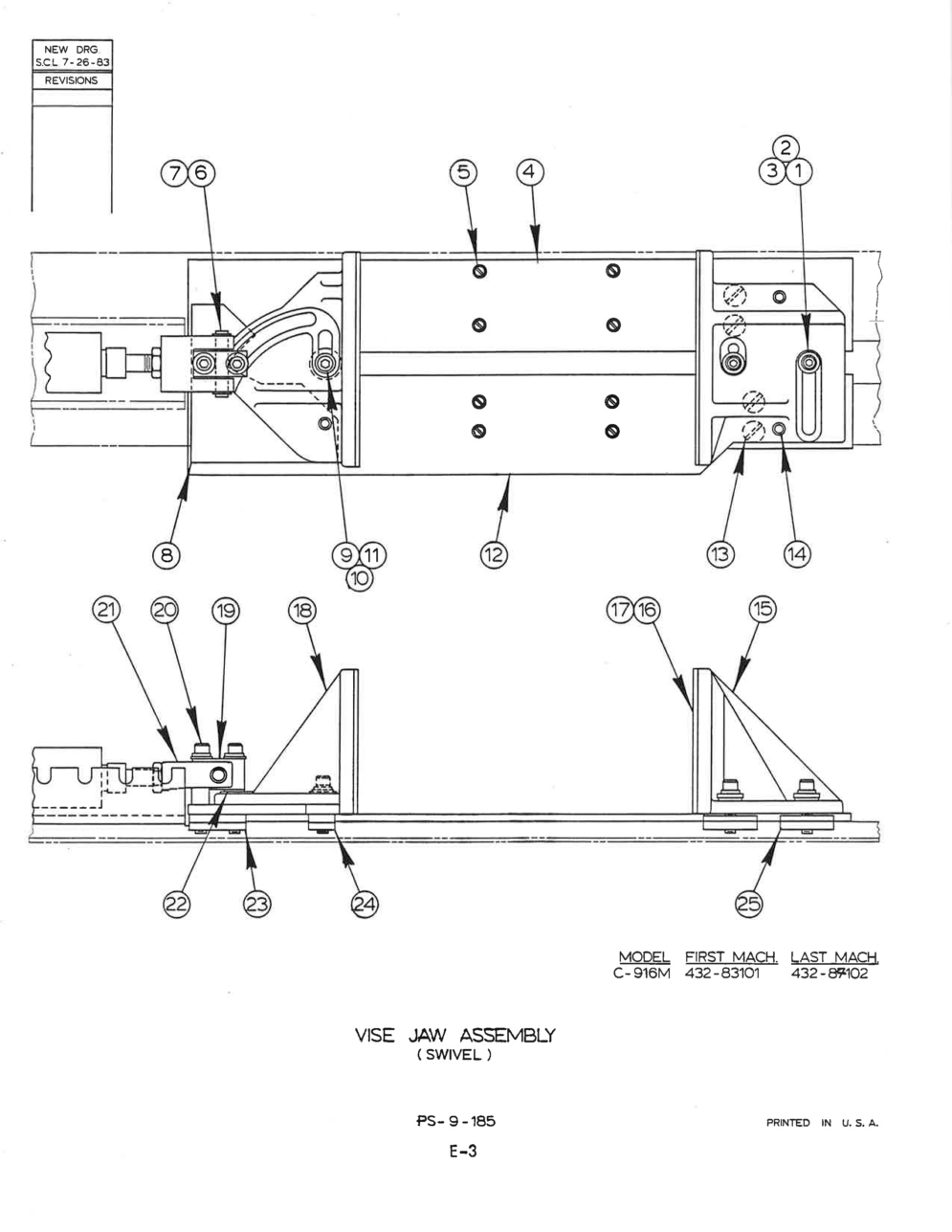

| Index No Ref.: Ref. | Part Number: 084-122654 | Description: Vise Jaw Assembly (Swivel) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-982827 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 090-051509 | Description: Washer, Lock 3/8 Hi-Collar | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-704767 | Description: Washer | Units Per Assembly: 4 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 4 | Part Number: 094-122637 | Description: Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-987594 | Description: Screw, Flat Hd. Mach. 1/4-20NC x 1/2 | Units Per Assembly: 24 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-253518 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-193649 | Description: Grip Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-406587 | Description: Plate Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-066883 | Description: Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 114-004732 | Description: Dowel Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-317965 | Description: Loctite (#311) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-982835 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 11 | Part Number: 091-419242 | Description: Spacer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 094-122629 | Description: Wear Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-987719 | Description: Screw, Flat Hd. Mach. 3/8-16NC x 3/4 | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-314732 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-406579 | Description: Fixed Jaw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-051488 | Description: Fixed Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-220269 | Description: Drill Bushing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-317965 | Description: Loctite (#311) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-130680 | Description: Wear Plate | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-591339 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 (Low Head) | Units Per Assembly: 12 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 18 | Part Number: 091-406561 | Description: Movable Jaw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-051504 | Description: Movable Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-220269 | Description: Drill Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-317965 | Description: Loctite (#311) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 093-057214 | Description: Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-982876 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-578849 | Description: Clevis | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 093-047835 | Description: Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-406553 | Description: Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 093-047843 | Description: Tee | Units Per Assembly: 2 | Availability: Call For Info | Price: |
