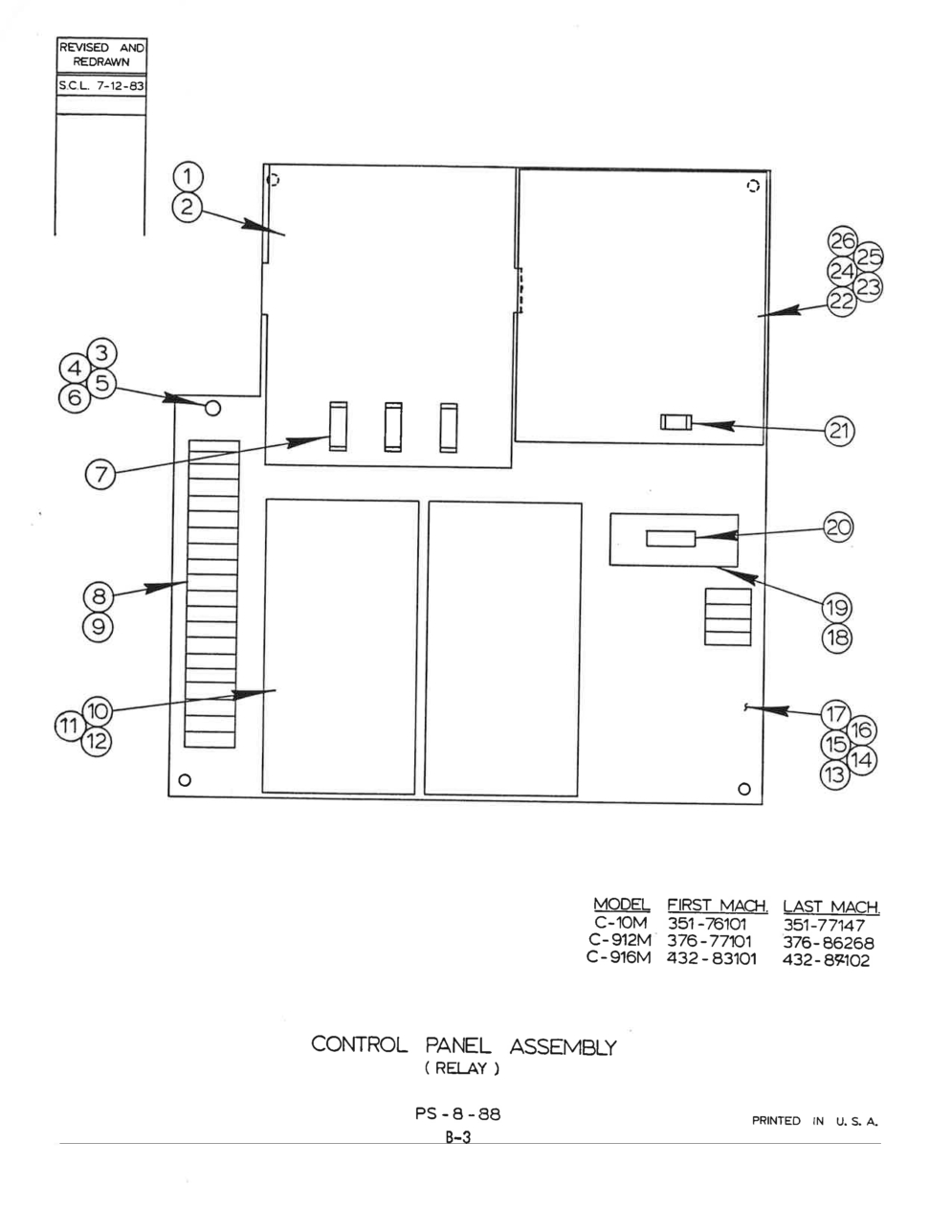

Exploded View Parts Ordering: C-916M_432
C-916M 432 Online Parts Manual
Serial No: 432-83101 End Date 432-84102
Page Code: PS-8-88
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 091-553727 | Description: Control Panel Assembly (Relay)(208 V) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-434704 | Description: Control Panel Assembly (Relay)(240 V) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-434712 | Description: Control Panel Assembly (Relay)(380 V) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-574657 | Description: Control Panel Assembly (Relay)(480 V) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-574665 | Description: Control Panel Assembly (Relay)(575 V) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-050179 | Description: Disconnect Switch (600 V,30 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988659 | Description: Screw, Rd. Hd. Mach.#10-24NC x 1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-047704 | Description: Ground Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-391946 | Description: Ground Terminal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-988758 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-991125 | Description: Nut, Hex. #10-24NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-338657 | Description: Fuse (25 Amp)(208 V,240 V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338632 | Description: Fuse (15 Amp)(380 V,480 V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338624 | Description: Fuse (10 Amp)(575 V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-349720 | Description: Terminal Block | Units Per Assembly: 23 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-349738 | Description: Terminal Block End Section | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-220079 | Description: Magnetic Starter | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof Ext | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 094-039856 | Description: Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-368902 | Description: U.L. Label | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-391854 | Description: Escutcheon (Use Copper Wire Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-095570 | Description: Escutcheon (Electrical Schematic No.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-316729 | Description: Label (Caution) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-100628 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-988550 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-338368 | Description: Fuse (2 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-338426 | Description: Fuse (5 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-473026 | Description: Transformer (208 V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-461344 | Description: Transformer (240 V,480 V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 090-447095 | Description: Transformer (380 V,575 V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-990200 | Description: Screw, Truss Hd. Mach. 1/4-20NC x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-993741 | Description: Washer, Lock 1/4 Shakeproof Ext | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-992610 | Description: Washer, Flat 1/4 S.A.E. Std | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-991174 | Description: Nut, Hex. Jam 1/4-20NC | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: FOLLOWING NOT SHOWN: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-971713 | Description: Wire Marker | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971853 | Description: Wire, #12 Black(Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971879 | Description: Wire, #14 White(Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971903 | Description: Wire, #14 Red(Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971952 | Description: Wire, #14 Green/Yellow(Flamenal) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: | Part Number: 091-971119 | Description: Rubber Gasket (1/4 x1/2) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-193995 | Description: O-Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-988733 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-993196 | Description: Washer, Lock #10 Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
