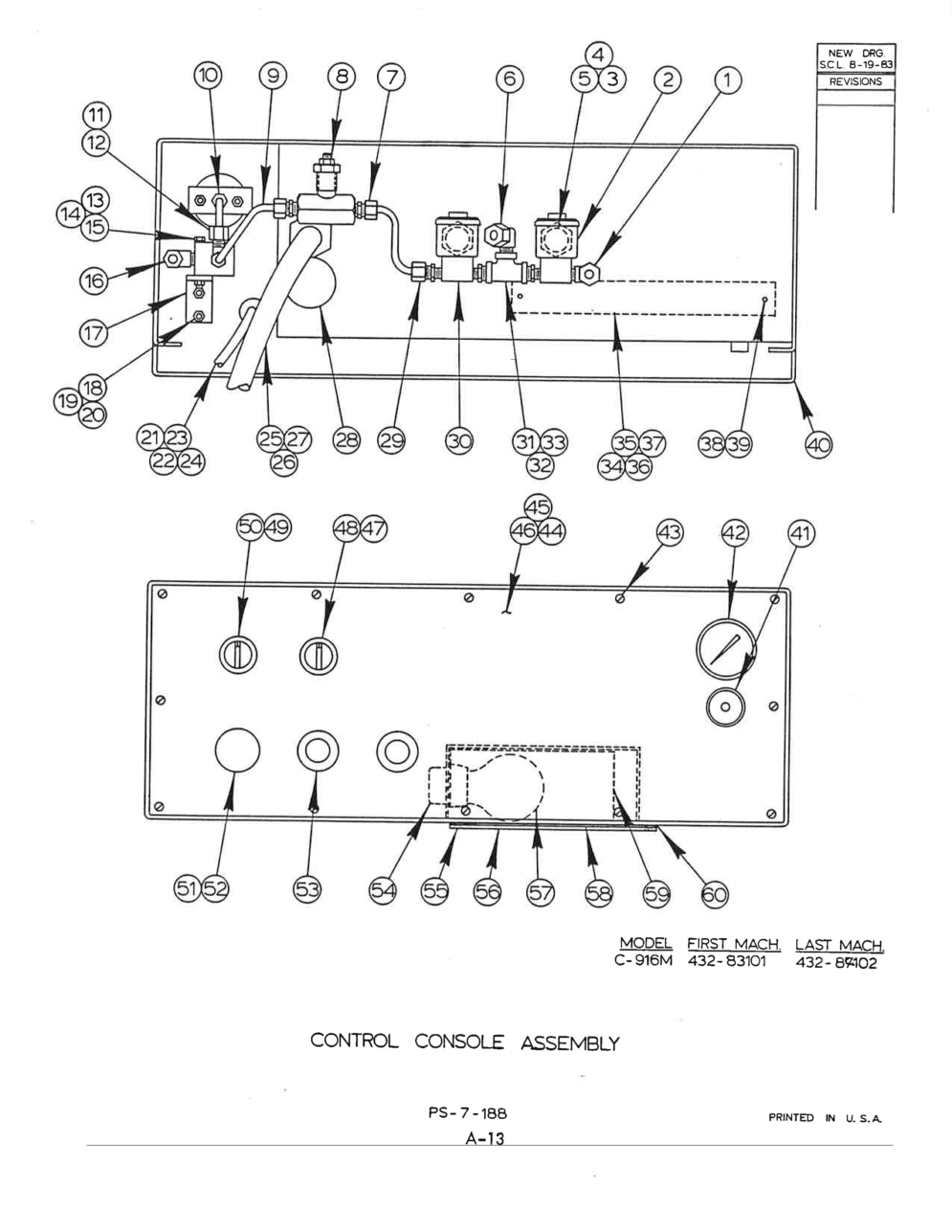

Exploded View Parts Ordering: C-916M_432
C-916M 432 Online Parts Manual
Serial No: 432-83101 End Date 432-84102
Page Code: PS-7-188
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 091-577619 | Description: Control Console Assembly (English) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-579193 | Description: Control Console Assembly (International) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 093-090587 | Description: 90 Degrees Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-194068 | Description: Solenoid Valve(50/60 Hz) | Units Per Assembly: 1 | Availability: In Stock | Price: $197.02 |
| Index No Ref.: 3 | Part Number: 090-158189 | Description: Conduit Nipple | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 090-145053 | Description: O-Ring | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-090579 | Description: 90 Degrees Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 093-090058 | Description: Male Connector | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-408476 | Description: Needle Valve | Units Per Assembly: 1 | Availability: In Stock | Price: $155.47 |
| Index No Ref.: 9 | Part Number: 091-971291 | Description: Steel Tubing 1/4 O.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 093-090322 | Description: Female Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 093-091221 | Description: Male Run Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 105-115174 | Description: Hex. Reducer Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-980136 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 1-3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 091-991158 | Description: Nut, Hex. 1/4-20NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 093-090595 | Description: 90 Degrees Male Elbow | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-314948 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-987784 | Description: Screw, Flat Hd. Mach. #8-32NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-993713 | Description: Washer, Lock #8 Shakeproof Ext | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-991091 | Description: Nut, Hex. Jam #8-32NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-151424 | Description: 90 Degrees Cord Grip Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-972208 | Description: Extention Cord (#16-3) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-971713 | Description: Wire Maker | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-395145 | Description: Conduit Sub-Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-144809 | Description: Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 135-095214 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-351080 | Description: Hole Seal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 093-090041 | Description: Male Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-221200 | Description: Solenoid Valve (50/60 Hz) | Units Per Assembly: 1 | Availability: In Stock | Price: $256.10 |
| Index No Ref.: 31 | Part Number: 135-024743 | Description: Pipe Tee | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 135-024560 | Description: Hex. Reducer Bushing | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 114-045287 | Description: Close Nipple | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-349695 | Description: Channel Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-349704 | Description: End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-349712 | Description: Channel | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-349688 | Description: Terminal Block | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-988659 | Description: Screw, Rd. Hd. Mach. #10-24NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 091-993196 | Description: Washer, Lock #10 Std | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 095-033296 | Description: Control Console Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-184994 | Description: Relief Valve | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-702662 | Description: Feed Gauge Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-313411 | Description: Gauge | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-118107 | Description: Escutcheon | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach .#10-24NC x 3/8 | Units Per Assembly: 14 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 094-049780 | Description: Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 091-579185 | Description: Pushbutton Panel Assembly (English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-579201 | Description: Pushbutton Panel Assembly (International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 095-115002 | Description: Escutcheon (English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-115010 | Description: Escutcheon (International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 090-152415 | Description: Selector Switch (3-Position) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-009753 | Description: Contact Block (2-NC) | Units Per Assembly: 2 | Availability: In Stock | Price: $200.77 |
| Index No Ref.: 49 | Part Number: 090-152415 | Description: Selector Switch (3-Position) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-016634 | Description: Contact Block (2-NO) | Units Per Assembly: 2 | Availability: In Stock | Price: $193.15 |
| Index No Ref.: 51 | Part Number: 090-149618 | Description: Pushbutton Operator (Red Mushroom) | Units Per Assembly: 1 | Availability: In Stock | Price: $384.47 |
| Index No Ref.: 52 | Part Number: 091-048215 | Description: Contact Block (1-NC) | Units Per Assembly: 1 | Availability: In Stock | Price: $130.39 |
| Index No Ref.: 53 | Part Number: 091-459453 | Description: Pushbutton Operator (Illuminous Red w/Contact Block) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 091-224725 | Description: Lampholder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 091-987396 | Description: Screw, Flat Hd. Mach. #6-32NC x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 094-026135 | Description: Frame | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-289538 | Description: Lamp | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 090-394990 | Description: Window | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 094-026143 | Description: Reflector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 090-393257 | Description: Gasket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: FOLLOWING NOT SHOWN: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-351064 | Description: Hole Seal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-038489 | Description: Terminal | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971903 | Description: Wire,#14 Red (Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-971879 | Description: Wire,#14 White (Nylon Jacket) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
