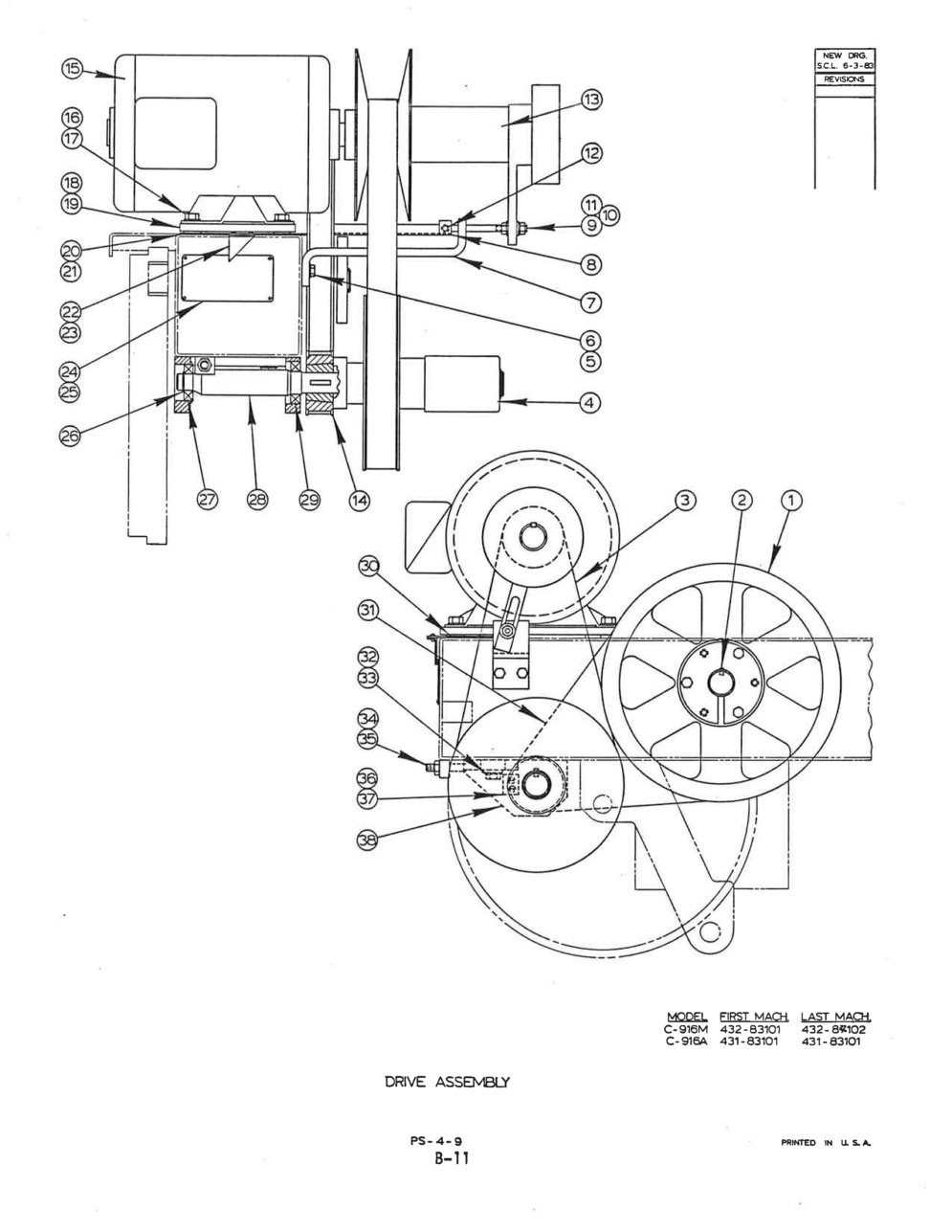

Exploded View Parts Ordering: C-916M_432
C-916M 432 Online Parts Manual
Serial No: 432-83101 End Date 432-84102
Page Code: PS-4-9
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 091-581686 | Description: Drive Assembly (60 Hz) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-579979 | Description: Drive Assembly (50 Hz) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-332619 | Description: Timing Belt Pulley | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 135-028520 | Description: Woodruff Key | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 090-122011 | Description: Belt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-332643 | Description: Variable Speed Pulley | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-980268 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 093-032159 | Description: Torque Arm | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 093-130920 | Description: Arm Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-332783 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-991224 | Description: Nut, Hex. 5/16-18NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-992628 | Description: Washer, Flat 5/16 S.A.E. Std | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-984245 | Description: Screw, Soc. Set 1/4-20NC x 3/8 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-332650 | Description: Variable Speed Pulley (60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-449538 | Description: Variable Speed Pulley (50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-332627 | Description: Timing Belt Pulley(60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-335109 | Description: Timing Belt Pulley(50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-113548 | Description: Electric Motor(208/240/480V, 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-655290 | Description: Electric Motor(380 V, 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-361199 | Description: Electric Motor(575 V, 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-490375 | Description: Electric Motor(50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-980433 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 5/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std | Units Per Assembly: 6 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 094-123619 | Description: Motor Base Plate (60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-129129 | Description: Motor Base Plate (50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 135-056927 | Description: Spacer (50 Hz Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-629410 | Description: Spacer | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-987701 | Description: Screw, Flat Hd. Mach. 5/16-18NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-332809 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-994608 | Description: Screw, Rd. Hd. Self-Tap #6-32NC x 1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 093-132153 | Description: Escutcheon (English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-132165 | Description: Escutcheon (International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-993964 | Description: Screw, Rd. Hd. Drive #2 x 3/16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 135-086643 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 27 | Part Number: 090-188343 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 094-049509 | Description: Countershaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-332775 | Description: Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-368118 | Description: Electrician Tape(3/4" Black) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-332635 | Description: Timing Belt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-980474 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-992644 | Description: Washer, Flat 3/8 Std | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 34 | Part Number: 091-984872 | Description: Screw, Soc. Set 3/8-16NC x 2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 091-332700 | Description: Retainer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-988675 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 094-052131 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
