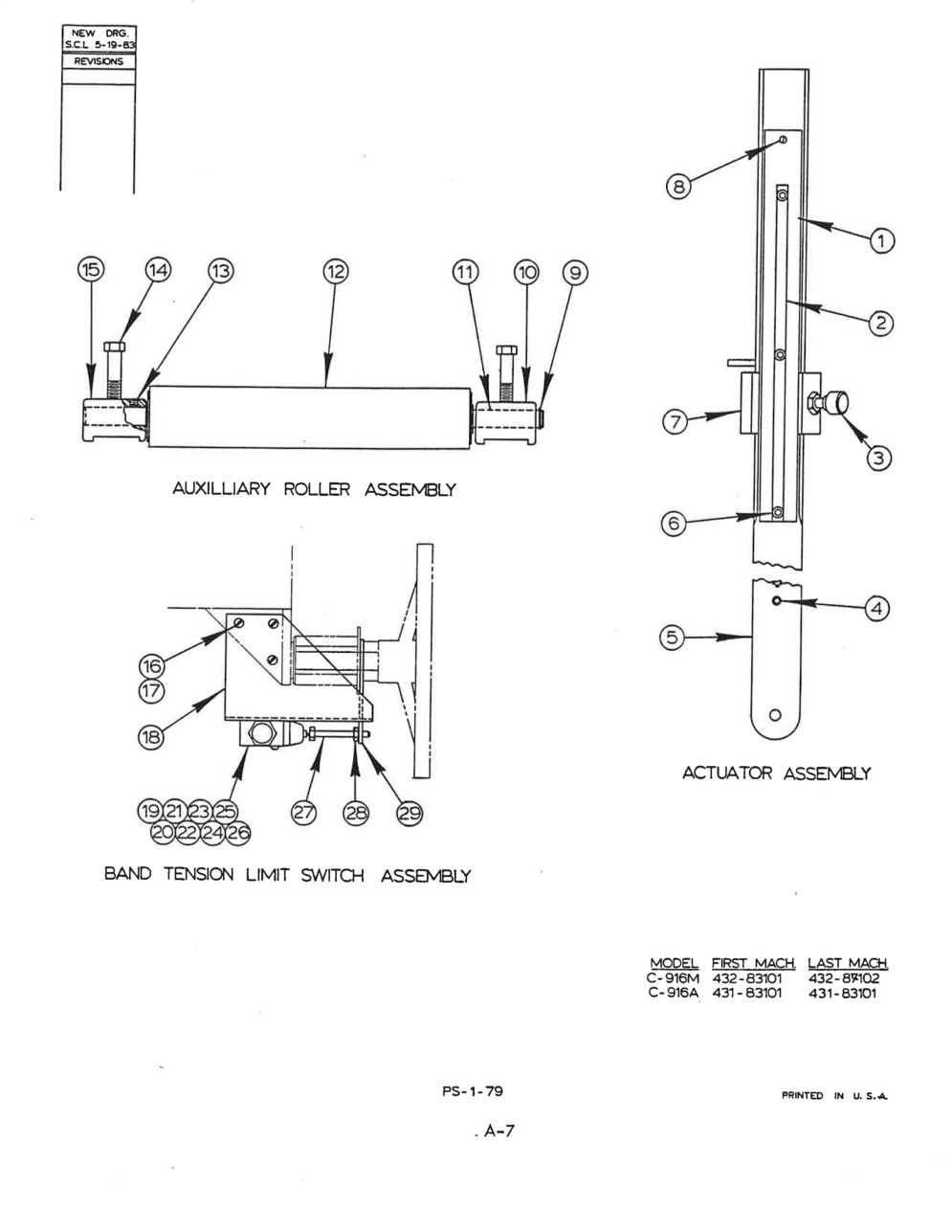

Exploded View Parts Ordering: C-916M_432
C-916M 432 Online Parts Manual
Serial No: 432-83101 End Date 432-84102
Page Code: PS-1-79
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 091-581751 | Description: Actuator Assembly (Standard/English)(C-916A Only) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 091-581769 | Description: Actuator Assembly (Metric/International)(C-916A Only) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-581785 | Description: Escutcheon (Standard/English) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-581777 | Description: Escutcheon (Metric/International) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-335380 | Description: Guard Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-338293 | Description: Thumb Screw Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-310862 | Description: Knob | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-982207 | Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-053041 | Description: Roll Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 093-074672 | Description: Mast | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-983163 | Description: Screw, Soc. Hd. Flat #4-40NC x 3/8 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 093-029734 | Description: Slide Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-988303 | Description: Screw, Rd. Hd. Mach. #4-40NC x 3/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 093-125029 | Description: Auxiliary Roller Assembly (C-916A Only) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 135-086882 | Description: Retaining Ring | Units Per Assembly: 1 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 10 | Part Number: 093-124972 | Description: L.H. Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-578062 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-578054 | Description: 16" Roller Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-339622 | Description: Bearing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-141101 | Description: Star Ring | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-576132 | Description: 16" Tube | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-984351 | Description: Screw, Soc. Set 5/16-18NC x 5/16 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-980714 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 2-1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 093-124964 | Description: R.H. Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 083-069104 | Description: Band Tension Limit Switch Assembly(C-916A, C-916M) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-988774 | Description: Screw, Rd. Hd. Mach .#10-24NC x 1-1/4 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 090-050964 | Description: Spacer | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 093-069110 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 135-094886 | Description: Limit Switch | Units Per Assembly: 1 | Availability: In Stock | Price: $317.90 |
| Index No Ref.: 20 | Part Number: 090-107895 | Description: Cord Grip Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 090-151424 | Description: 90 Degrees Cord Grip Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 090-145053 | Description: O-Ring | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-972208 | Description: Extension Cord (#16-3 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-099557 | Description: Tube Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-988535 | Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-980151 | Description: Screw, Hex. Hd. Cap 1/4-20NC x 2-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-991141 | Description: Nut, Hex. Jam 1/4-20NC | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 29 | Part Number: 091-099754 | Description: Arm | Units Per Assembly: 1 | Availability: Call For Info | Price: |
