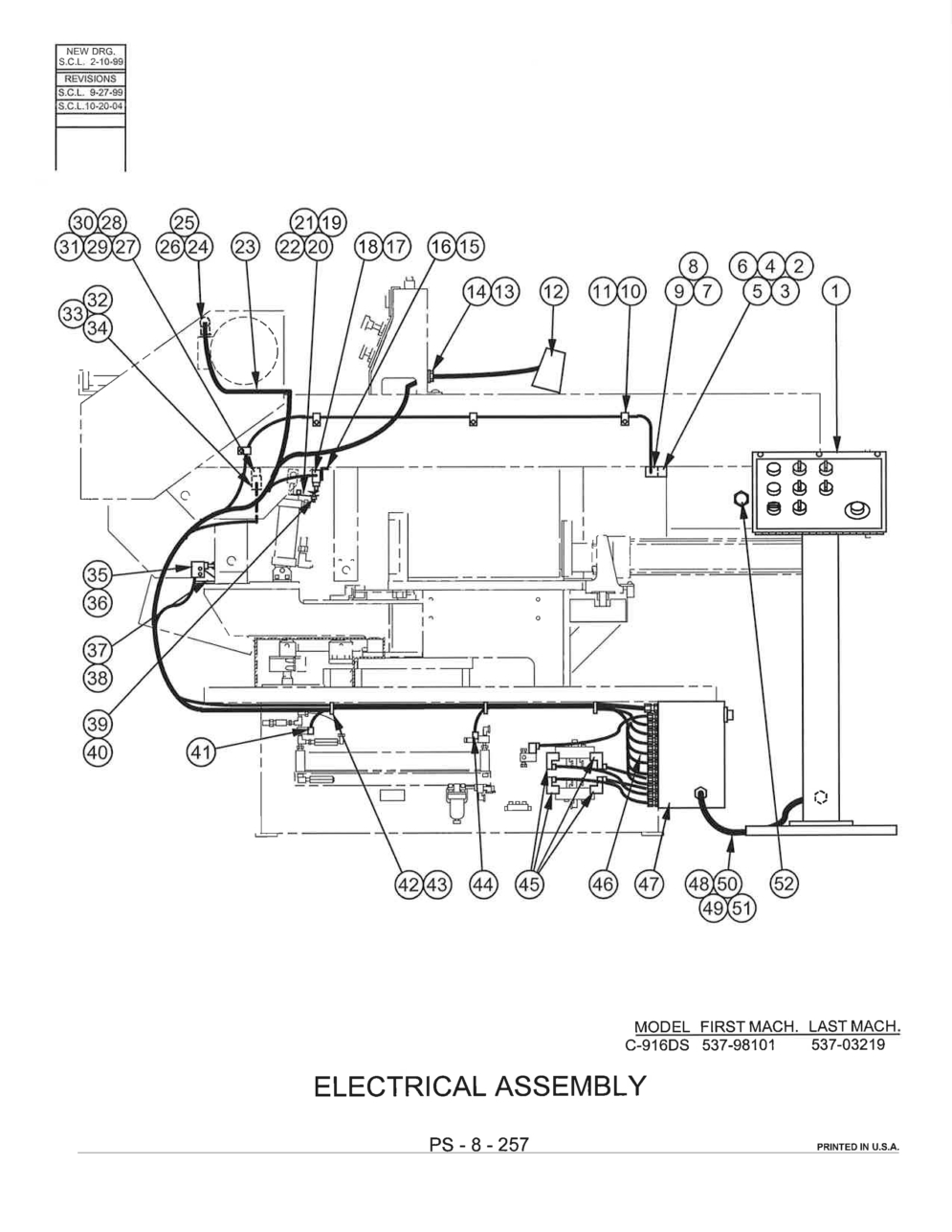

Exploded View Parts Ordering: C-916DS_537
C-916DS 537 Online Parts Manual
Serial No: 537-98101 End Date 537-03219
Page Code: PS-8-257
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: | Description: Pushbutton Station Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2* | Part Number: 092-039460 | Description: Limit Switch Key (Male) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-990408 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 35 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-992149 | Description: Nut, Hex. M4 x 0.7 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-992487 | Description: Washer, Flat M4 | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 091-992974 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7* | Part Number: 092-050566 | Description: Limit Switch (Female) (Door Interlock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 091-990408 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 35 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 092-016880 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 10 | Part Number: 092-061035 | Description: Hose Clamp | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-999748 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: A.R. | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 12 | Part Number: 092-066687 | Description: Worklamp | Units Per Assembly: 1 | Availability: In Stock | Price: $194.01 |
| Index No Ref.: | Part Number: 091-351064 | Description: Hole Seal (Europa) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-077841 | Description: Self-Locking Nut 3/8-18NPT | Units Per Assembly: 1 | Availability: In Stock | Price: $5.36 |
| Index No Ref.: 14 | Part Number: 091-992677 | Description: Washer, Flat 5/8 S.A.E. Std. | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 093-205979 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-999748 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 17 | Part Number: 091-767681 | Description: Limit Switch (Head Down) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 18 | Part Number: 091-989731 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 093-232254 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-994509 | Description: Screw, Soc. Hd. Cap M5 x 0.8 x 12 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 091-993485 | Description: Washer, Lock M5 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-992446 | Description: Washer, Flat M5 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 23 | Part Number: 091-982182 | Description: Electrical Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 090-161605 | Description: 90 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 090-144114 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 090-195439 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27* | Part Number: 092-039460 | Description: Limit Switch Key (Male) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-990408 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 35 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-992149 | Description: Nut, Hex. M4 x 0.7 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-992487 | Description: Washer, Flat M4 | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 31 | Part Number: 091-992974 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32* | Part Number: 092-039320 | Description: Limit Switch (Female) (Door Interlock) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-990408 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 35 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 092-016880 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 35 | Part Number: 091-767673 | Description: Limit Switch (Head Clear) | Units Per Assembly: 1 | Availability: In Stock | Price: $160.99 |
| Index No Ref.: 36 | Part Number: 091-989731 | Description: Screw, Soc. Hd. Cap M4 x 0.7 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 093-233096 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-996629 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 092-075027 | Description: Actuator M6 x 1.0 x 25 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 091-992321 | Description: Nut, Hex. Jam M6 x 1.0 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 091-770545 | Description: Connector Kit | Units Per Assembly: 1 | Availability: In Stock | Price: $33.51 |
| Index No Ref.: 42 | Part Number: 090-174301 | Description: Nylon Clamp | Units Per Assembly: 3 | Availability: In Stock | Price: $40.87 |
| Index No Ref.: 43 | Part Number: 091-992990 | Description: Self-Drilling Screw M4.8 x 13 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-770545 | Description: Connector Kit | Units Per Assembly: 1 | Availability: In Stock | Price: $33.51 |
| Index No Ref.: 45 | Part Number: 092-143916 | Description: Connector (3-Pin Female) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-983321 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 47 | Part Number: | Description: Control Box Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-971598 | Description: Sealtite Conduit 1" I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 090-146903 | Description: Sealtite Connector | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 092-096031 | Description: Sealing Ring w/Retainer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 090-157512 | Description: Insulated Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-681130 | Description: Motion Detector (Optional) | Units Per Assembly: 1 | Availability: In Stock | Price: $912.37 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 092-062223 | Description: Tube Clip | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: *NOTE: To Replace Marked Items, Order #212730 - Limit Switch Replacement Kit. | Units Per Assembly: | Availability: Call For Info | Price: |
