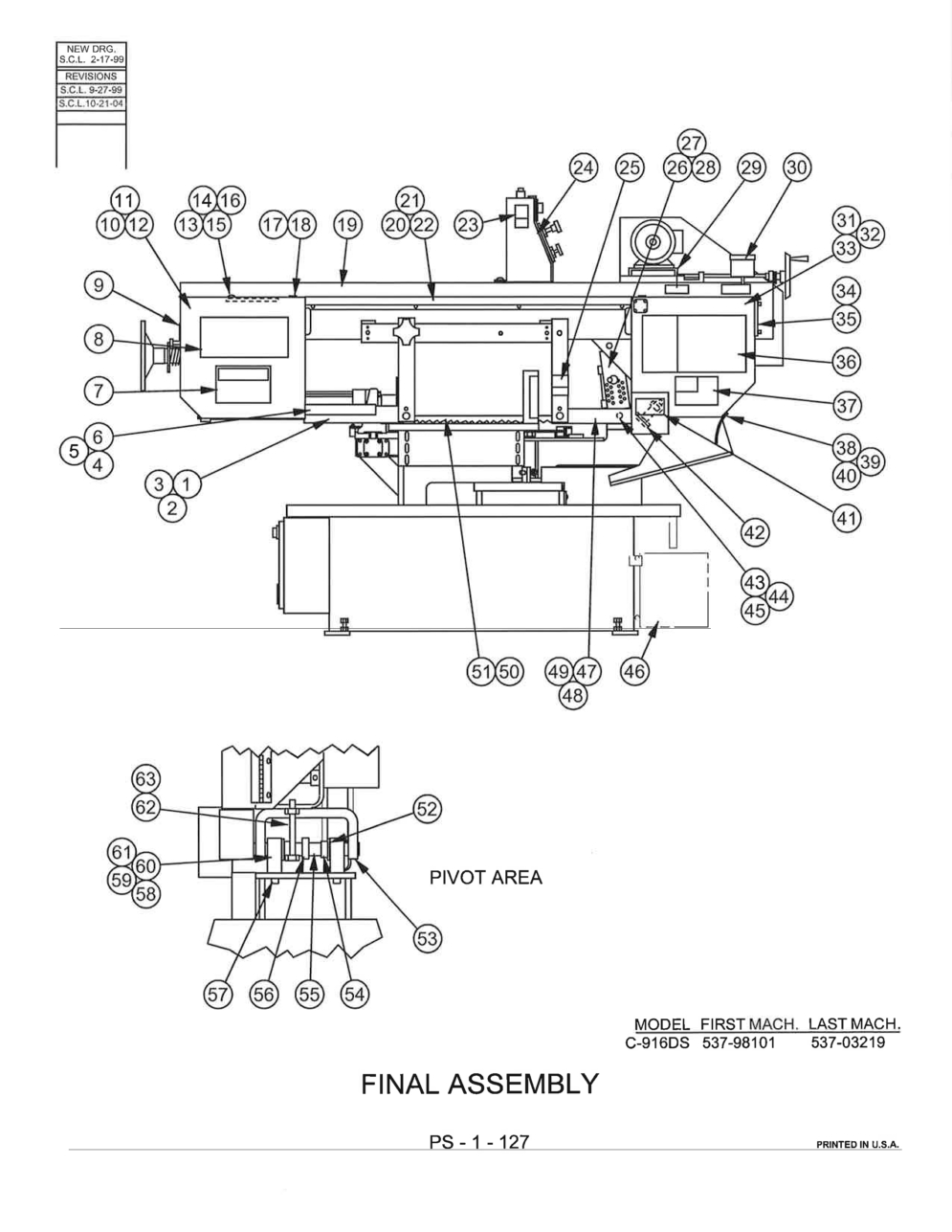

Exploded View Parts Ordering: C-916DS_537
C-916DS 537 Online Parts Manual
Serial No: 537-98101 End Date 537-03219
Page Code: PS-1-127
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 190067 | Description: Final Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 517623 | Description: Main Saw Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 320820 | Description: Band Guard Assembly (Left Hand) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 3 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 4 | Part Number: 320099 | Description: Band Guard Weldment (Upper Left Hand) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 199243 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 6 | Part Number: 199202 | Description: Nut, Hex. M5 x 0.8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 7 | Part Number: 404478 | Description: Escutcheon (Warning) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 8 | Part Number: 416163 | Description: Escutcheon (DoALL) | Units Per Assembly: 1 | Availability: In Stock | Price: $21.47 |
| Index No Ref.: 9 | Part Number: 176072 | Description: Escutcheon (Band Tension) | Units Per Assembly: 1 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 10 | Part Number: 319175 | Description: L.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 199299 | Description: Self-Drilling Screw M4.8 x 13 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 197022 | Description: Nylon Edging | Units Per Assembly: A.R. | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 13 | Part Number: 175478 | Description: Door Stop | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199899 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 16 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 199245 | Description: Locknut M6 x 1.0 (w/Nylon Washer) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 199965 | Description: Washer, Flat M6 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 17 | Part Number: 316583 | Description: Door Latch Spring (Both Doors) | Units Per Assembly: 2 | Availability: In Stock | Price: $15.31 |
| Index No Ref.: 18 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 4 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 19 | Part Number: 517553 | Description: Head Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 320280 | Description: Upper Band Guard Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 202375 | Description: Slip-In Clip | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 4 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 23 | Part Number: 201467 | Description: Label (Warning | Units Per Assembly: 1 | Availability: In Stock | Price: $14.79 |
| Index No Ref.: 24 | Part Number: 519426 | Description: Pneumatic/Hydraulic Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 201465 | Description: Label (Warning | Units Per Assembly: 1 | Availability: In Stock | Price: $13.42 |
| Index No Ref.: 26 | Part Number: 419706 | Description: Workheight Slide Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 323264 | Description: Stop Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 203146 | Description: Detent Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $105.63 |
| Index No Ref.: 29 | Part Number: | Description: Drive Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 518023 | Description: Mist Lube Assembly (Uni-Mist) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 313217 | Description: R.H. Door Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 199299 | Description: Self-Drilling Screw M4.8 x 13 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 197022 | Description: Nylon Edging | Units Per Assembly: A R. | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 34 | Part Number: 205863 | Description: Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 199299 | Description: Self-Drilling Screw M4.8 x 13 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 415169 | Description: Job Selector | Units Per Assembly: 1 | Availability: In Stock | Price: $56.29 |
| Index No Ref.: 37 | Part Number: 201469 | Description: Decal (American Flag) | Units Per Assembly: 1 | Availability: In Stock | Price: $3.81 |
| Index No Ref.: 38 | Part Number: 204227 | Description: Neoprene Deflector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 204225 | Description: Backup Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 160699 | Description: Pop Rivet | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 41 | Part Number: 209652 | Description: Label (Diameters/X-Section Area) | Units Per Assembly: 1 | Availability: In Stock | Price: $3.81 |
| Index No Ref.: 42 | Part Number: 417836 | Description: Band Brush Assembly (See Detail) | Units Per Assembly: 1 | Availability: In Stock | Price: $337.65 |
| Index No Ref.: 43 | Part Number: 323263 | Description: Pin | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 35-009613 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 45 | Part Number: 6-004415 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 518022 | Description: Coolant Assembly (Flood) (Optional) (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 419389 | Description: R.H. Band Guard Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 49 | Part Number: 199244 | Description: Washer, Flat M5 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 50 | Part Number: 206765 | Description: Saw Band (Imperial Bi-Metal Super Silencer) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 304525 | Description: Saw Band Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 126535 | Description: Bronze Thrust Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $10.14 |
| Index No Ref.: 53 | Part Number: 199251 | Description: Screw, Soc. Set M10 x 1.5 x 12 (Cone Pt.) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 54 | Part Number: 201915 | Description: Shaft Collar | Units Per Assembly: 2 | Availability: In Stock | Price: $11.64 |
| Index No Ref.: 55 | Part Number: 320147 | Description: Pivot Shaft | Units Per Assembly: 1 | Availability: In Stock | Price: $386.25 |
| Index No Ref.: 56 | Part Number: 323308 | Description: Cam Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 199680 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 30 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 58 | Part Number: 320596 | Description: Bearing Block | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 201914 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $13.41 |
| Index No Ref.: 59 | Part Number: 176476 | Description: Shim (.003) | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 60 | Part Number: 176477 | Description: Shim (.005) | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 61 | Part Number: 176478 | Description: Shim (.007) | Units Per Assembly: A.R. | Availability: In Stock | Price: $12.09 |
| Index No Ref.: 62 | Part Number: 199249 | Description: Screw, Hex. Hd. Cap M10 x 1.5 x 120 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 199939 | Description: Nut, Hex. M10 x 1.5 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 406872 | Description: Instruction Tag | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 042490 | Description: Shovel/Rake | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 209478 | Description: Instruction Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 209479 | Description: Parts Manual | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 209477 | Description: Adjustment Summary | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 214891 | Description: Shipping Pallet w/Hardware | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320288 | Description: Tag (Installing Band Tension Handwheel) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
