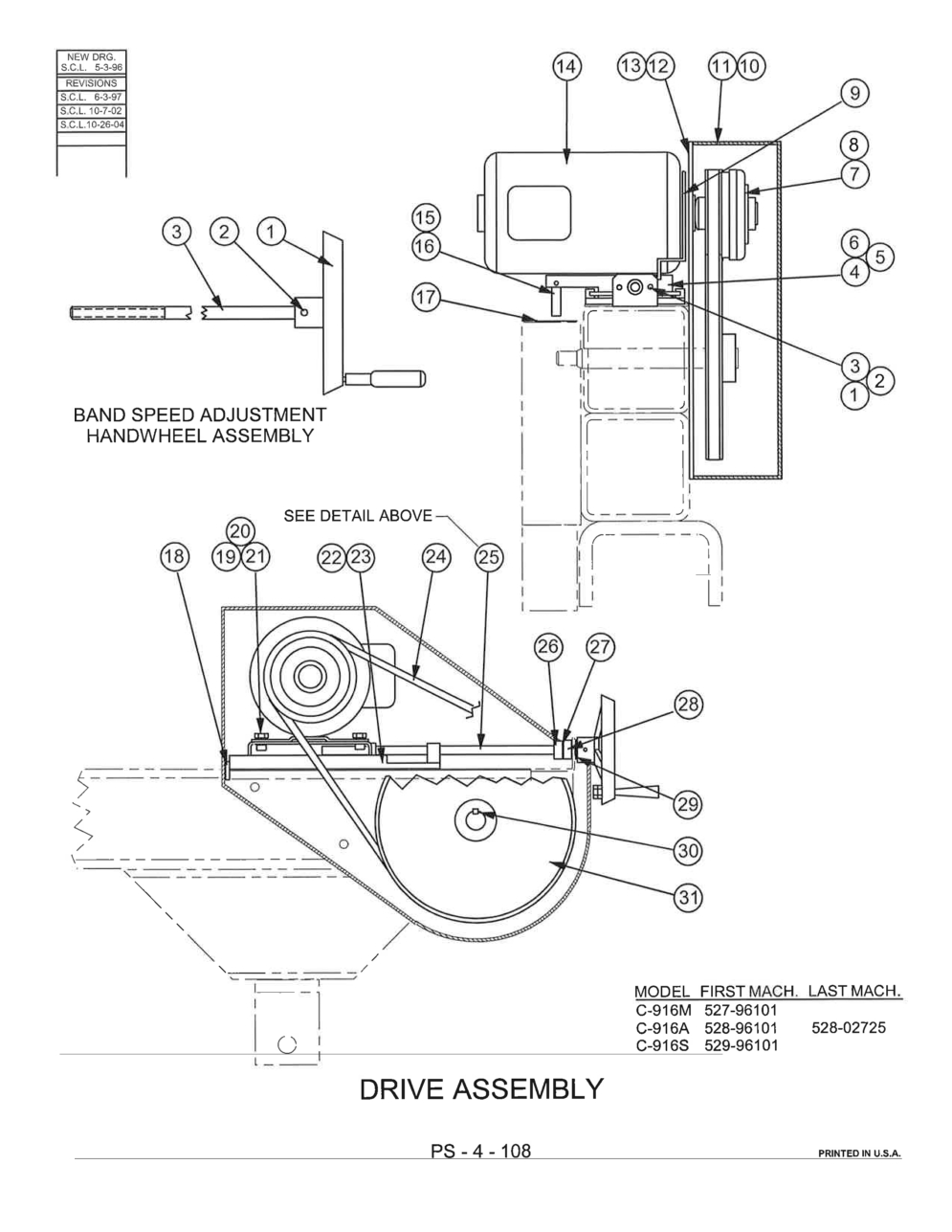

Exploded View Parts Ordering: C-916A_528
C-916A 528 Online Parts Manual
Serial No: 528-96101 End Date 528-02725
Page Code: PS-4-108
Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
---|---|---|---|---|---|
Index No Ref.: Ref. | Part Number: | Description: Drive Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
Index No Ref.: 1 | Part Number: 199899 | Description: Screw, Button Hd., Soc. M6 x 1.0 x 16 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 2 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 3 | Part Number: 199188 | Description: Nut, Hex. M6 x 1.0 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 4 | Part Number: 417913 | Description: Motor Slide Weldment | Units Per Assembly: 1 | Availability: In Stock | Price: $209.12 |
Index No Ref.: | Part Number: 415163 | Description: Motor Slide Weldment (Single Phase Motor Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 5 | Part Number: 417914 | Description: Adaptor Plate (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 6 | Part Number: 199920 | Description: Screw, Flat Hd. Soc. M8 x 1.25 x 20 (Low Speed Option) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
Index No Ref.: 7 | Part Number: 207433 | Description: Variable Pulley | Units Per Assembly: 1 | Availability: In Stock | Price: $391.94 |
Index No Ref.: | Part Number: 175280 | Description: Variable Pulley (Single Phase Motor Only) | Units Per Assembly: 1 | Availability: In Stock | Price: $354.56 |
Index No Ref.: 8 | Part Number: 198986 | Description: Key (3 Phase Motors Only) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 9 | Part Number: 320833 | Description: Cover | Units Per Assembly: 2 | Availability: Call For Info | Price: |
Index No Ref.: 10 | Part Number: 514776 | Description: Cover Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 11 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 6 | Availability: In Stock | Price: $0.20 |
Index No Ref.: 12 | Part Number: 517254 | Description: Cover Mounting Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 13 | Part Number: 199969 | Description: Screw, Button Hd. Soc. M6 x 1.0 x 10 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 14 | Part Number: 209620 | Description: Electric Motor (208V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 209621 | Description: Electric Motor (220V, 230V, 380V, 400V, 415V, 460V) | Units Per Assembly: 1 | Availability: In Stock | Price: $3,522.23 |
Index No Ref.: | Part Number: 209622 | Description: Electric Motor (575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 209639 | Description: Electric Motor (208V, 220V, 230V, 380V, 400V, 415V, 460V) (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 209640 | Description: Electric Motor (575V) (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 133879 | Description: Electric Motor (Single Phase) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 15 | Part Number: 206879 | Description: Pointer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 16 | Part Number: 198979 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 6 | Units Per Assembly: 1 | Availability: In Stock | Price: $3.96 |
Index No Ref.: 17 | Part Number: 179480 | Description: Escutcheon (Band Speed) (60 Hz) | Units Per Assembly: 1 | Availability: In Stock | Price: $7.88 |
Index No Ref.: | Part Number: 179482 | Description: Escutcheon (Band Speed) (50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 179476 | Description: Escutcheon (Band Speed) (60 Hz) (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 209449 | Description: Escutcheon (Band Speed) (50 Hz) (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 18 | Part Number: 199551 | Description: Spring Pin (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 19 | Part Number: 199239 | Description: Screw, Hex. Hd. Cap M8 x 1.25 x 20 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 198026 | Description: Screw, Hex. Hd. Cap 5/16-18NC x 5/8 (Single Phase Motor Only) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
Index No Ref.: 20 | Part Number: 199968 | Description: Washer, Lock M8 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
Index No Ref.: | Part Number: 199323 | Description: Washer, Lock 5/16 Std. (Single Phase Motor Only) | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 21 | Part Number: 198574 | Description: Washer, Flat M8 Wrought | Units Per Assembly: 4 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 199262 | Description: Washer, Flat 5/16 S.A.E. Std. (Single Phase Motor Only) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
Index No Ref.: 22 | Part Number: 417748 | Description: Base Motor Slide | Units Per Assembly: 1 | Availability: In Stock | Price: $224.78 |
Index No Ref.: 23 | Part Number: 199056 | Description: Screw, Soc. Hd. Cap M8 x 1.25 x 16 (Low Head) | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 24 | Part Number: 158815 | Description: V-Belt | Units Per Assembly: 1 | Availability: In Stock | Price: $83.20 |
Index No Ref.: | Part Number: 211937 | Description: V-Belt (Low Speed Option) | Units Per Assembly: 1 | Availability: In Stock | Price: $43.00 |
Index No Ref.: 25 | Part Number: 318133 | Description: Band Speed Adjustment Handwheel Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 26 | Part Number: 34-005410 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 27 | Part Number: 199289 | Description: Washer, Flat M12 Wrought | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 28 | Part Number: 142408 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $7.92 |
Index No Ref.: 29 | Part Number: 199289 | Description: Washer, Flat M12 Wrought | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 30 | Part Number: 4443 | Description: Key | Units Per Assembly: 1 | Availability: In Stock | Price: $1.68 |
Index No Ref.: 31 | Part Number: 158659 | Description: Pulley | Units Per Assembly: 1 | Availability: In Stock | Price: $246.48 |
Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
Index No Ref.: | Part Number: 16160 | Description: 90° Cord Grip Connector (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 149263 | Description: Female Reducer Bushing (Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 19543 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 206885 | Description: Bar (Idler End of Head, Low Speed Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: 199243 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 12 (w/Last Item Above) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
Index No Ref.: Ref. | Part Number: 318133 | Description: Band Speed Adjustment Handwheel Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
Index No Ref.: 1* | Part Number: 216098 | Description: Handwheel (W/Fold-ln Handle) | Units Per Assembly: 1 | Availability: In Stock | Price: $87.10 |
Index No Ref.: 2 | Part Number: 4263 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
Index No Ref.: 3 | Part Number: 317323 | Description: Screw | Units Per Assembly: 1 | Availability: In Stock | Price: $34.89 |
Index No Ref.: | Part Number: | Description: *For Machines Without a Fold-In Handle: | Units Per Assembly: | Availability: Call For Info | Price: |
Index No Ref.: 4 | Part Number: 199226 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 110 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: 5 | Part Number: 198976 | Description: Washer, Flat M10 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 6 | Part Number: 199976 | Description: Nut, Hex. Jam M10 x 1.5 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
Index No Ref.: 7 | Part Number: 207499 | Description: Handle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
Index No Ref.: | Part Number: | Description: NOTE: Items #4 thru 7 are not part of this assembly. | Units Per Assembly: | Availability: Call For Info | Price: |
