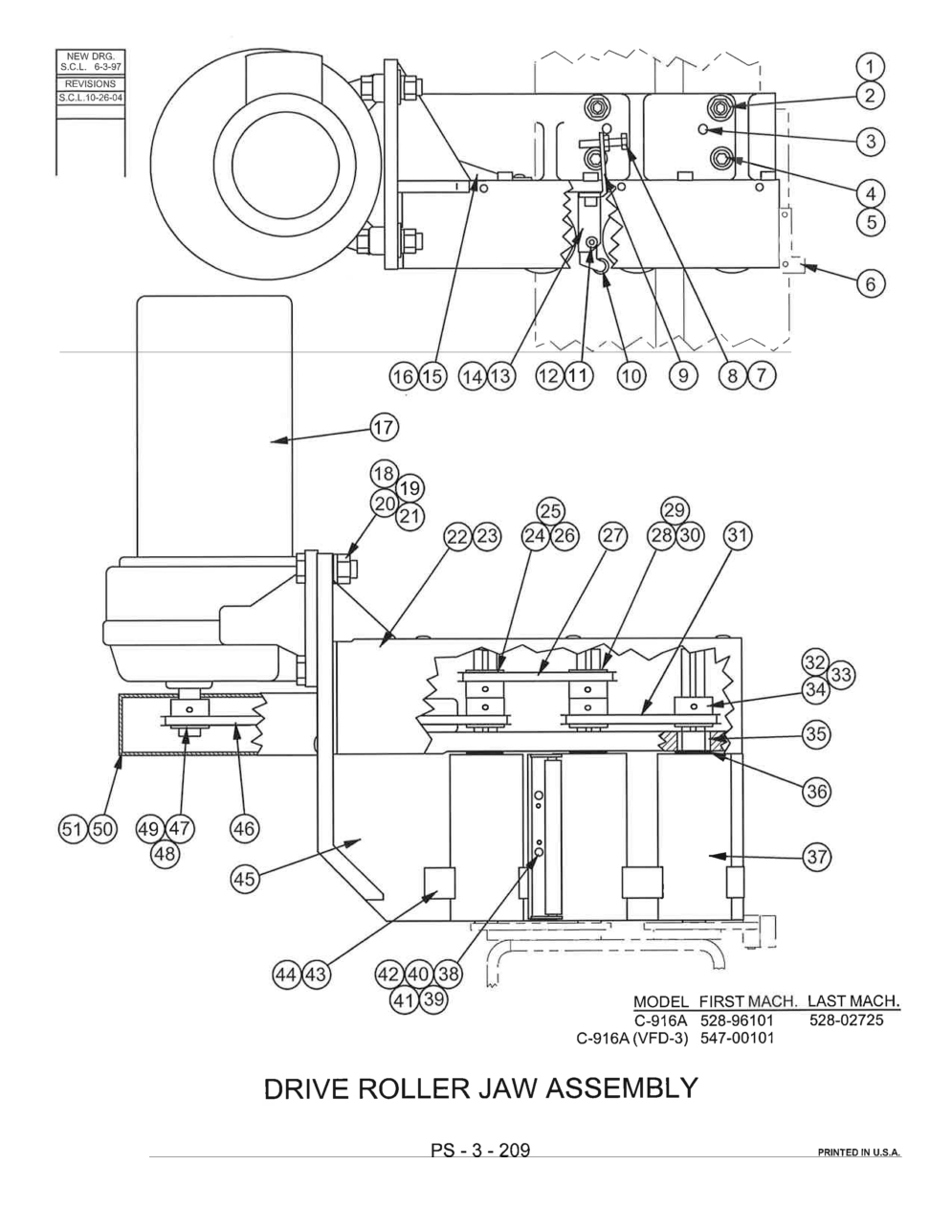

Exploded View Parts Ordering: C-916A_528
C-916A 528 Online Parts Manual
Serial No: 528-96101 End Date 528-02725
Page Code: PS-3-209
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 517572 | Description: Drive Roller Jaw Assembly (Standard) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Ref. | Part Number: 517273 | Description: Drive Roller Jaw Assembly (Knurled Rollers) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 198572 | Description: Screw, Soc. Set M12 x 1.75 x 50 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 199222 | Description: Nut, Hex. Jam M12 x 1.75 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 3 | Part Number: 109364 | Description: Dowel Pin | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 199918 | Description: Screw, Soc. Hd. Cap M12 x 1.75 x 45 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 205188 | Description: Washer, Lock M12 Hi-Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 207511 | Description: Back-Up Assembly (For Small Parts) (Option) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320611 | Description: Back-Up Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 199409 | Description: Screw, Soc. Set M6 x 1.0 x 20 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 199437 | Description: Screw, Hex. Hd. Cap M6 x 1.0 x 30 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 199188 | Description: Nut, Hex. M6 x 1.0 | Units Per Assembly: 1 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 9* | Part Number: 324065 | Description: Actuator Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10* | Part Number: 324182 | Description: Roller Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 320806 | Description: Roller Housing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207473 | Description: Roller | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 13390 | Description: Bushing | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207661 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207680 | Description: Angle | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 216171 | Description: Bar Support | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 176460 | Description: Shaft | Units Per Assembly: 1 | Availability: In Stock | Price: $22.79 |
| Index No Ref.: 12 | Part Number: 35-008582 | Description: Retaining Ring | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 13* | Part Number: 324066 | Description: Actuator Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 199051 | Description: Screw, Soc. Hd. Cap M6 x 1.0 x 12 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 15 | Part Number: 415766 | Description: Rear Chain Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 17 | Part Number: 207352 | Description: Gear Motor (208V, 230V, 380V, 400V, 415V, 460V; 60/50 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207228 | Description: Gear Motor (575V; 60 Hz) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 207449 | Description: Motor Flange (575V Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 199652 | Description: Screw. Hex. Hd. Cap 7/16-14NC x 1-3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 199265 | Description: Washer, Flat 7/16 S.A.E. Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 199326 | Description: Washer, Lock 7/16 Std. | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 199174 | Description: Nut, Hex. 7/16-14NC | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 415763 | Description: Top Chain Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 3 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 24 | Part Number: 202797 | Description: Sprocket | Units Per Assembly: 2 | Availability: In Stock | Price: $200.00 |
| Index No Ref.: 25 | Part Number: 205162 | Description: Spring Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 26 | Part Number: 14213 | Description: Key | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 27 | Part Number: 176651 | Description: Roller Chain | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 202797 | Description: Sprocket | Units Per Assembly: 2 | Availability: In Stock | Price: $200.00 |
| Index No Ref.: 29 | Part Number: 205162 | Description: Spring Pin | Units Per Assembly: 2 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 30 | Part Number: 14213 | Description: Key | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 31 | Part Number: 176651 | Description: Roller Chain | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 202797 | Description: Sprocket | Units Per Assembly: 1 | Availability: In Stock | Price: $200.00 |
| Index No Ref.: 33 | Part Number: 205162 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 34 | Part Number: 14214 | Description: Key | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 35 | Part Number: 176480 | Description: DU Sleeve Bearing | Units Per Assembly: 3 | Availability: In Stock | Price: $3.53 |
| Index No Ref.: 36 | Part Number: 5-004306 | Description: Spacer | Units Per Assembly: 3 | Availability: In Stock | Price: $16.12 |
| Index No Ref.: 37 | Part Number: 417593 | Description: Roller (Standard) | Units Per Assembly: 3 | Availability: In Stock | Price: $332.29 |
| Index No Ref.: | Part Number: 417594 | Description: Roller (Knurled) | Units Per Assembly: 3 | Availability: In Stock | Price: $324.32 |
| Index No Ref.: 38 | Part Number: 199728 | Description: Screw, Button Hd. Soc. M4 x 0.7 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 39 | Part Number: 4213 | Description: Spring Pin (If Supplied) | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 40 | Part Number: 133476 | Description: Shim (.003) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 133478 | Description: Shim (.010) | Units Per Assembly: A.R. | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 42 | Part Number: 17896 | Description: Shim (.015) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 320612 | Description: Bearing Block | Units Per Assembly: 1 | Availability: In Stock | Price: $396.94 |
| Index No Ref.: 44 | Part Number: 199896 | Description: Screw, Soc. Hd. Cap M10 x 1.5 x 25 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 517274 | Description: Roller And Gear Motor Housing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 176859 | Description: Roller Chain | Units Per Assembly: 1 | Availability: In Stock | Price: $212.42 |
| Index No Ref.: 47 | Part Number: 202797 | Description: Sprocket | Units Per Assembly: 1 | Availability: In Stock | Price: $200.00 |
| Index No Ref.: 48 | Part Number: 205162 | Description: Spring Pin | Units Per Assembly: 1 | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 49 | Part Number: 172717 | Description: Loctite (Dry-Loc Green 202) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 317219 | Description: Chain Cover Weldment | Units Per Assembly: 1 | Availability: In Stock | Price: $865.00 |
| Index No Ref.: 51 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: | Part Number: | Description: *NOTE: Before Serial #528-00567: | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 320828 | Description: Actuator Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 320807 | Description: Roller Assembly | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 316598 | Description: Acuator Mounting Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: To Replace These Items, Order #216452 | Units Per Assembly: | Availability: Call For Info | Price: |
