Exploded View Parts Ordering: C-916A (VFD-3)_547
C-916A (VFD-3) 547 Online Parts Manual
Serial No: 547-00101 End Date 547-12471

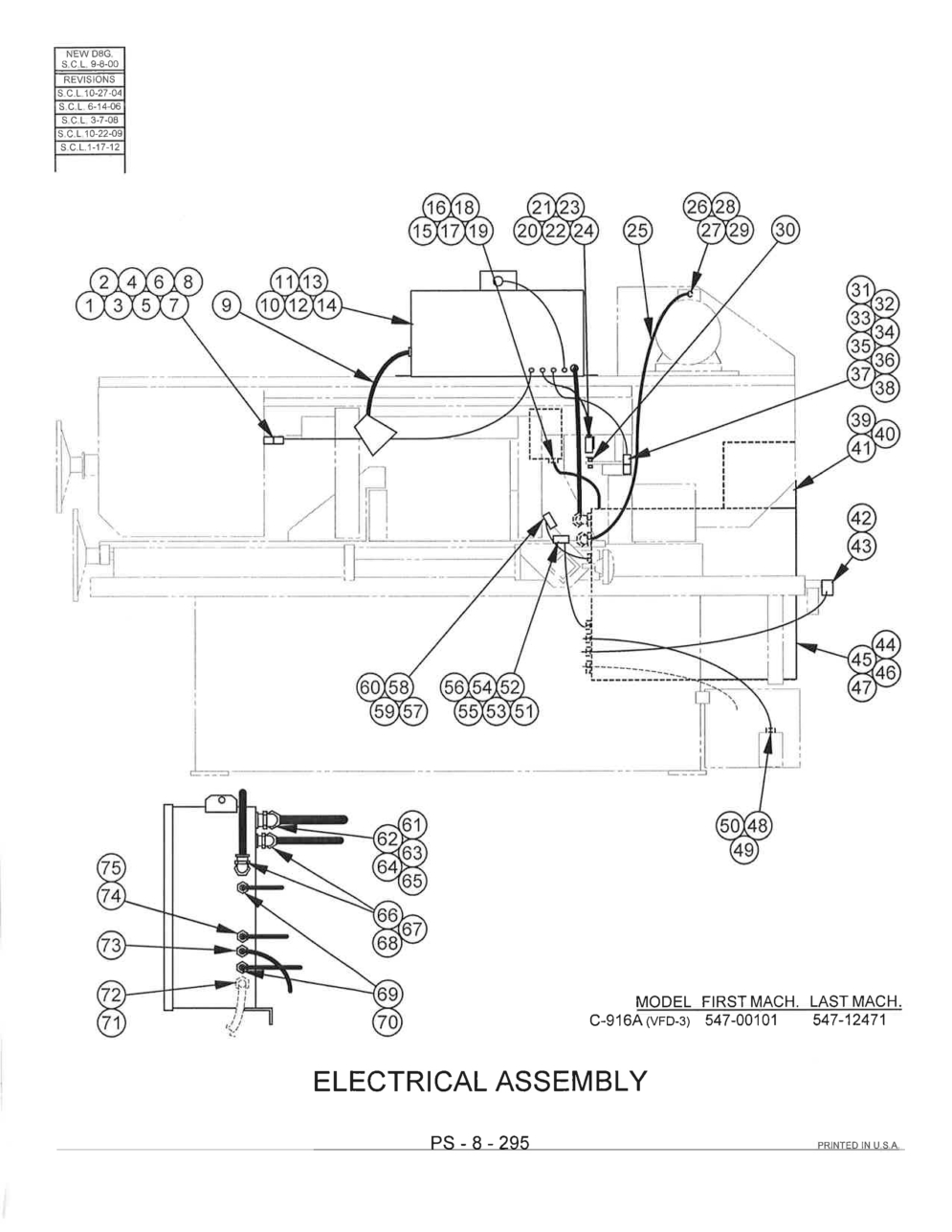

Page Code: PS-8-295
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 219075 | Description: Electrical Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 215624 | Description: Limit Switch (Door Interlock) | Units Per Assembly: 1 | Availability: In Stock | Price: $163.90 |
| Index No Ref.: 2 | Part Number: 221855 | Description: Key Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $20.33 |
| Index No Ref.: 3 | Part Number: 221854 | Description: Shim (Key Bracket) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 215619 | Description: Cord Grip Connector (.236-.472) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.51 |
| Index No Ref.: 5 | Part Number: 197332 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 6 | Part Number: 198602 | Description: Screw, Button Hd. Soc. M4-0.7 x 35 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 167329 | Description: Cable Clamp | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 221545 | Description: Worklamp (Optional) | Units Per Assembly: 1 | Availability: In Stock | Price: $116.18 |
| Index No Ref.: 10 | Part Number: | Description: Pushbutton Panel Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 198972 | Description: Screw, Hex. Hd. Self-Tap M6-1.0 x 16 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 199579 | Description: Washer, Flat M6 Wrought | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 13 | Part Number: 199347 | Description: Washer, Lock M6 | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 14 | Part Number: 176528 | Description: Escutcheon (Electrical Hazard) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.47 |
| Index No Ref.: 15 | Part Number: 15824 | Description: 90° Cord Grip Connector (.562-.625) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 14480 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 15607 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 149263 | Description: Reducer Bushing (If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 15607 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 176768 | Description: Limit Switch (Head Down) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 21 | Part Number: 199439 | Description: Screw, Button Hd. Soc. M4-0.7 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 197344 | Description: Electrical Cord (#18-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.32 |
| Index No Ref.: 23 | Part Number: 320597 | Description: Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5-0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 25 | Part Number: 197218 | Description: Electrical Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 16160 | Description: 90° Cord Grip Connector (.500-.625) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 19543 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 14411 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 133826 | Description: Wire Connector | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 207502 | Description: Elevator Bolt M6 x 1.0 x 25 | Units Per Assembly: 1 | Availability: In Stock | Price: $5.94 |
| Index No Ref.: 31 | Part Number: 215624 | Description: Limit Switch (Door Interlock) | Units Per Assembly: 1 | Availability: In Stock | Price: $163.90 |
| Index No Ref.: 32 | Part Number: 221855 | Description: Key Bracket | Units Per Assembly: 1 | Availability: In Stock | Price: $20.33 |
| Index No Ref.: 33 | Part Number: 221854 | Description: Shim (Key Bracket) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 215619 | Description: Cord Grip Connector (.236-.472) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.51 |
| Index No Ref.: 35 | Part Number: 197332 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 36 | Part Number: 198602 | Description: Screw, Button Hd. Soc. M4-0.7 x 35 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 199297 | Description: Washer, Lock M4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 167329 | Description: Cable Clamp | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 320805 | Description: Shield | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 207171 | Description: Nut Rivet M5-0.8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 41 | Part Number: 199974 | Description: Screw, Button Hd. Soc. M5-0.8 x 10 | Units Per Assembly: 2 | Availability: In Stock | Price: $0.20 |
| Index No Ref.: 42 | Part Number: 176829 | Description: Solenoid Valve (3-Way) | Units Per Assembly: 1 | Availability: In Stock | Price: $309.75 |
| Index No Ref.: 43 | Part Number: 177054 | Description: Solenoid Plug Connector Kit | Units Per Assembly: 1 | Availability: In Stock | Price: $33.51 |
| Index No Ref.: 44 | Part Number: | Description: Control Box Enclosure Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 198972 | Description: Screw, Hex. Hd. Cap M6-1.0 x 16 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 199347 | Description: Washer, Lock M6 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 47 | Part Number: 176528 | Description: Escutcheon (Electrical Hazard) | Units Per Assembly: 1 | Availability: In Stock | Price: $1.47 |
| Index No Ref.: 48* | Part Number: 15619 | Description: Cord Grip Connector (.375-.500) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49* | Part Number: 15607 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 50* | Part Number: 14480 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 176768 | Description: Limit Switch (Stock Forward) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 52 | Part Number: 199439 | Description: Screw, Button Hd. Soc. M4-0.7 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: 197344 | Description: Electrical Cord (#18-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.32 |
| Index No Ref.: 54 | Part Number: 167329 | Description: Cable Clamp | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 9955 | Description: Tubing Clamp | Units Per Assembly: 2 | Availability: In Stock | Price: $2.09 |
| Index No Ref.: 56 | Part Number: 198979 | Description: Screw, Button Hd. Soc. M5-0.7 x 6 | Units Per Assembly: 1 | Availability: In Stock | Price: $3.96 |
| Index No Ref.: 57 | Part Number: 176768 | Description: Limit Switch (Out of Stock) | Units Per Assembly: 1 | Availability: In Stock | Price: $161.40 |
| Index No Ref.: 58 | Part Number: 199439 | Description: Screw, Button Hd. Soc. M4-0.7 x 25 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 197332 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 60 | Part Number: 176005 | Description: Hose Clip | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 14689 | Description: 90° Sealtite Connector | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 14687 | Description: Flange Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 15618 | Description: Bond Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 15751 | Description: Insulated Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 197159 | Description: Sealtite Conduit 1" I.D. | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 16160 | Description: 90° Cord Grip Connector (.500-.625) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 14411 | Description: Flange Washer | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 197218 | Description: Electrical Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 201688 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 2 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 70 | Part Number: 197332 | Description: Electrical Cord (#18-2 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.28 |
| Index No Ref.: 71 | Part Number: 201687 | Description: Cord Grip Connector (.545-.709) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 197218 | Description: Electrical Cord (#14-4 Conductor) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 201688 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 74 | Part Number: 201688 | Description: Cord Grip Connector (.200-.394) | Units Per Assembly: 1 | Availability: In Stock | Price: $5.96 |
| Index No Ref.: 75 | Part Number: 197344 | Description: Electrical Cord (#18-3 Conductor) | Units Per Assembly: A.R. | Availability: In Stock | Price: $1.32 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 9135 | Description: Escutcheon (Limit Switch No.) | Units Per Assembly: 6 | Availability: In Stock | Price: $12.09 |
| Index No Ref.: | Part Number: 199396 | Description: Screw, Rd. Hd. Drive #2 x 3/16 | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 197388 | Description: Wire Wrap (1" Black Poly) | Units Per Assembly: A.R. | Availability: In Stock | Price: $6.02 |
| Index No Ref.: | Part Number: 207752 | Description: Cable Tie Mount | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 107637 | Description: Cable Tie (7.5") | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 106966 | Description: Cable Tie (4.0") | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 168113 | Description: Motion Detector (Optional) | Units Per Assembly: 1 | Availability: In Stock | Price: $912.37 |
| Index No Ref.: | Part Number: 144059 | Description: Escutcheon (Electrical Hazard) (CSA) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
