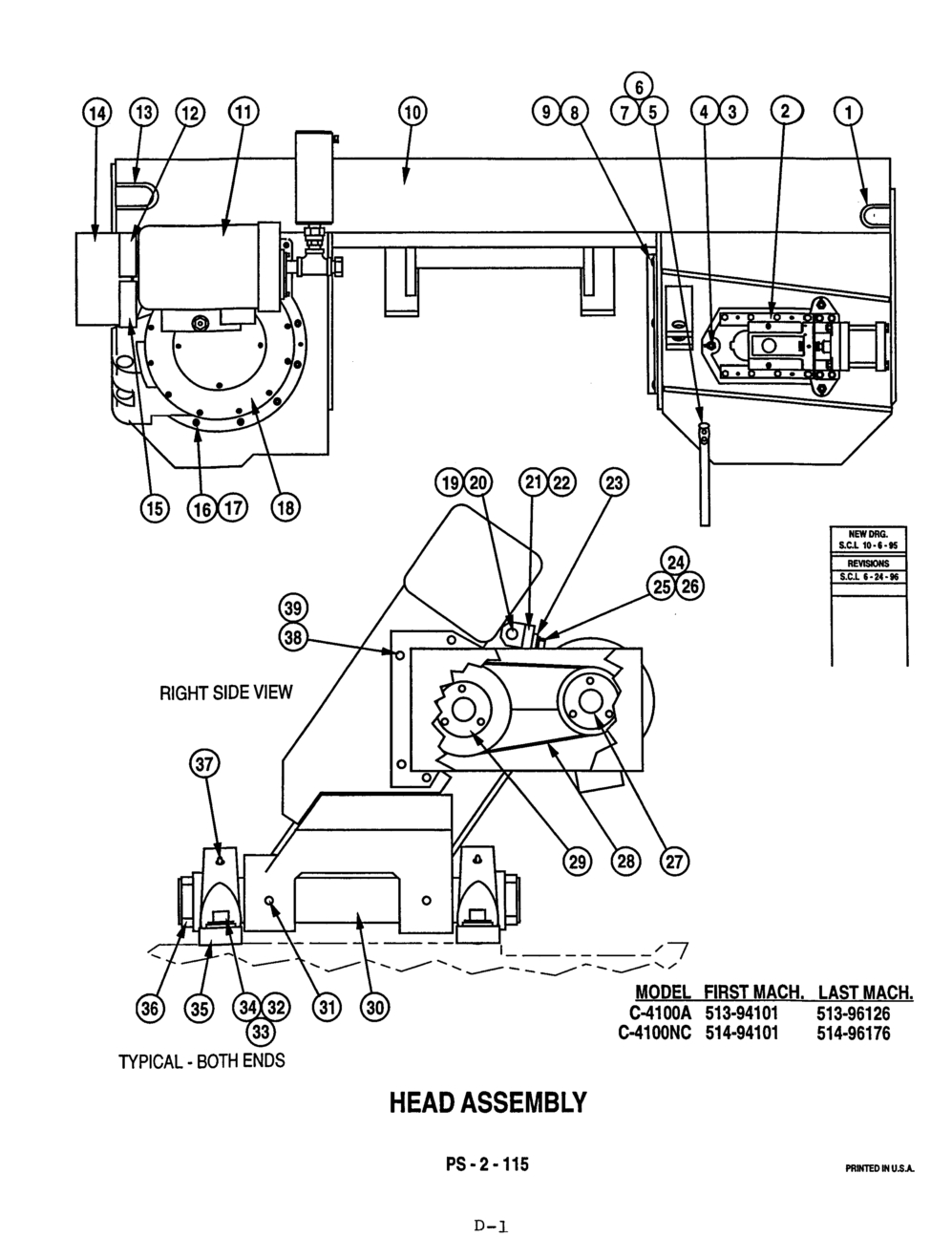

Exploded View Parts Ordering: C-4100NC_514
C-4100NC 514 Online Parts Manual
Serial No: 514-94101 End Date 514-96176
Page Code: PS-2-115
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: 092-051259 | Description: Head Assembly | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-973511 | Description: Grommet Strip (White) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 095-167995 | Description: Band Tension Slide Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-983015 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 3 | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-993279 | Description: Washer, Lock 1/2 Std. | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 094-184793 | Description: Guard/Strut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-982397 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-993212 | Description: Washer, Lock 1/4 Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 8 | Part Number: 093-191666 | Description: Coolant Trough | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 3 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 10 | Part Number: 095-168514 | Description: Head Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-028257 | Description: Electric Motor (208V, 220V, 230V, 380V, 400V, 415V, 460V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031632 | Description: Electric Motor (575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-056431 | Description: Motor Terminal Block (Europa Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 094-175809 | Description: Upper Back Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-983511 | Description: Grommet Strip (White) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 095-167243 | Description: Belt Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 094-175791 | Description: Lower Back Cover | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-980680 | Description: Screw, Hex. Hd. Cap 1/2-13NC x 1-3/4 | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-982959 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-034461 | Description: Transmission Assembly (See Detail) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 092-029784 | Description: Pivot Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 135-017861 | Description: Set Screw Collar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 094-171436 | Description: Pivot Plate Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 094-171444 | Description: Motor Plate Weldment | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-980441 | Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 25 | Part Number: 091-993329 | Description: Washer, Lock 3/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-992644 | Description: Washer, Flat 3/8 S.A.E. Std. | Units Per Assembly: 4 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 27 | Part Number: 092-032085 | Description: Sheave | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 092-047455 | Description: Timing Belt | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-047471 | Description: Sheave | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 094-176971 | Description: Pivot Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-985127 | Description: Screw, Soc. Set 1/2-13NC x 3/4 (Nyloc) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-983072 | Description: Screw, Soc. Hd. Cap 5/8-11NC x 2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-993287 | Description: Washer, Lock 5/8 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-992941 | Description: Hardened Washer | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-794016 | Description: Pillow Block | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 092-009513 | Description: Locknut 1.5-12NF | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 090-087909 | Description: 90 Degree Grease Fitting | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 39 | Part Number: 091-992586 | Description: Washer, Flat #10 S.A.E. Std. | Units Per Assembly: 8 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 091-353151 | Description: Adhesive (Silicone Sealant RTV #732) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-433912 | Description: Grease (Union 76 UNOBA EP2) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
