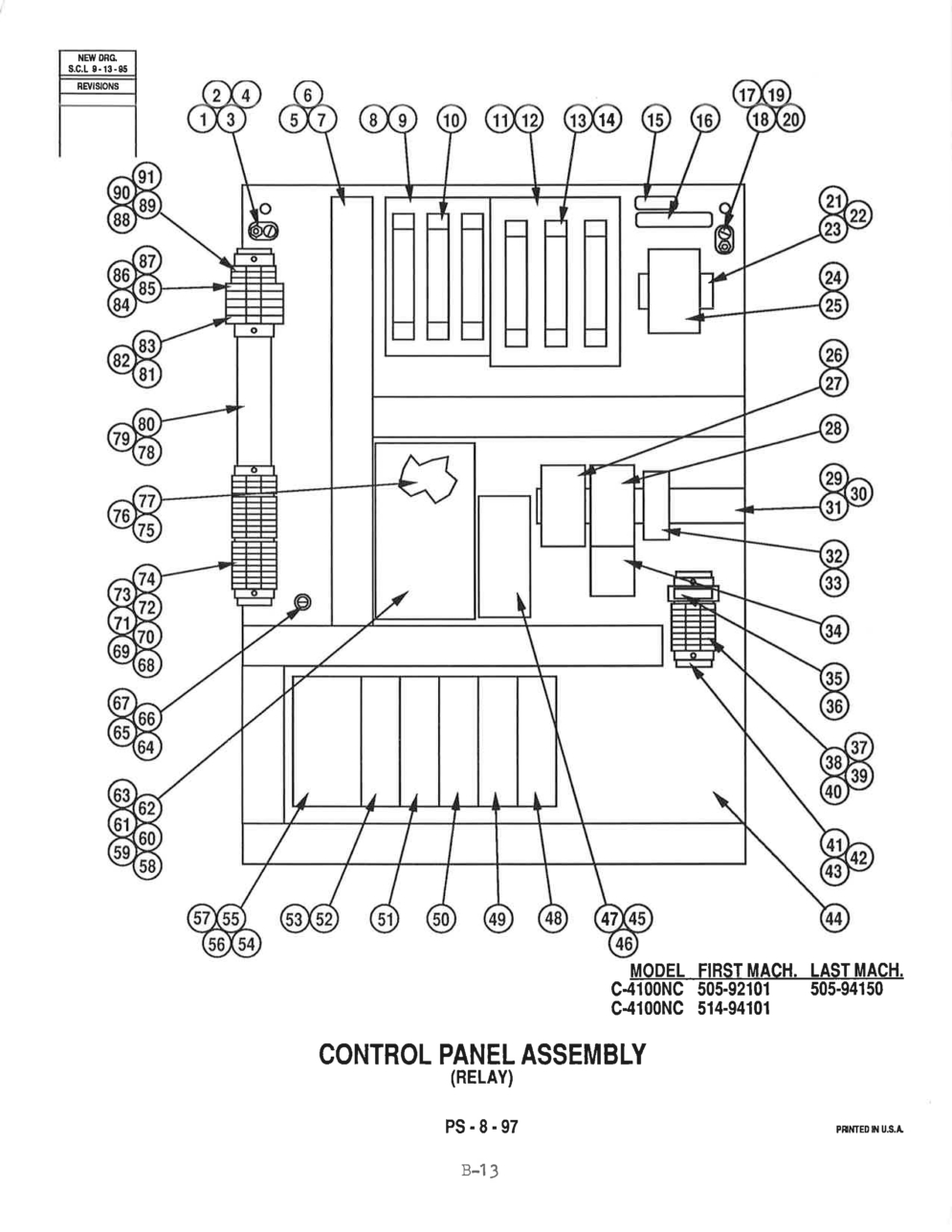

Exploded View Parts Ordering: C-4100NC_505
C-4100NC 505 Online Parts Manual
Serial No: 505-92101 End Date 505-94150
Page Code: PS-8-97
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Ref. | Part Number: | Description: Control Panel Assembly (Relay) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 091-391946 | Description: Ground Terminal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-200632 | Description: Grounding Bus (Europa Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 091-988592 | Description: Screw, Rd. Hd. Mach. #8-32NC x1 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 091-991091 | Description: Nut, Hex. Jam #8-32NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 091-992792 | Description: Washer, Flat #8 S.A.E. Std. (Black Oxide) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 091-974295 | Description: 1-1/2" Fibre Wiring Channel | Units Per Assembly: AR. | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 091-974303 | Description: 1-1/2" Fibre Wiring Channel Cover | Units Per Assembly: AR. | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-077776 | Description: Plastic Push Rivet | Units Per Assembly: 16 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 092-029081 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-988857 | Description: Screw, Rd. Hd. Mach. #10-32NF x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-338624 | Description: Fuse (10 Amp) (200V, 208V, 220V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-338616 | Description: Fuse (5 Amp) (380V, 400V, 415V, 460V, 575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 092-029073 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-176732 | Description: Cover (Europa Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-056324 | Description: Standoff Spacer (Europa Only) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 12 | Part Number: 091-988857 | Description: Screw, Rd. Hd. Mach. #10-32NF x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 092-031244 | Description: Fuse (50 Amp) (208V, 220V, 230V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031566 | Description: Fuse (35 Amp) (380V, 400V, 415V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-031574 | Description: Fuse (25 Amp) (460V, 575V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-126698 | Description: Fuse Reducer (Above 240V) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 091-391854 | Description: Label (Copper Wire Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-095570 | Description: Escutcheon (Diagram No.) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 091-391946 | Description: Ground Terminal | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 091-988592 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 091-991091 | Description: Nut, Hex. Jam #8-32NC | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-992792 | Description: Washer, Flat #8 S.A.E. Std. (Black Oxide) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 21 | Part Number: 092-006160 | Description: Mounting Rail | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 091-988840 | Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 23 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 24* | Part Number: 092-033547 | Description: Disconnect Switch Body | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 25* | Part Number: 092-033554 | Description: Disconnect Switch Shaft Ex-tension | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-790485 | Description: Overload Relay (208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-054600 | Description: Overload Relay (380V, 400V, 415V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-795716 | Description: Mounting Support(If Supplied) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 091-790469 | Description: Contactor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 092-006160 | Description: Mounting Rail | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 091-988840 | Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 32 | Part Number: 091-770578 | Description: Control Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-770990 | Description: Relay Socket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 091-790550 | Description: Overload Relay (208V, 220V, 230V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-790451 | Description: Overload Relay (380V, 400V, 415V, 460V, 575V) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 092-031624 | Description: Fuse (10 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 092-053688 | Description: Fuse Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 092-006154 | Description: Terminal Block | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 092-006170 | Description: Terminal Block End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 39 | Part Number: 092-006188 | Description: Terminal Block End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 40 | Part Number: 092-009943 | Description: Terminal Block Marker | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 092-006160 | Description: Mounting Rail | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 091-988840 | Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 43 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 095-161829 | Description: Control Panel | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 092-014505 | Description: DC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 091-988543 | Description: Screw, Rd. Hd. Math. #8-32NC x 1/2 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 091-993717 | Description: Washer, Lock #8 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 092-013226 | Description: PLC 120V Output Relay | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 49 | Part Number: 092-013218 | Description: PLC 120V Input Relay | Units Per Assembly: 1 | Availability: In Stock | Price: $2,135.00 |
| Index No Ref.: 50 | Part Number: 092-013234 | Description: PLC Analog Output | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 092-013242 | Description: PLC High Speed Center | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 092-028471 | Description: CPU Module | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 53 | Part Number: | Description: Eprom Sub-Assembly (Check Label for Part #) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 092-028463 | Description: CPU Base (5 Slot) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 092-013200 | Description: PLC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 091-988840 | Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 092-029180 | Description: Proportional Valve Control Card | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 094-176740 | Description: Cover (Europa Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 093-194769 | Description: Board Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 091-988311 | Description: Screw, Rd. Hd. Mach. #4-40NC x 1/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 61 | Part Number: 092-033588 | Description: Standoff | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 092-033596 | Description: Plastic Rivet 3/16" | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-974329 | Description: Flexible Loom Wire Guard(.250) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 092-032168 | Description: Resistor | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 091-000166 | Description: Spacer | Units Per Assembly: 1 | Availability: In Stock | Price: $9.77 |
| Index No Ref.: 66 | Part Number: 091-988824 | Description: Screw, Rd. Hd. Mach. #10-24NC x 3 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-992792 | Description: Washer, Flat #8 S.A.E. Std (Black Oxide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 092-006154 | Description: Terminal Block | Units Per Assembly: 18 | Availability: Call For Info | Price: |
| Index No Ref.: 69 | Part Number: 092-029214 | Description: Terminal Block Seperator | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 092-006170 | Description: Terminal Block End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 71 | Part Number: 092-006188 | Description: Terminal Block End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 092-009943 | Description: Terminal Block Marker | Units Per Assembly: 18 | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 092-029222 | Description: Jumper Bar | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 74 | Part Number: 092-029230 | Description: Connector Plate | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 75 | Part Number: 092-029198 | Description: DC Power Supply | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 76 | Part Number: 091-988543 | Description: Screw, Rd. Hd. Mach. #8-32NC x 1/2 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 77 | Part Number: 091-993717 | Description: Washer, Lock #8 Shakeproof | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 78 | Part Number: 092-006160 | Description: Mounting Rail | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: 79 | Part Number: 091-988840 | Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 80 | Part Number: 091-993733 | Description: Washer, Lock #10 Shakeproof | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 81 | Part Number: 092-029099 | Description: Fuse Holder | Units Per Assembly: 4 | Availability: In Stock | Price: $41.51 |
| Index No Ref.: 82 | Part Number: 091-787127 | Description: Fuse (2.5 Amp) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 83 | Part Number: 092-009943 | Description: Terminal Marker | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 84 | Part Number: 092-029099 | Description: Fuse Holder | Units Per Assembly: 1 | Availability: In Stock | Price: $41.51 |
| Index No Ref.: 85 | Part Number: 092-003904 | Description: Fuse (4 Amp) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 86 | Part Number: 092-014778 | Description: End Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 87 | Part Number: 092-009943 | Description: Terminal Marker | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 88 | Part Number: 092-006154 | Description: Terminal Block | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 89 | Part Number: 092-006170 | Description: Terminal Block Section | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 90 | Part Number: 092-006188 | Description: Terminal Block End Stop | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 91 | Part Number: 092-009943 | Description: Terminal Marker | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: NOTE: Item #24 was #092-029164 and #25 was 092-029156 Before Serial #505-93105. | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: | Description: Following Not Shown: | Units Per Assembly: | Availability: | Price: |
| Index No Ref.: | Part Number: 072-027236 | Description: Motor/Transformer Connection Instructions | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-974337 | Description: Flexible Loom Wire Guard(.375) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-765289 | Description: Escutcheon (Electrical Hazard) | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-017326 | Description: Cable Clamp(15 Pin Connector) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-017300 | Description: D-Sub Connector (15 Pin) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 092-017342 | Description: Male Screw Retainer Kit (Amp Connector Shell) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 091-974113 | Description: Conductor Cord (#24-3 Shielded) | Units Per Assembly: A.R. | Availability: Call For Info | Price: |
