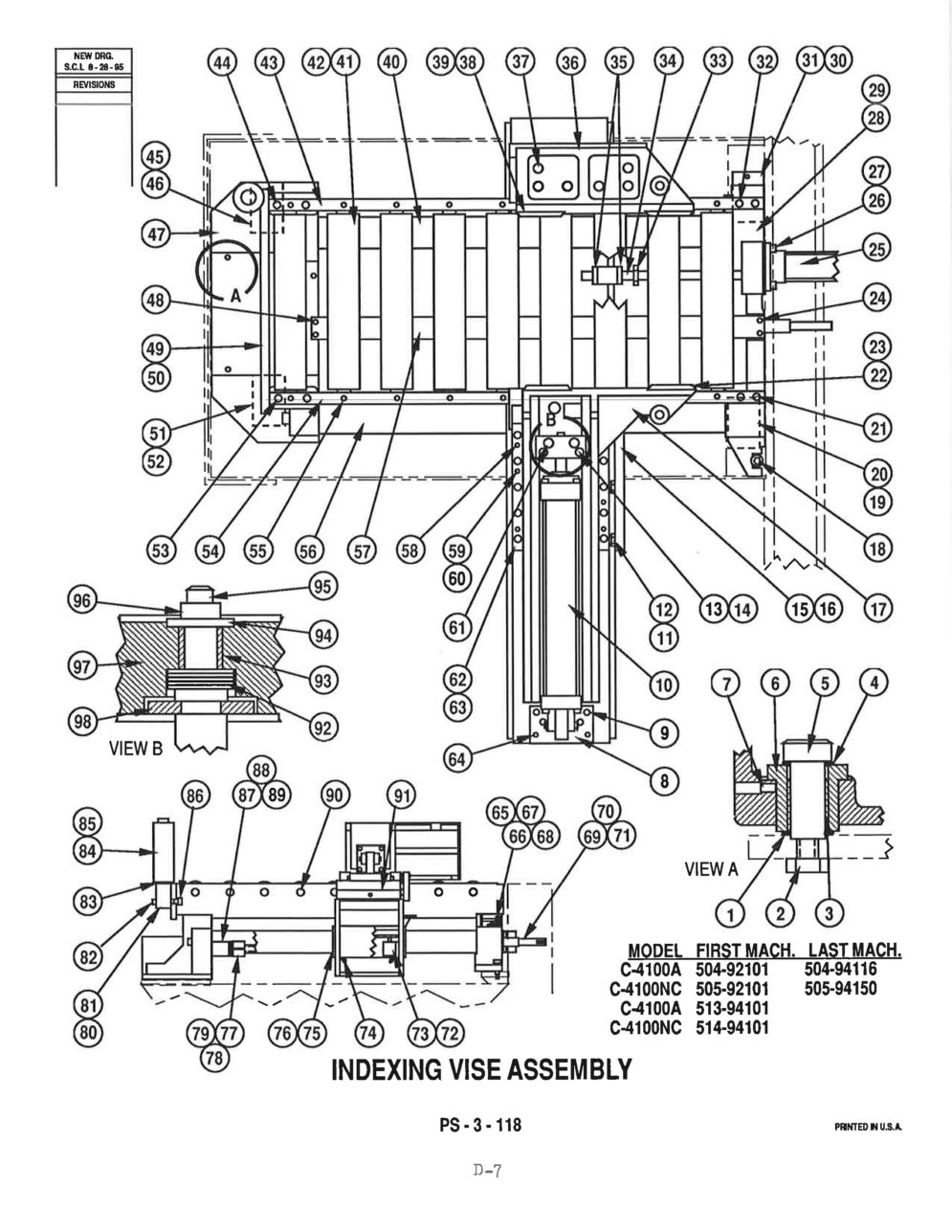

Exploded View Parts Ordering: C-4100NC_505
C-4100NC 505 Online Parts Manual
Serial No: 505-92101 End Date 505-94150
Page Code: PS-3-118
| Index No Ref. | Part Number | Description | Units Per Assembly | Availability | Price |
|---|---|---|---|---|---|
| Index No Ref.: Rel. | Part Number: 092-021468 | Description: Indexing Vise Assembly (C-4100A) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: Rel. | Part Number: 092-028901 | Description: Indsning Vise Assembly (C-4100NC) | Units Per Assembly: | Availability: Call For Info | Price: |
| Index No Ref.: 1 | Part Number: 092-026061 | Description: DU Thrust Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 2 | Part Number: 000-173733 | Description: Locknut 7/8-9NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 3 | Part Number: 092-026053 | Description: DU Bearing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 4 | Part Number: 092-026061 | Description: DU Thrust Washer | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 5 | Part Number: 002-026079 | Description: Screw, Soc. Hd. Shoulder 7/8-9NC x 2 1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 6 | Part Number: 093-192607 | Description: Eccentric Bushing | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 7 | Part Number: 091-984518 | Description: Screw, Soc. Set 3/8-16NC x 3/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 8 | Part Number: 094-171527 | Description: Lug | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 9 | Part Number: 091-982967 | Description: Screw, Soc Hd. Cap 1 /2-13NC x 1-3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 10 | Part Number: 091-793877 | Description: Index Vise Clamp Cyinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 11 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 12 | Part Number: 091-991273 | Description: Nut, Hex. Jam 3/8-16NC | Units Per Assembly: 3 | Availability: Call For Info | Price: |
| Index No Ref.: 13 | Part Number: 091-983908 | Description: Screw, Soc. Hd. Cap 7/16-I4NC x 3 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 14 | Part Number: 091-993394 | Description: Washer, Lock 7/16 H-Coller | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 15 | Part Number: 093-193951 | Description: Backer Plate | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 16 | Part Number: 091-982801 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/4 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 17 | Part Number: 095-160891 | Description: Movable Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 18 | Part Number: 092-030592 | Description: Screw, Soc. Hd. Shoulder 1/2-13NC x 1-1/2 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 19 | Part Number: 092-024009 | Description: Bearing Pad | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 20 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 21 | Part Number: 091-983056 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 5 | Units Per Assembly: 8 | Availability: Call For Info | Price: |
| Index No Ref.: 22 | Part Number: 093-192706 | Description: Wear Plate (Steel) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-192722 | Description: Wear Plate (Urethane) | Units Per Assembly: 1 | Availability: In Stock | Price: $276.00 |
| Index No Ref.: | Part Number: 093-192714 | Description: Wear Plate (Serrated) | Units Per Assembly: 1 | Availability: In Stock | Price: $497.09 |
| Index No Ref.: 23 | Part Number: 001-998732 | Description: Screw. Soc Hd. Cap 1/4-20NC x 5/8 (Low Head. Black Oxide) | Units Per Assembly: 12 | Availability: Call For Info | Price: |
| Index No Ref.: 24 | Part Number: 091-982421 | Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 25 | Part Number: 092-027549 | Description: Indexing Vise Feed Cyinder | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 26 | Part Number: 091-982603 | Description: Screw. Soc. Hd. Cap 5/16-18NC x 1 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 27 | Part Number: 091-993238 | Description: Washer, Lock 5/16 Std. | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 28 | Part Number: 092-009489 | Description: Bearing Sleeve (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-159836 | Description: Crosshead | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 29 | Part Number: 091-982967 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-3/4 Mount Way Bars) | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 30 | Part Number: 002-024009 | Description: Bearing Pad | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 31 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 32 | Part Number: 091-083058 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 5 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 33 | Part Number: 091-991893 | Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 34 | Part Number: 092-009299 | Description: Stud | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 35 | Part Number: 091-762476 | Description: Collar | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 36 | Part Number: 095-160883 | Description: Fixed Jaw | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 37 | Part Number: 091-983247 | Description: Screw, Soc. Hd. Cap 5/8-11NC x 1-3/4 | Units Per Assembly: 5 | Availability: Call For Info | Price: |
| Index No Ref.: 38 | Part Number: 093-192706 | Description: Weer Plate (Steel) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 093-192714 | Description: Wear Plate (Serrated) | Units Per Assembly: 2 | Availability: In Stock | Price: $497.09 |
| Index No Ref.: 39 | Part Number: 091-998732 | Description: Screw. Soc. Hd. Cap 1/4-20NC x 5/8 (Low Head, Black Oxide) | Units Per Assembly: 12 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 40 | Part Number: 093-191674 | Description: Way Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 41 | Part Number: 093-181733 | Description: Roller | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 42 | Part Number: 092-001064 | Description: Bearing | Units Per Assembly: 18 | Availability: In Stock | Price: $92.49 |
| Index No Ref.: 43 | Part Number: 095-159794 | Description: Side Rail | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 44 | Part Number: 091-983058 | Description: Screw. Soc. Hd. Cap 1/2-13NC x 5 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 45 | Part Number: 092-024009 | Description: Bearing Pad | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 46 | Part Number: 001-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 47 | Part Number: 095-161071 | Description: Yoke Assembly (See Detail (C-4100A) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-159828 | Description: Yoke (C-4100NC) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 48 | Part Number: 091-982421 | Description: Screw, Sec. Hd. Cap 1/4-20NC x 1 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 49 | Part Number: 093-182384 | Description: Vertical Support Rail | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 50 | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 51 | Part Number: 092-024009 | Description: Bearing Pad | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 52 | Part Number: 091-983213 | Description: Screw. Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 53 | Part Number: 091-983058 | Description: Screw, Soc. Hd. Cap 1/2-13NC x 5 | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 54 | Part Number: 095-159794 | Description: Side Rail | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 55 | Part Number: 091-984492 | Description: Screw, Soc. Set 3/8-16NC x 1/2 | Units Per Assembly: 18 | Availability: Call For Info | Price: |
| Index No Ref.: 56 | Part Number: 093-191674 | Description: Wet Bar | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 57 | Part Number: 093-193795 | Description: Cover (C-4100A) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: | Part Number: 095-161311 | Description: Liner Encoder Assembly (See Detail (C-4100NC) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 58 | Part Number: 090-108341 | Description: Dowel Pin | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 59 | Part Number: 135-094738 | Description: Grease Filing | Units Per Assembly: 4 | Availability: Call For Info | Price: |
| Index No Ref.: 60 | Part Number: 091-984328 | Description: Screw, Soc. Set 1/4-28NF x 1/4 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 61 | Part Number: 092-028190 | Description: Screw, Soc. Hd. Shoulder (1/2 x 3) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 62 | Part Number: 094-175015 | Description: Gib | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 63 | Part Number: 091-996645 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 | Units Per Assembly: 10 | Availability: Call For Info | Price: |
| Index No Ref.: 64 | Part Number: 091-262782 | Description: Dowel Pin (If Suppled) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 65 | Part Number: 094-171063 | Description: Actuator Bracket | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 66 | Part Number: 091-991232 | Description: Nut, Hex. Jam 5/16-18NC | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 67 | Part Number: 091-477620 | Description: Actuator | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 68 | Part Number: 091-983213 | Description: Screw, Button Hd. Soc. #10-24NC x 3/8 | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 69 | Part Number: 095-152203 | Description: Lead Screw (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 70 | Part Number: 135-086882 | Description: Retaining Ring (C-4100A Only) | Units Per Assembly: 1 | Availability: In Stock | Price: $4.00 |
| Index No Ref.: 71 | Part Number: 091-046540 | Description: Roll Fin (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 72 | Part Number: 093-193803 | Description: Lead Screw Nut (C-4100A Only) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 73 | Part Number: 092-029800 | Description: Spring Pin (C-4100A Only) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 74 | Part Number: 090-106568 | Description: 45 Degree Grease Fitting (If Suppled) | Units Per Assembly: 2 | Availability: Call For Info | Price: |
| Index No Ref.: 75* | Part Number: 092-067552 | Description: Beaning (Self-Lubricating) | Units Per Assembly: 4 | Availability: In Stock | Price: $121.56 |
| Index No Ref.: 76 | Part Number: 092-020114 | Description: Rod Wiper | Units Per Assembly: 4 | Availability: In Stock | Price: $10.50 |
| Index No Ref.: 77 | Part Number: 093-188787 | Description: Clamp Collar (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 78 | Part Number: 090-150640 | Description: Spring (C-4100A Only) | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 79 | Part Number: 091-992693 | Description: Washer, Flat 7/8 S.A.E. Std. (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 80 | Part Number: 094-164928 | Description: Pivot Black | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 81 | Part Number: 091-982785 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 82 | Part Number: 091-982864 | Description: Screw, Soc. Hd. Cap 3/8-16NC x 3-1/4 | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 83 | Part Number: 092-001064 | Description: Bearing | Units Per Assembly: 2 | Availability: In Stock | Price: $92.49 |
| Index No Ref.: 84 | Part Number: 093-182368 | Description: Roller | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 85 | Part Number: 093-182376 | Description: Shaft | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 86 | Part Number: 092-002005 | Description: T-Nut | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 87 | Part Number: 092-013028 | Description: Die Spring (Urethane Polymer) (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 88 | Part Number: 091-992701 | Description: Washer Flat 1 S.A.E. Std. (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 89 | Part Number: 091-992693 | Description: Washer, Flat 7/8 S.A.E. Std. (C-4100A Only) | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 90 | Part Number: 093-192888 | Description: Shaft | Units Per Assembly: 9 | Availability: Call For Info | Price: |
| Index No Ref.: 91 | Part Number: 095-160909 | Description: Index Vise Base Weldment | Units Per Assembly: I | Availability: Call For Info | Price: |
| Index No Ref.: 92 | Part Number: 091-246546 | Description: Belleville Washer | Units Per Assembly: 5 | Availability: In Stock | Price: $4.27 |
| Index No Ref.: 93 | Part Number: 090-051236 | Description: Bearing | Units Per Assembly: 1 | Availability: In Stock | Price: $5.74 |
| Index No Ref.: 94 | Part Number: 091-992669 | Description: Washer. Flat 1/2 S.A.E. Std. | Units Per Assembly: 2 | Availability: In Stock | Price: $4.20 |
| Index No Ref.: 95 | Part Number: 093-178836 | Description: Shaft Extension | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 96 | Part Number: 090-127056 | Description: Locknut 1/2-13NC | Units Per Assembly: 1 | Availability: In Stock | Price: $12.60 |
| Index No Ref.: 97 | Part Number: 094-170107 | Description: Bearing Block | Units Per Assembly: 1 | Availability: Call For Info | Price: |
| Index No Ref.: 98 | Part Number: 091-789297 | Description: Actuator Disk | Units Per Assembly: 1 | Availability: In Stock | Price: $30.86 |
| Index No Ref.: | Part Number: | Description: NOTE: Item #75 was 092-019223 Before Serial #513-95113 on C-4100A and #514-95143 on C-4100NC. | Units Per Assembly: | Availability: Call For Info | Price: |
