Exploded View Parts Ordering: C-4100M_525

C-4100M 525 Online Parts Manual

Serial No: 525-96101

Download PDF Version

Return to manuals

Page Code: PS-8-226

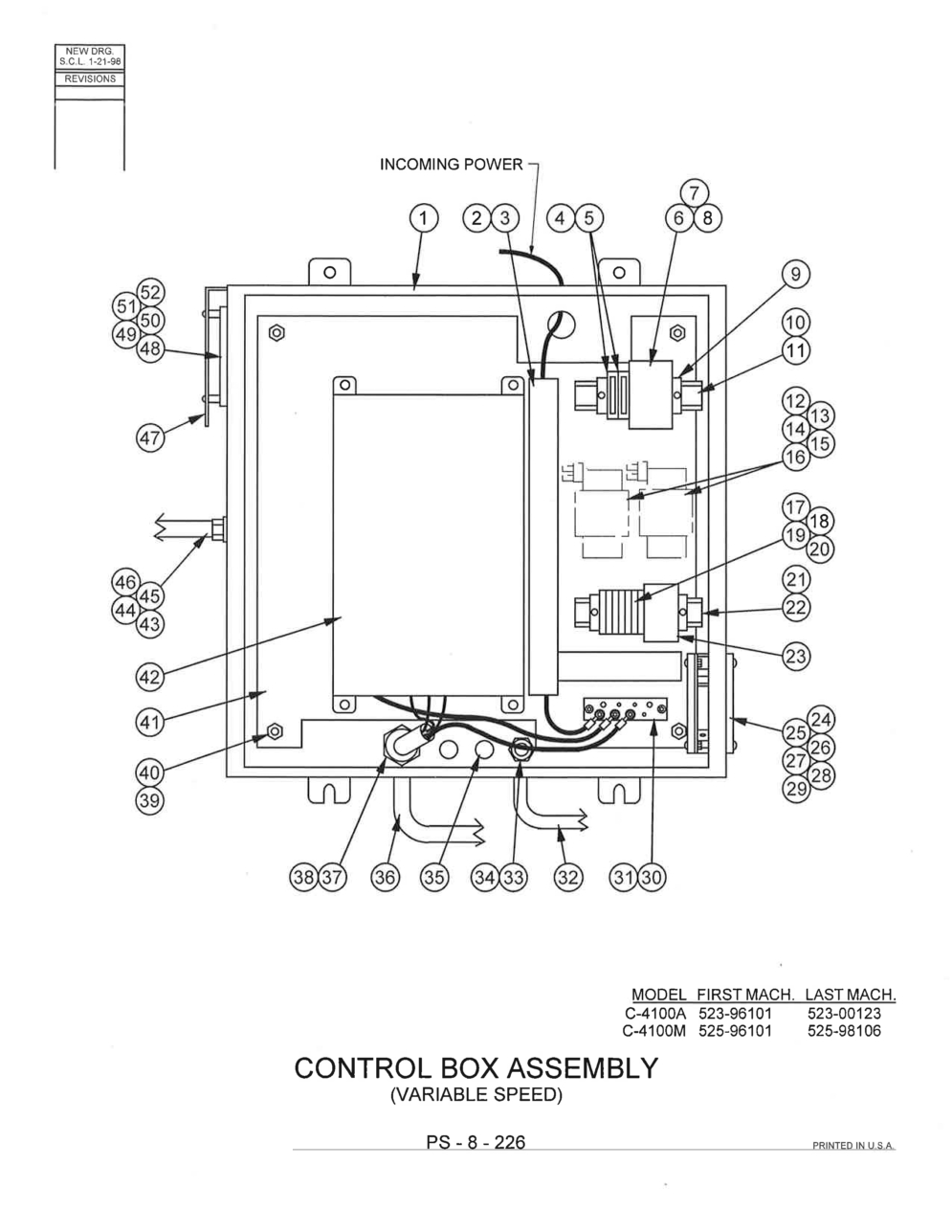

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref Part Number: Description: Control Box Assembly (Variable Speed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 517859 Description: Enclosure Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 197208 Description: 1" Fibre Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 197210 Description: 1" Fibre Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 205368 Description: Fuse Block Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 203158 Description: Fuse (1 Amp) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 214417 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 213455 Description: Disconnect Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 213458 Description: Disconnect Switch Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 213456 Description: Disconnect Switch Handle (On The Door) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 200618 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 200616 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 12 Part Number: 206152 Description: Reactor (18 Amp) (For 208V, 220V, 230V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 206150 Description: Reactor (12 Amp) (For 380V, 400V, 415V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 206146 Description: Reactor (8 Amp) (For 460V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 206147 Description: Reactor (8 Amp) (For 575V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 206035 Description: Channel Nut Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 198008 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 199374 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 8 Availability: In Stock Price: $0.16
Index No Ref.: 16 Part Number: 199115 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 200615 Description: Terminal Block Units Per Assembly: 7 Availability: In Stock Price: $2.66
Index No Ref.: 18 Part Number: 200617 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 200618 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 202922 Description: Jumper Bar (10 Pole - Assembled) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 200616 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 23 Part Number: 207210 Description: Contactor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 208798 Description: Fan Units Per Assembly: 1 Availability: In Stock Price: $76.46
Index No Ref.: 25 Part Number: 208799 Description: Fan Cover Units Per Assembly: 2 Availability: In Stock Price: $13.14
Index No Ref.: 26 Part Number: 208800 Description: Fan Lead Wire Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 199555 Description: Screw, Button Hd. Soc. M4 x 0.7 x 16 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 199214 Description: Nut, Hex. M4 x 0.7 Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 29 Part Number: 199449 Description: Washer, Lock M4 Shakeproof Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 320740 Description: Grounding Bus (8 Point) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 199969 Description: Screw, Button Hd. Soc. M6 x 1.0 x 10 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 32 Part Number: 199332 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 201686 Description: Cord Grip Connector (.157-.314) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 207691 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 135106 Description: Hose Closing Units Per Assembly: 1 Availability: In Stock Price: $15.31
Index No Ref.: 36 Part Number: 197428 Description: Electrical Cord (#10-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 202900 Description: Cord Grip Connector (.708-.984) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 207695 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 199126 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 517860 Description: Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42* Part Number: 418424 Description: Variable Speed Controller (208V, 220V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 418431 Description: Variable Speed Conroller (380V, 400V, 415V,460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 211493 Description: Transformer (575V Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 014545 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 014507 Description: 45 Degree Sealtite Connector (Coolant Pump) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 014411 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 197156 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 47 Part Number: 321705 Description: Splash Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 208799 Description: Fan Cover Units Per Assembly: 1 Availability: In Stock Price: $13.14
Index No Ref.: 49 Part Number: 198602 Description: Screw, Button Hd. Soc. M4 x 0.7 x 35 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 199214 Description: Nut, Hex. M4 x 0.7 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 51 Part Number: 211064 Description: Nylon Spacer Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 199449 Description: Washer, Lock M4 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: For ATV66 Inverters, Order: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 209122 Description: Variable Speed Controller (208V, 220V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 208015 Description: Variable Speed Controller (380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 197243 Description: Wire, #10 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197420 Description: Wire, #10 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197341 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197339 Description: Wire, #14 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197195 Description: Wire, #14 Green/Yellow (19 Strand) (380-415V Only) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: Part Number: 197325 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197197 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 200994 Description: Wire Markers Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 203722 Description: Ground I.D. Shrink Tube (380-415V Only) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 013742 Description: Wire Terminal Ring #10 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: Part Number: 199355 Description: Washer, Lock #10 Shakeproof (380-415V Only) Units Per Assembly: 7 Availability: Call For Info Price:
