Exploded View Parts Ordering: C-4100M_525

C-4100M 525 Online Parts Manual

Serial No: 525-96101

Download PDF Version

Return to manuals

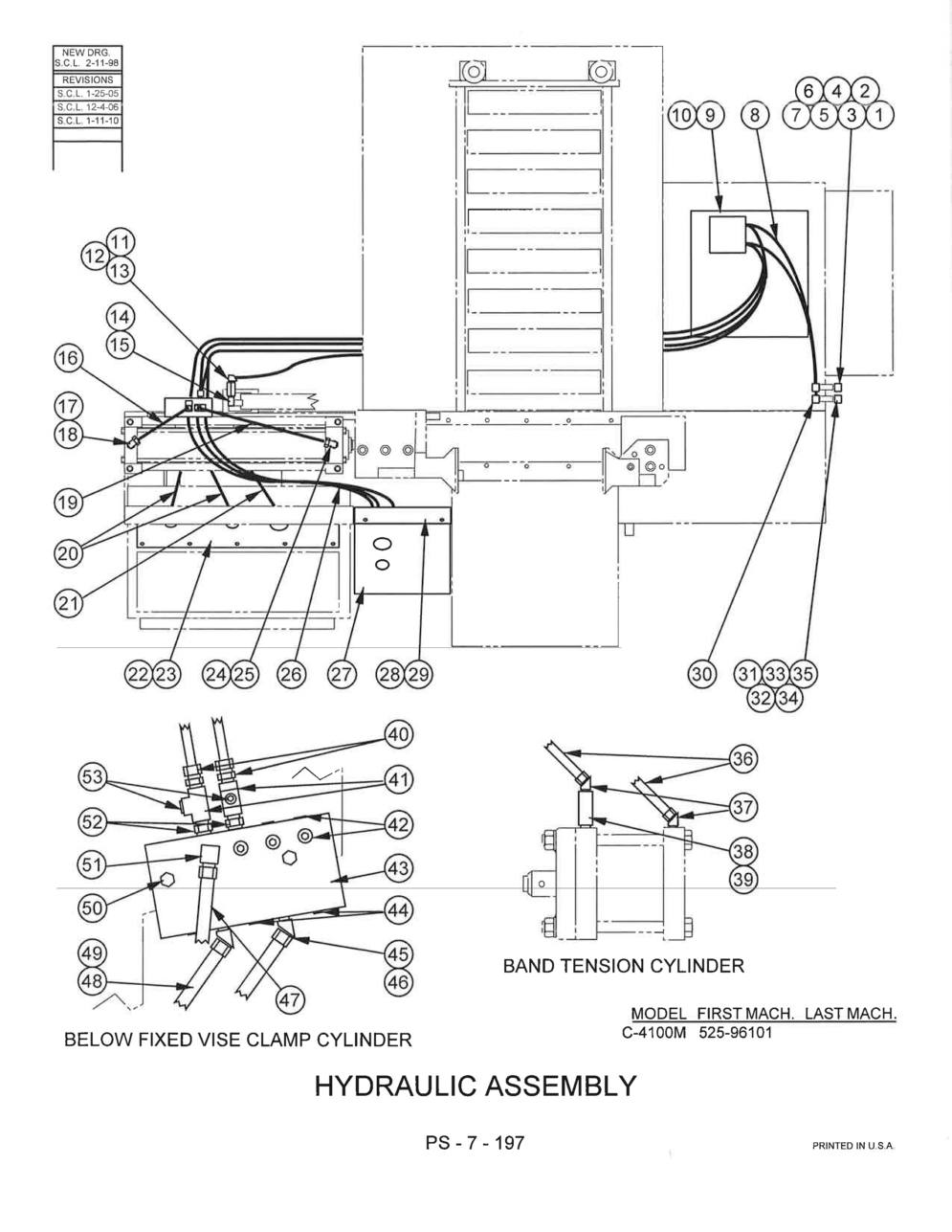

Page Code: PS-7-197

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 208023 Description: Hydraulic Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 008254 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 260426 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $2.85
Index No Ref.: 3 Part Number: 102917 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 158827 Description: Needle Valve Units Per Assembly: 1 Availability: In Stock Price: $72.92
Index No Ref.: 5 Part Number: 14-014528 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $16.12
Index No Ref.: 6 Part Number: 121917 Description: Coupling (Male) Units Per Assembly: 1 Availability: In Stock Price: $17.45
Index No Ref.: 7 Part Number: 121932 Description: Dust Cap (Male) Units Per Assembly: 1 Availability: In Stock Price: $33.76
Index No Ref.: 8 Part Number: 204265 Description: Hydraulic Hose Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 203459 Description: Hydraulic Power Unit Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 198044 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 114878 Description: Reducer Bushing Units Per Assembly: 1 Availability: In Stock Price: $8.26
Index No Ref.: 12 Part Number: 121933 Description: 45 Degree Street Elbow Units Per Assembly: 1 Availability: In Stock Price: $3.25
Index No Ref.: 13 Part Number: 204262 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 148887 Description: 90 Degree Street Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $14.79
Index No Ref.: 15 Part Number: 201619 Description: Throttle Valve Units Per Assembly: 1 Availability: In Stock Price: $59.00
Index No Ref.: 16 Part Number: 319079 Description: Hydraulic Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 309057 Description: 90 Degree Male Elbow Units Per Assembly: 1 Availability: In Stock Price: $31.95
Index No Ref.: 18 Part Number: 017537 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 319080 Description: Hydraulic Tube Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 207276 Description: Hydraulic Hose Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 204267 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 202993 Description: Control Panel Assembly (Hydraulic) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 199769 Description: Screw, Button Hd. Soc. #10-32NF x 1/2 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 309057 Description: 90 Degree Male Elbow Units Per Assembly: 1 Availability: In Stock Price: $31.95
Index No Ref.: 25 Part Number: 017537 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 203016 Description: Hydraulic Hose Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 203569 Description: Variable Vise Pressure Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 418018 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 199649 Description: Screw, Button Hd. Soc. #10-24NC x 1/4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 30 Part Number: 008254 Description: 90 Degree Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 008254 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 35-002456 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 14-000449 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 121918 Description: Coupling (Female) Units Per Assembly: 1 Availability: In Stock Price: $44.37
Index No Ref.: 35 Part Number: 121931 Description: Dust Cap (Female) Units Per Assembly: 1 Availability: In Stock Price: $33.51
Index No Ref.: 36 Part Number: 202108 Description: Hydraulic Hose Units Per Assembly: 2 Availability: In Stock Price: $111.21
Index No Ref.: 37 Part Number: 121933 Description: 45 Degree Street Elbow (Brass) Units Per Assembly: 2 Availability: In Stock Price: $3.25
Index No Ref.: 38 Part Number: 14-003507 Description: Close Nipple Units Per Assembly: 1 Availability: In Stock Price: $4.74
Index No Ref.: 39 Part Number: 009757 Description: Pipe Coupling Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 309010 Description: Male Connector Units Per Assembly: 2 Availability: In Stock Price: $8.12
Index No Ref.: 41 Part Number: 120857 Description: Service Tee (Brass) Units Per Assembly: 2 Availability: In Stock Price: $12.09
Index No Ref.: 42 Part Number: 123326 Description: Pipe Plug Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 418022 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 123326 Description: Pipe Plug Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 143990 Description: 45 Degree Street Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $15.15
Index No Ref.: 46 Part Number: 204263 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 204263 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 143990 Description: 45 Degree Street Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $15.15
Index No Ref.: 49 Part Number: 204266 Description: Hydraulic Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 198287 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 148887 Description: 90 Degree Street Elbow (Brass) Units Per Assembly: 1 Availability: In Stock Price: $14.79
Index No Ref.: 52 Part Number: 5-011517 Description: Reducer Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 131392 Description: Pipe Plug Units Per Assembly: 2 Availability: Call For Info Price:
