Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

Page Code: PS-8-270

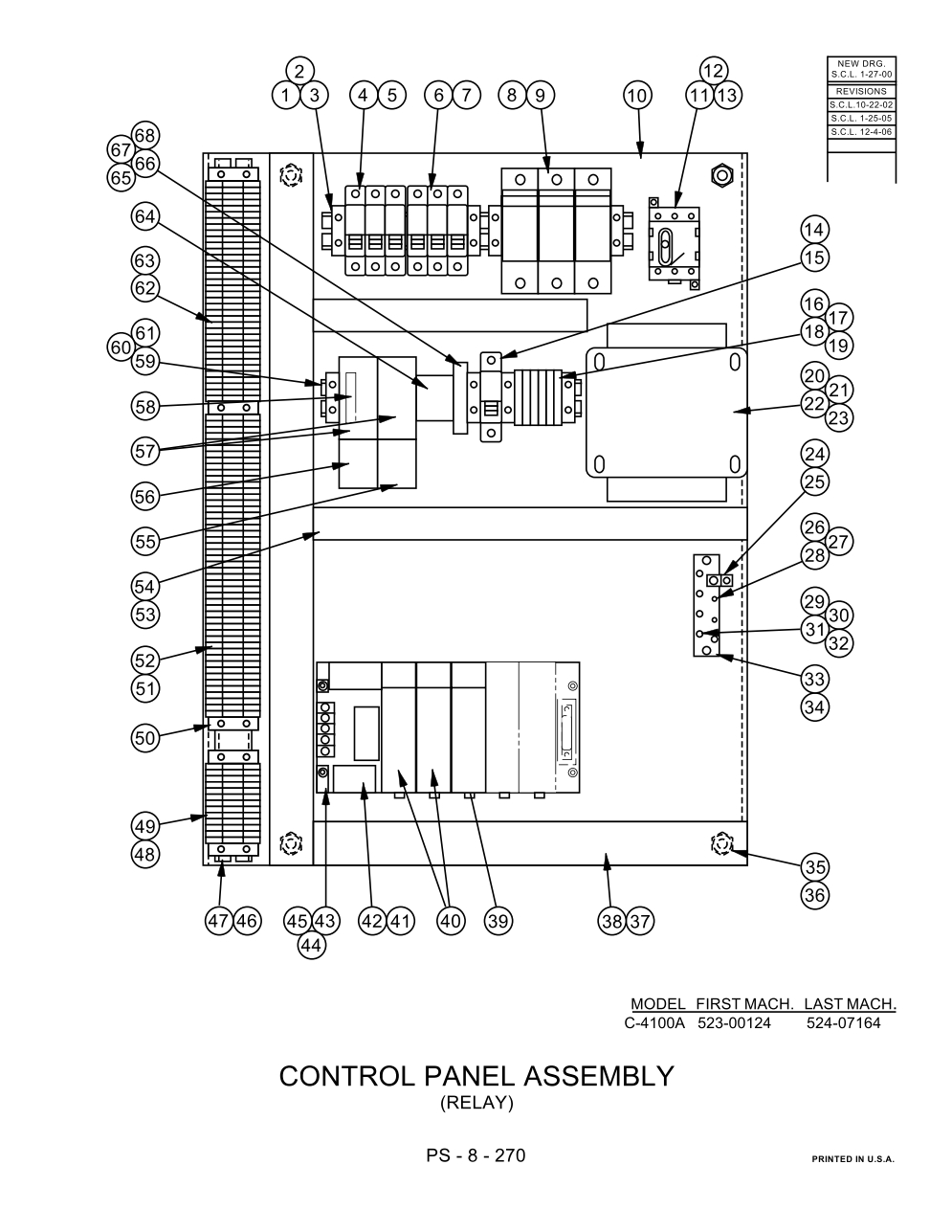

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Panel Assembly (Relay) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 2 Part Number: 199578 Description: Screw, Pan Hd. Slotted M5-0.8 x 8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 200618 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 215213 Description: Fuse Block (208V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $175.00
Index No Ref.: Part Number: 420394* Description: Circuit Breaker (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 420391* Description: Circuit Breaker (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 206034 Description: Fuse (12 Amp) (208V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 203162 Description: Fuse (10 Amp) (230V) Units Per Assembly: 3 Availability: In Stock Price: $67.01
Index No Ref.: Part Number: 203161 Description: Fuse (5 Amp) (460V, 575V) Units Per Assembly: 3 Availability: In Stock Price: $104.55
Index No Ref.: 6 Part Number: 215213 Description: Fuse Block (208V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $175.00
Index No Ref.: Part Number: 420390* Description: Circuit Breaker (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 420388* Description: Circuit Breaker (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 203158 Description: Fuse (1 Amp) (208V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 206701 Description: Fuse (.5 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 215216 Description: Fuse Block (208V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 215214 Description: Fuse Block (460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 420400* Description: Circuit Breaker (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 420399* Description: Circuit Breaker (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 212102 Description: Fuse (50 Amp) (208V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 207317 Description: Fuse (25 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 519659 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 214417 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 199054 Description: Screw, Pan Hd. Slotted M4-0.7 x 8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 199297 Description: Washer, Lock M4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 215212 Description: Fuse Block Units Per Assembly: 1 Availability: In Stock Price: $38.85
Index No Ref.: Part Number: 420358* Description: Circuit Breaker (220V, 400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 203161 Description: Fuse (5 Amp) Units Per Assembly: 1 Availability: In Stock Price: $104.55
Index No Ref.: 16 Part Number: 202909 Description: Fuse Holder Units Per Assembly: 6 Availability: In Stock Price: $41.51
Index No Ref.: 17 Part Number: 201477 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 200390 Description: Fuse (4 Amp) (Fuses 5, 10) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 178712 Description: Fuse (2.5 Amp) (Fuses 6, 7, 8, 9) Units Per Assembly: 4 Availability: In Stock Price: $52.46
Index No Ref.: 20 Part Number: 320113 Description: Transformer (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 323469 Description: Transformer (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 320114 Description: Transformer (230V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $393.93
Index No Ref.: Part Number: 217753 Description: Transformer (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 198962 Description: Screw, Pan Hd. Slotted M6-1.0 x 16 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 199965 Description: Washer, Flat M6 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 23 Part Number: 199347 Description: Washer, Lock M6 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 141639 Description: Wire Terminal Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 198960 Description: Screw, Pan Hd. Slotted M6-1.0 x 10 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 215201 Description: Screw, Pan Hd. Slotted M4 x 0.7 x 6 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 199248 Description: Washer, Flat M4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 199365 Description: Washer, Lock #8 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 215202 Description: Screw, Pan Hd. Slotted M5-0.8 x 6 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 199244 Description: Washer, Flat M5 Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 31 Part Number: 199311 Description: Washer, Lock M6 Shakeproof Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 199355 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 320740 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 198962 Description: Screw, Pan Hd. Slotted M6-1.0 x 16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 199126 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 199325 Description: Washer, Lock 3/8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 197429 Description: 1-1/2" Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 197430 Description: 1-1/2" Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 201322 Description: PLC Relay Output Module Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 204275 Description: PLC Input Module Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 201320 Description: PLC Power Supply Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 212460 Description: Battery (For Power Supply) Units Per Assembly: 1 Availability: In Stock Price: $222.19
Index No Ref.: 42 Part Number: 216526 Description: Eprom Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 201452 Description: PLC Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 199054 Description: Screw, Pan Hd. Slotted M4-0.7 x 8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 199297 Description: Washer, Lock M4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 47 Part Number: 199578 Description: Screw, Pan Hd. Slotted M5-0.8 x 8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 13 Availability: In Stock Price: $2.66
Index No Ref.: 49 Part Number: 200617 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 200618 Description: End Stop Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 209033 Description: Terminal Block (Blue) Units Per Assembly: 49 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 209034 Description: End Section Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 197208 Description: 1" Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 197210 Description: 1" Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 207285 Description: Overload Relay (208V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207290 Description: Overload Relay (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207288 Description: Overload Relay (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 207284 Description: Overload Relay (460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 207293 Description: Overload Relay (208V, 220V, 230V) Units Per Assembly: 1 Availability: In Stock Price: $88.47
Index No Ref.: Part Number: 207291 Description: Overload Relay (400V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $87.10
Index No Ref.: 57 Part Number: 207206 Description: Contactor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 207219 Description: Auxilliary Contactor (If Supplied) Units Per Assembly: 1 Availability: In Stock Price: $18.76
Index No Ref.: 59 Part Number: 169674 Description: Mounting Channel Units Per Assembly: A.R. Availability: In Stock Price: $12.36
Index No Ref.: 60 Part Number: 199578 Description: Screw, Pan Hd. Slotted M5-0.8 x 8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 200618 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 200615 Description: Terminal Block (Gray) Units Per Assembly: 36 Availability: In Stock Price: $2.66
Index No Ref.: 63 Part Number: 200617 Description: End Section Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 207200 Description: Control Relay Units Per Assembly: 1 Availability: In Stock Price: $80.41
Index No Ref.: 65 Part Number: 209937 Description: Relay Units Per Assembly: 1 Availability: In Stock Price: $22.79
Index No Ref.: 66 Part Number: 209941 Description: Relay Indicator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 209942 Description: Relay Clip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 209933 Description: Relay Socket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 216914 Description: Terminal Block Marker Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 197420 Description: Wire, #10 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197243 Description: Wire, #10 Green/Yellow Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197341 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197339 Description: Wire, #14 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197343 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197325 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197197 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 197205 Description: Wire, #18 Blue (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197345 Description: Shielded Cable (#20-3 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $7.60
Index No Ref.: Part Number: 212460 Description: Battery (3V for CPU) Units Per Assembly: 1 Availability: In Stock Price: $222.19
Index No Ref.: Part Number: 214182 Description: Hour Meter (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 203722 Description: Heat-Shrink Tubing 1/4" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 219479 Description: Wire Connector Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: 211191 Description: Transformer (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *For 220V and 400V Machines with Fuses: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 206034 Description: Fuse (12 Amp) (220V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 206705 Description: Fuse (6.25 Amp) (400V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 205039 Description: Fuse (3.5 Amp) (220V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 206703 Description: Fuse (1.8 Amp) (400V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 215216 Description: Fuse Block (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 215214 Description: Fuse Block (400V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 212102 Description: Fuse (50 Amp) (220V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 212100 Description: Fuse (35 Amp) (400V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 203161 Description: Fuse (5 Amp) (220V, 400V) Units Per Assembly: 1 Availability: In Stock Price: $104.55
