Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

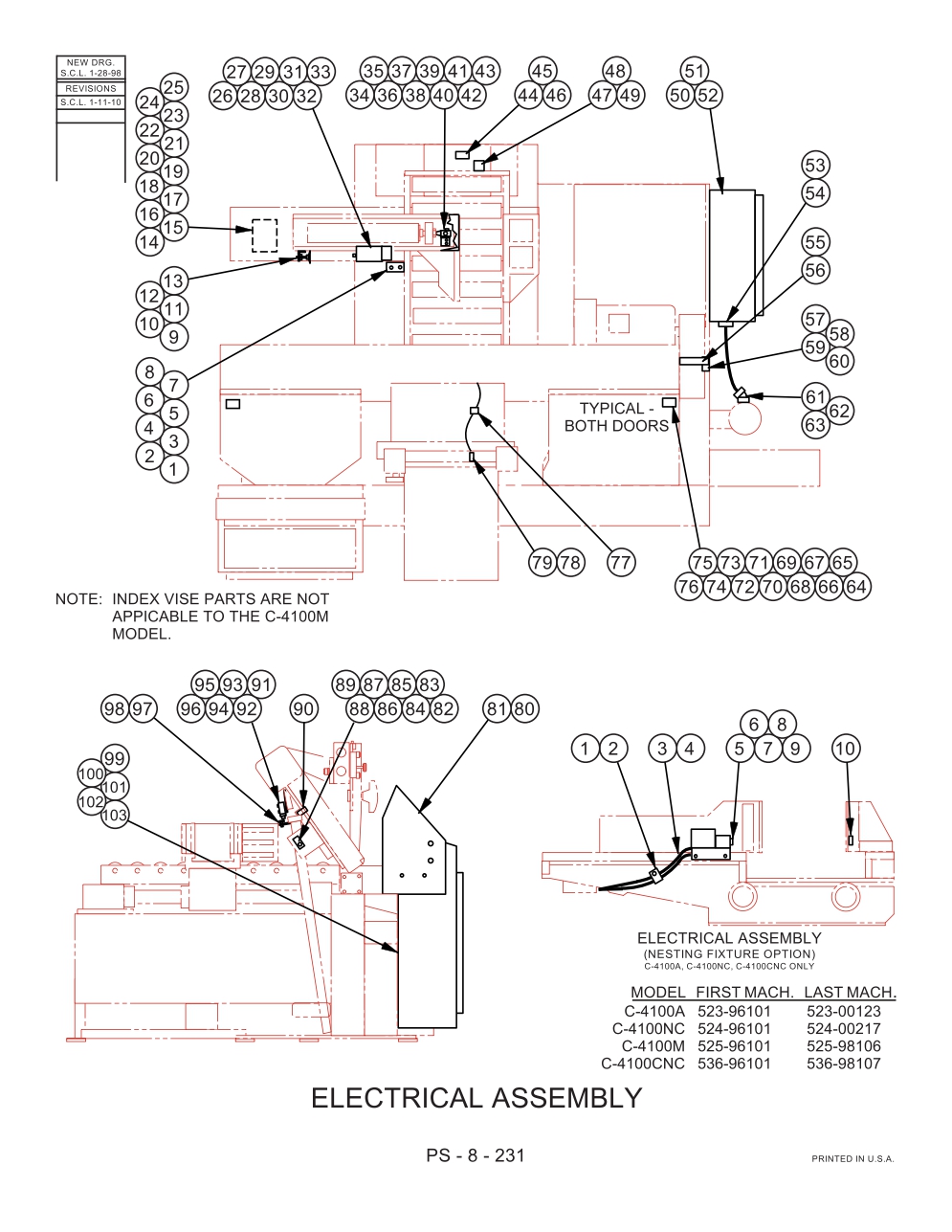

Page Code: PS-8-231

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 517443 Description: Electrical Assembly (C-4100NC) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 517639 Description: Electrical Assembly (C-4100A) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 517671 Description: Electrical Assembly (C-4100M) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 517929 Description: Electrical Assembly (C-4100CNC) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 206588 Description: Limit Switch (Index Forward) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 2 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 201266 Description: Cord Grip Connector (.200-.354) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 4 Part Number: 198332 Description: Extension Cord (#18-3 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 206671 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 198220 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 7 Part Number: 199319 Description: Washer, Lock #10 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 174471 Description: Actuator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 320703 Description: Actuator Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 198220 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 11 Part Number: 199319 Description: Washer, Lock #10 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 12 Part Number: 134097 Description: Actuator Units Per Assembly: 1 Availability: In Stock Price: $1.53
Index No Ref.: 13 Part Number: 199114 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 179924 Description: Junction Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-32NC x 3/8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 176528 Description: Label (Electrical Hazard) Units Per Assembly: 1 Availability: In Stock Price: $1.47
Index No Ref.: 17 Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 3 Availability: In Stock Price: $5.96
Index No Ref.: 18 Part Number: 201696 Description: Cord Grip Connector (.394-.551) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 198331 Description: Extension Cord (#18-6 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 135106 Description: Hole Seal Units Per Assembly: 2 Availability: In Stock Price: $15.31
Index No Ref.: 21 Part Number: 200615 Description: Terminal Block Units Per Assembly: 5 Availability: In Stock Price: $2.66
Index No Ref.: 22 Part Number: 200617 Description: Terminal Block End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 200618 Description: Terminal Block End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 200616 Description: Mounting Rail Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 200994 Description: Terminal Marker Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 206588 Description: Limit Switch (Out of Stock) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 27 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 201266 Description: Cord Grip Connector (.200-.354) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 29 Part Number: 198332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 30 Part Number: 320702 Description: Switch Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 198220 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 32 Part Number: 418135 Description: Shield Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 198349 Description: Screw, Button Hd. Soc. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 34 Part Number: 2-06588 Description: Limit Switch (Index Vise Clamped) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 201266 Description: Cord Grip Connector (.200-.354) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 37 Part Number: 009236 Description: Coiled Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 320701 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 198220 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 40 Part Number: 199319 Description: Washer, Lock #10 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 41 Part Number: 199258 Description: Washer, Flat #10 S.A.E. Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 42 Part Number: 320933 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 44* Part Number: 206588 Description: Limit Switch (Index Reverse) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 45* Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46* Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 47* Part Number: 416694 Description: Kerf Solenoid Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 200750 Description: Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 122733 Description: Solenoid Units Per Assembly: 1 Availability: In Stock Price: $642.15
Index No Ref.: Part Number: 201051 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 198349 Description: Screw, Button Hd. Soc. 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 198895 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 48* Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 11 Availability: In Stock Price: $5.96
Index No Ref.: 49* Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 50 Part Number: Description: Control Box Assembly (VariableSpeed) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 198278 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 176528 Description: Label (Electrical Hazard) Units Per Assembly: 2 Availability: In Stock Price: $1.47
Index No Ref.: 53 Part Number: 014545 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 014411 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 320852 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 57 Part Number: 206588 Description: Limit Switch (Head Up Max.) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 58 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 10 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 201266 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 60 Part Number: 198332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 61 Part Number: 014507 Description: 45 Degree Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 014411 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 197156 Description: Sealtite Conduit 1/2 I.D Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 64 Part Number: 203932 Description: Limit Switch Body (Female) (Door Interlock) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 203946 Description: Limit Switch Key (Male) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 67 Part Number: 198999 Description: Screw, Button Hd. Soc. #8-32NC x 1-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 199109 Description: Nut, Hex. Jam #8-32NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 199338 Description: Washer, Lock #8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 199257 Description: Washer, Flat #8 S.A.E. Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 71 Part Number: 199855 Description: Screw, Button Hd. Soc. #10-24NC x 1-3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 199111 Description: Nut, Hex. #10-24NC Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 73 Part Number: 199319 Description: Washer, Lock #10 Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 74 Part Number: 199258 Description: Washer, Flat #10 S.A.E Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 75 Part Number: 418146 Description: Cover Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 76 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 77 Part Number: 176005 Description: Hose Clip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 78 Part Number: 206602 Description: Proximity Sensor (Head Clear) (C-4100A, C-4100NC, C-4100CNC) Units Per Assembly: 1 Availability: In Stock Price: $257.46
Index No Ref.: Part Number: 209655 Description: Proximity Sensor (Head Clear) (C-4100M) Units Per Assembly: 1 Availability: In Stock Price: $538.59
Index No Ref.: 79 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 80 Part Number: 517229 Description: Console Splash Guard (Applicable) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 81 Part Number: 199770 Description: Screw, Button Hd. Soc. #10-32NF x 3/8 Units Per Assembly: 7 Availability: In Stock Price: $4.20
Index No Ref.: 82 Part Number: 206588 Description: Limit Switch (Band Tension) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 83 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 84 Part Number: 201266 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 85 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 86 Part Number: 320626 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 87 Part Number: 198220 Description: Screw, Soc. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 88 Part Number: 134097 Description: Actuator Units Per Assembly: 1 Availability: In Stock Price: $1.53
Index No Ref.: 89 Part Number: 199114 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 90 Part Number: 168113 Description: Motion Detector (C-4100NC, C-4100CNC) Units Per Assembly: 1 Availability: In Stock Price: $912.37
Index No Ref.: Part Number: 179023 Description: Motion Detector (C-4100A) Units Per Assembly: 1 Availability: In Stock Price: $587.78
Index No Ref.: Part Number: 168113 Description: Motion Detector (C-4100M - Optional) Units Per Assembly: 1 Availability: In Stock Price: $912.37
Index No Ref.: 91 Part Number: 206588 Description: Limit Switch (Head Down) Units Per Assembly: 1 Availability: In Stock Price: $776.34
Index No Ref.: 92 Part Number: 198978 Description: Screw, Soc. Hd. Cap M5 x 0.8 x 30 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 93 Part Number: 201266 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 94 Part Number: 197332 Description: Extension Cord (#18-3 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 95 Part Number: 416741 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 96 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 97 Part Number: 134097 Description: Actuator Units Per Assembly: 1 Availability: In Stock Price: $1.53
Index No Ref.: 98 Part Number: 199114 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 99 Part Number: Description: Control Console Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 100 Part Number: 176528 Description: Label (Electrical Hazard) Units Per Assembly: 2 Availability: In Stock Price: $1.47
Index No Ref.: 101 Part Number: 199132 Description: Nut, Hex. Jam 1/2-13NC Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 102 Part Number: 199327 Description: Washer, Lock 1/2 Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 103 Part Number: 199266 Description: Washer, Flat 1/2 S.A.E. Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: Description: *NOTE: Used on C-4100A Only Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 202559 Description: Switch Key Spacer (Door Interlocks) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 009135 Description: Escutcheon (Limit Switch No.) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 199396 Description: Screw, Rd. Hd. Drive #2 x 3/16 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197223 Description: Extension Cord (#12-4 Conductor) (Hydraulic Pump Motor) Units Per Assembly: A.R. Availability: In Stock Price: $4.37
Index No Ref.: Part Number: 122795 Description: 90 Degree Cord Grip Connector (.625-.750) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 015607 Description: Bond Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 014480 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 202783 Description: Electrical Assy (Nesting Fixture Option) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 016968 Description: Tubing Clamp (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 198866 Description: Screw, Rd. Hd. Mach. #10-24NC x 5/16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 200752 Description: Cable Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 201688 Description: Cord Grip Connector (.200-.394) (at Junction Box) Units Per Assembly: 1 Availability: In Stock Price: $5.96
Index No Ref.: 5 Part Number: 200754 Description: Photo Cell Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 203617 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 198971 Description: Screw, Rd. Hd. Mach. #4-40NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 199106 Description: Nut, Hex. #4-40NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199315 Description: Washer, Lock #6 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 201031 Description: Reflector Units Per Assembly: 1 Availability: In Stock Price: $20.22
