Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

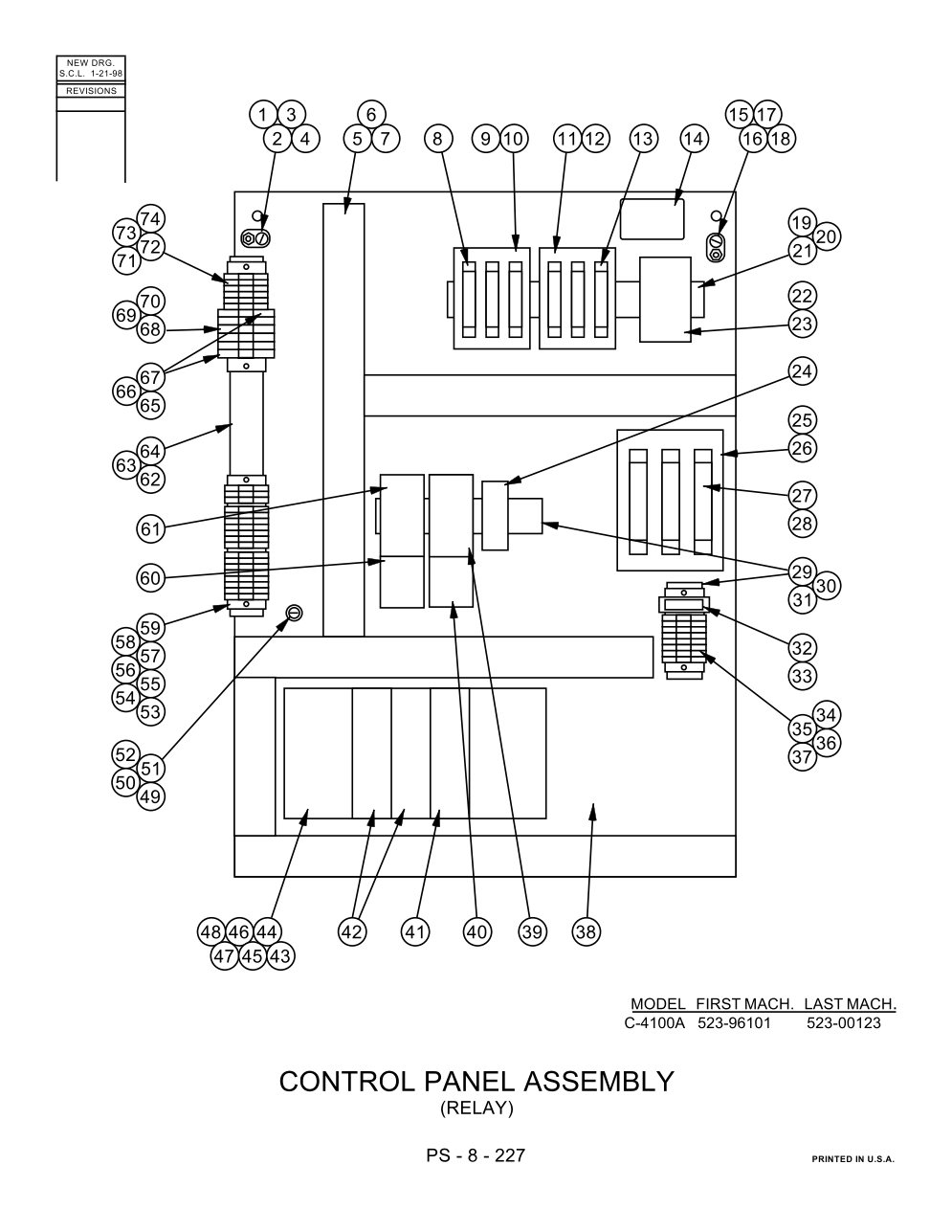

Page Code: PS-8-227

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Panel Assembly (Relay) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-391946 Description: Ground Terminal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-200632 Description: Grounding Bus (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-988592 Description: Screw, Rd. Hd. Mach. #8-32NC x 1 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-991091 Description: Nut, Hex. Jam #8-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-992792 Description: Washer, Flat #8 S.A.E. Std. (Black Oxide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-984295 Description: 1-1/2" Fibre Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-974303 Description: 1-1/2" Fibre Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-077776 Description: Plastic Push Rivet Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 092-060342 Description: Fuse (12 Amp) (208V, 220V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031624 Description: Fuse (10 Amp) (230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-050376 Description: Fuse (8 Amp) (380V, 400V, 415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031616 Description: Fuse (5 Amp) (460V, 575V) Units Per Assembly: 3 Availability: In Stock Price: $104.55
Index No Ref.: 9 Part Number: 092-054089 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-988857 Description: Screw, Rd. Hd. Mach. #10-32NF x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 092-054089 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-988857 Description: Screw, Rd. Hd. Mach. #10-32NF x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 092-031582 Description: Fuse (1 Amp) (208V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-050392 Description: Fuse (3.5 Amp) (220V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-067032 Description: Fuse (1.8 Amp) (380V, 400V, 415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-067016 Description: Fuse (0.5 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 092-066943 Description: Label (Elec. Info) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-391946 Description: Ground Terminal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-988592 Description: Screw, Rd. Hd. Mach. #8-32NC x 1 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-991091 Description: Nut, Hex. Jam #8-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-992792 Description: Washer, Flat #8 S.A.E. Std. (Black Oxide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 092-006160 Description: Mounting Rail Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-988840 Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-993733 Description: Washer, Lock 310 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 092-144179 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-134550 Description: Disconnect Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 092-134584 Description: Disconnect Switch Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 092-072008 Description: Control Relay Units Per Assembly: 1 Availability: In Stock Price: $80.41
Index No Ref.: 25 Part Number: 092-029073 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-111236 Description: Cover (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-056324 Description: Stand-Off Spacer (Europa Only) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-988857 Description: Screw, Rd. Hd. Mach. #10-32NF x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 092-031244 Description: Fuse (50 Amp) (208V, 220V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031566 Description: Fuse (35 Amp) (380V, 400V, 415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031574 Description: Fuse (25 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-126698 Description: Fuse Reducer (Above 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 092-006160 Description: Mounting Rail Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-988840 Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 092-053688 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 092-031624 Description: Fuse (10 Amp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 092-006170 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 092-006188 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 092-009943 Description: Terminal Block Marker Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 095-170957 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 092-072065 Description: Contactor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 092-072875 Description: Overload Relay (208V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072909 Description: Overload Relay (220V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072852 Description: Overload Relay (230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072886 Description: Overload Relay (380V, 400V, 415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072845 Description: Overload Relay (460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 092-013226 Description: PLC 120V Output Relay Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 092-013218 Description: PLC 120V Input Relay Units Per Assembly: 2 Availability: In Stock Price: $2,135.00
Index No Ref.: 43 Part Number: 092-028471 Description: CPU Module Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 092-014521 Description: CPU Base (5 Slot) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 092-031251 Description: Eprom Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 092-013200 Description: PLC Power Supply Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 091-988840 Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 092-032168 Description: Resistor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-000166 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $9.77
Index No Ref.: 51 Part Number: 091-988824 Description: Screw, Rd. Hd. Mach. #10-24NC x 3 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 091-992792 Description: Washer, Flat #8 S.A.E. Std Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 18 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 092-029214 Description: Terminal Block Seperator Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 092-006170 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 092-006188 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 092-009943 Description: Terminal Block Marker Units Per Assembly: 36 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 092-029222 Description: Jumper Bar Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 092-029230 Description: Connector Plate Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 092-072933 Description: Overload Relay (208V, 220V, 230V) Units Per Assembly: 1 Availability: In Stock Price: $88.47
Index No Ref.: Part Number: 092-072917 Description: Overload Relay (380V, 400V, 415V, 460V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $87.10
Index No Ref.: 61 Part Number: 092-072065 Description: Contactor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 092-006160 Description: Mounting Rail Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 091-988840 Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 092-029099 Description: Fuse Block Units Per Assembly: 2 Availability: In Stock Price: $41.51
Index No Ref.: 66 Part Number: 092-003904 Description: Fuse (4 Amp) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 092-014778 Description: End Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 092-029099 Description: Fuse Block Units Per Assembly: 4 Availability: In Stock Price: $41.51
Index No Ref.: 69 Part Number: 091-787127 Description: Fuse (2.5 Amp) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 092-009943 Description: Terminal Marker Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 092-006188 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 092-006170 Description: Section Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 092-009943 Description: Terminal Marker Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 072-033392 Description: Motor/Transformer Connection Instructions Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-765289 Description: Escutcheon (Electrical Hazard) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-974337 Description: Flexible Loom Wire Guard (.500) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-974345 Description: Flexible Loom Wire Guard (.375) Units Per Assembly: A.R. Availability: Call For Info Price:
