Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

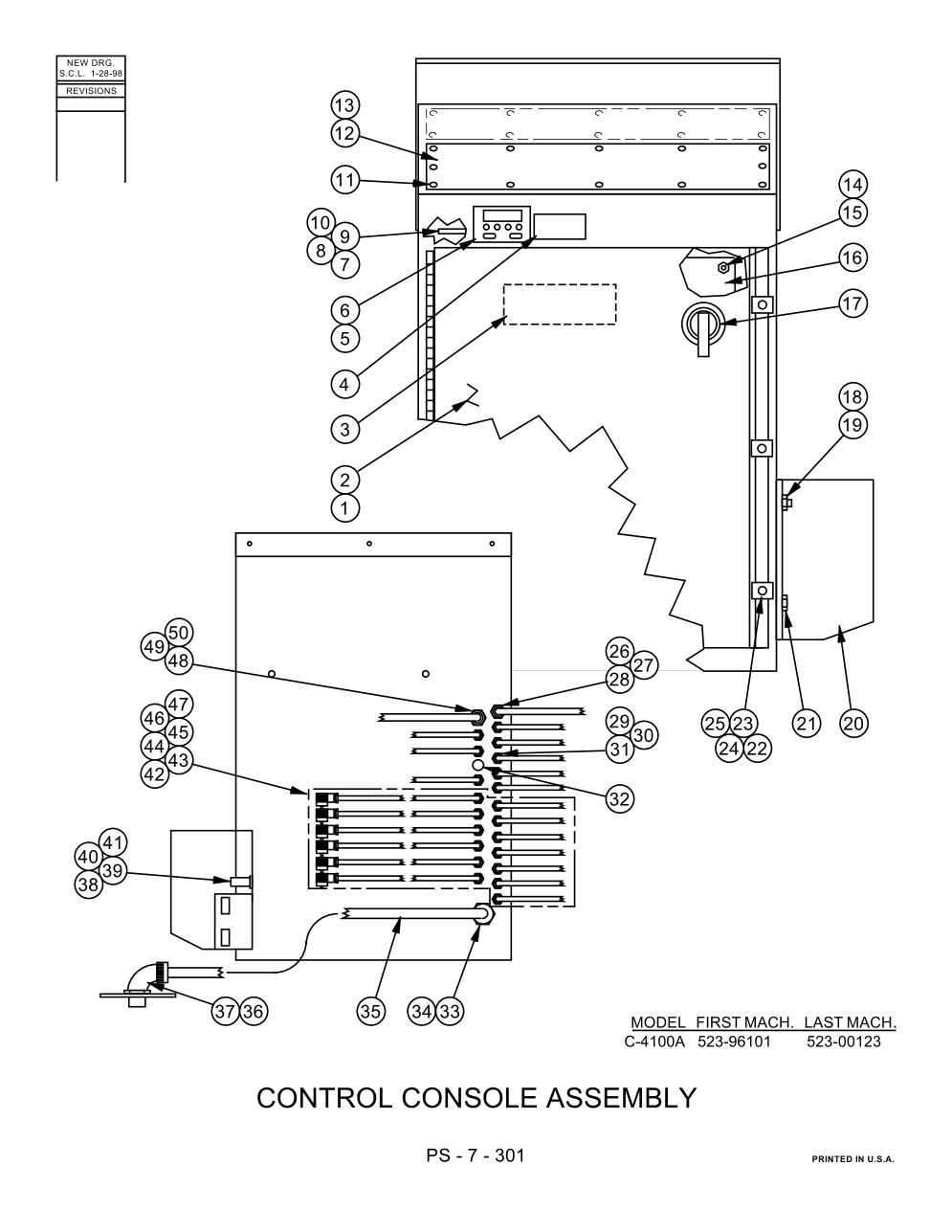

Page Code: PS-7-301

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Console Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 517610 Description: Control Console Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 203925 Description: Gasket Strip Units Per Assembly: A.R. Availability: In Stock Price: $3.20
Index No Ref.: 3 Part Number: 208184 Description: Fuse/Overload Schedule (Inside Door) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 205131 Description: Escutcheon (Counter Instructions) Units Per Assembly: 1 Availability: In Stock Price: $130.15
Index No Ref.: 5 Part Number: 204255 Description: Counter Units Per Assembly: 1 Availability: In Stock Price: $1,852.20
Index No Ref.: 6 Part Number: 204256 Description: Counter Conversion Module Units Per Assembly: 1 Availability: In Stock Price: $125.86
Index No Ref.: 7 Part Number: 320199 Description: Seperator Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 198885 Description: Screw, Rd. Hd. Mach. #10-32NC x 1/2 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 199373 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 10 Part Number: 197022 Description: Nylon Edging Units Per Assembly: A.R. Availability: In Stock Price: $2.09
Index No Ref.: 11 Part Number: 199769 Description: Screw, Button Hd. Soc. #10-32NF x 1/2 Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: Description: Pushbutton Panel Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 416985 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 199126 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 199332 Description: Washer, Lock 3/8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: Description: Control Panel Assembly (Relay) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 214417 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 213456 Description: Disconnect Switch Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 199176 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 199321 Description: Washer, Lock 1/4 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 20 Part Number: 416296 Description: Universal Transformer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 198007 Description: Screw, Hex. Hd. Cap 1/4-20NC x 5/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 204151 Description: Retainer Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 206800 Description: Screw, Slotted Hex. Cap 1/4-28NF x 3/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 203947 Description: Rivet Nut 1/4-28NF Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 204153 Description: Nylon Washer Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 201696 Description: Cord Grip Connector (.394-.551) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 207693 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 197331 Description: Extension Cord (#18-6 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $3.56
Index No Ref.: 29 Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 8 Availability: In Stock Price: $5.96
Index No Ref.: 30 Part Number: 207692 Description: Locknut Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 32 Part Number: 135106 Description: Hole Seal Units Per Assembly: 1 Availability: In Stock Price: $15.31
Index No Ref.: 33 Part Number: 201273 Description: Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 014687 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 197159 Description: Sealtite Conduit 1" I.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 201275 Description: 90 Degree Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 014687 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 174933 Description: Conduit Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 014687 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 015721 Description: Insulating Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 015618 Description: Bond Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 201688 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 13 Availability: In Stock Price: $5.96
Index No Ref.: 43 Part Number: 207692 Description: Locknut Units Per Assembly: 13 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 197332 Description: Extension Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 45 Part Number: 201269 Description: Solenoid Plug Connector (Black) Units Per Assembly: 6 Availability: In Stock Price: $16.12
Index No Ref.: 46 Part Number: 201270 Description: Solenoid Plug Connector (Gray) Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 201271 Description: Rubber Gasket Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 201687 Description: Cord Grip Connector (.545-.709) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 207694 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 197223 Description: Extension Cord (#12-4 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.37
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 197205 Description: Wire, #18 Blue (16 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197325 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197197 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 197343 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197420 Description: Wire, #10 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197243 Description: Wire, #10 Green/Yellow Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 197341 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 103848 Description: Wire Terminal #8 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 007635 Description: Wire Terminal #10 Units Per Assembly: A.R. Availability: Call For Info Price:
