Exploded View Parts Ordering: C-4100A_523

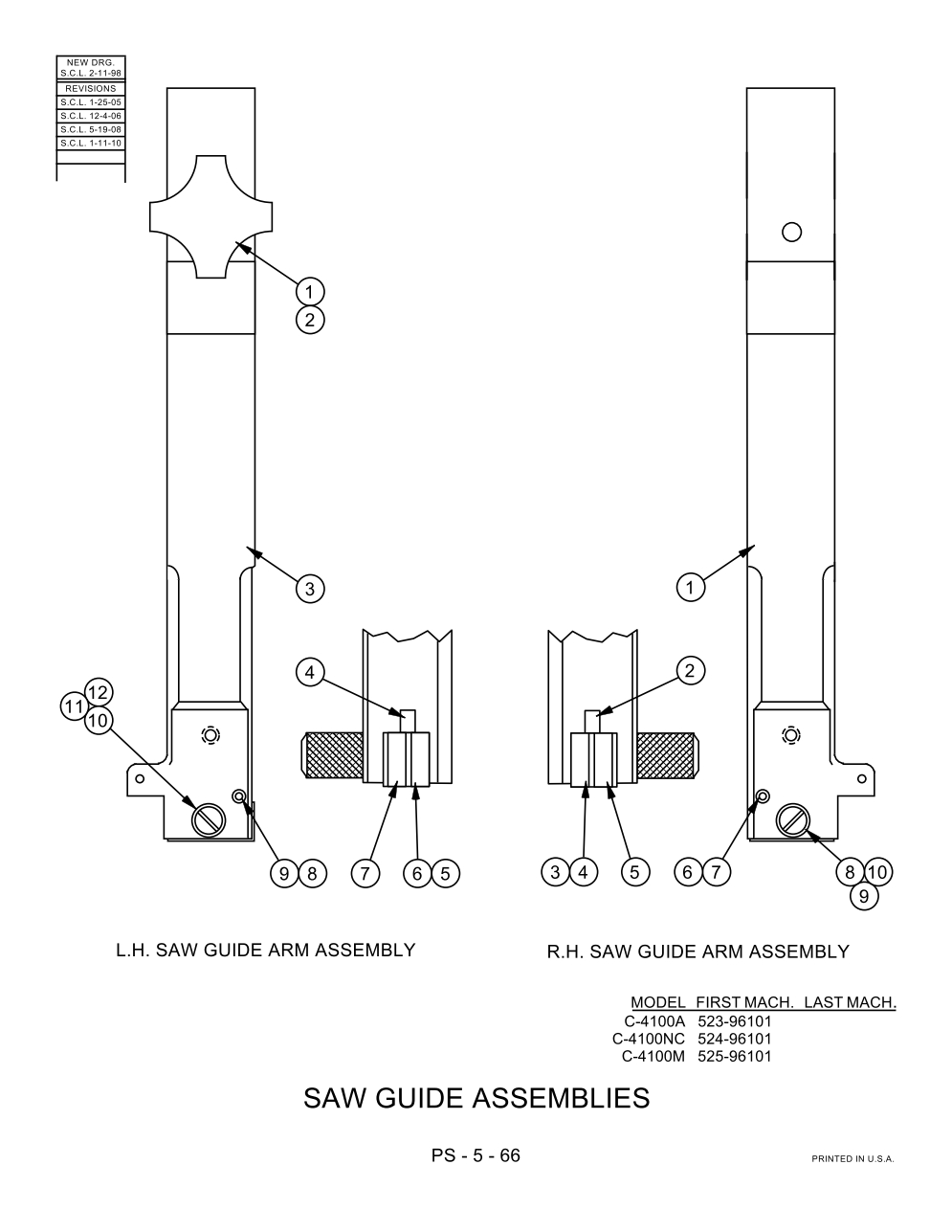

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

Page Code: PS-5-66

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 417234 Description: L.H. Saw Guide Arm Assembly Units Per Assembly: Availability: In Stock Price: $1,864.80
Index No Ref.: 1 Part Number: 320292 Description: Handwheel Units Per Assembly: 1 Availability: In Stock Price: $73.73
Index No Ref.: 2 Part Number: 35-005828 Description: Hardened Washer Units Per Assembly: 1 Availability: In Stock Price: $6.52
Index No Ref.: 3 Part Number: 516483 Description: L.H. Saw Guide Arm Units Per Assembly: 1 Availability: In Stock Price: $956.55
Index No Ref.: 4 Part Number: 149003 Description: Back-Up Insert Units Per Assembly: 1 Availability: In Stock Price: $68.92
Index No Ref.: 5 Part Number: 147670 Description: Fixed Insert Assembly (Rear) Units Per Assembly: 1 Availability: In Stock Price: $325.49
Index No Ref.: 6 Part Number: 198361 Description: Screw, Soc. Hd. Cap 1/4-28NF x 5/8 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 7 Part Number: 179699 Description: Adjustable Insert Assembly (Front) Units Per Assembly: 1 Availability: In Stock Price: $324.23
Index No Ref.: 8 Part Number: 149002 Description: Pivot Bolt Units Per Assembly: 1 Availability: In Stock Price: $40.23
Index No Ref.: 9 Part Number: 003559 Description: Washer, Lock 1/4 Hi-Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 318170 Description: Housing Units Per Assembly: 1 Availability: In Stock Price: $76.38
Index No Ref.: 11 Part Number: 179868 Description: Plunger Units Per Assembly: 1 Availability: In Stock Price: $24.12
Index No Ref.: 12 Part Number: 139457 Description: Compression Spring Units Per Assembly: 1 Availability: In Stock Price: $6.27
Index No Ref.: Ref. Part Number: 417235 Description: R.H. Saw Guide Arm Assembly Units Per Assembly: Availability: In Stock Price: $2,077.04
Index No Ref.: 1 Part Number: 516484 Description: R.H. Saw Guide Arm Units Per Assembly: 1 Availability: In Stock Price: $1,042.46
Index No Ref.: 2 Part Number: 149003 Description: Back-Up Insert Units Per Assembly: 1 Availability: In Stock Price: $68.92
Index No Ref.: 3 Part Number: 147610 Description: Fixed Insert Assembly (Rear) Units Per Assembly: 1 Availability: In Stock Price: $325.49
Index No Ref.: 4 Part Number: 198361 Description: Screw, Soc. Hd. Cap 1/4-28NF x 5/8 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 5 Part Number: 179800 Description: Adjustable Insert Assembly (Front) Units Per Assembly: 1 Availability: In Stock Price: $324.23
Index No Ref.: 6 Part Number: 149002 Description: Pivot Bolt Units Per Assembly: 1 Availability: In Stock Price: $40.23
Index No Ref.: 7 Part Number: 003559 Description: Washer, Lock 1/4 Hi-Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 318170 Description: Housing Units Per Assembly: 1 Availability: In Stock Price: $76.38
Index No Ref.: 9 Part Number: 179868 Description: Plunger Units Per Assembly: 1 Availability: In Stock Price: $24.12
Index No Ref.: 10 Part Number: 139457 Description: Compression Spring Units Per Assembly: 1 Availability: In Stock Price: $6.27
