Exploded View Parts Ordering: C-4100A_523

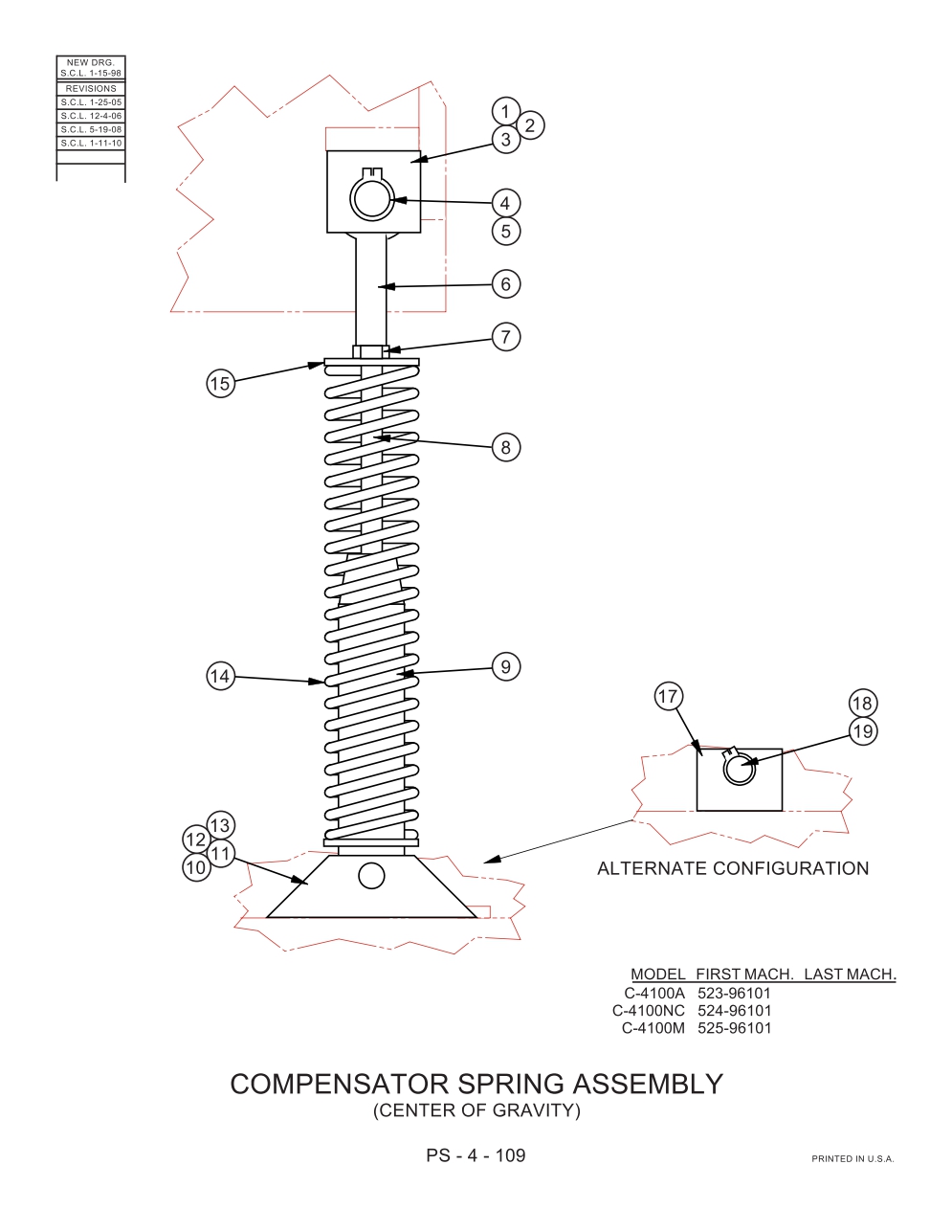

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

Page Code: PS-4-109

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 203044 Description: Compensator Spring Assembly (Center of Gravity) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 318839 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 198045 Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 175258 Description: Pin Units Per Assembly: 1 Availability: In Stock Price: $31.14
Index No Ref.: 5 Part Number: 35-008688 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $4.00
Index No Ref.: 6 Part Number: 176733 Description: Self-Aligning Rod End Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 199142 Description: Nut, Hex. Jam 3/4-16NF Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 213144 Description: Compression Spring Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 319352 Description: Rod Guide Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 322653 Description: Bracket Weldment Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 198045 Description: Screw, Hex. Hd. Cap 3/8-16NC x 7/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 199264 Description: Washer, Flat 3/8 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 13 Part Number: 199325 Description: Washer, Lock 3/8 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 202490 Description: Compression Spring Units Per Assembly: 1 Availability: In Stock Price: $167.50
Index No Ref.: 15 Part Number: 179576 Description: Washer Units Per Assembly: 1 Availability: In Stock Price: $41.98
Index No Ref.: Part Number: Description: Alternate Configuration: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 318127 Description: Bracket Units Per Assembly: 1 Availability: In Stock Price: $56.29
Index No Ref.: 18 Part Number: 179579 Description: Pin Units Per Assembly: 1 Availability: In Stock Price: $29.53
Index No Ref.: 19 Part Number: 35-009613 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $4.20
