Exploded View Parts Ordering: C-4100A_523

C-4100A 523 Online Parts Manual

Serial No: 523-96101

Download PDF Version

Return to manuals

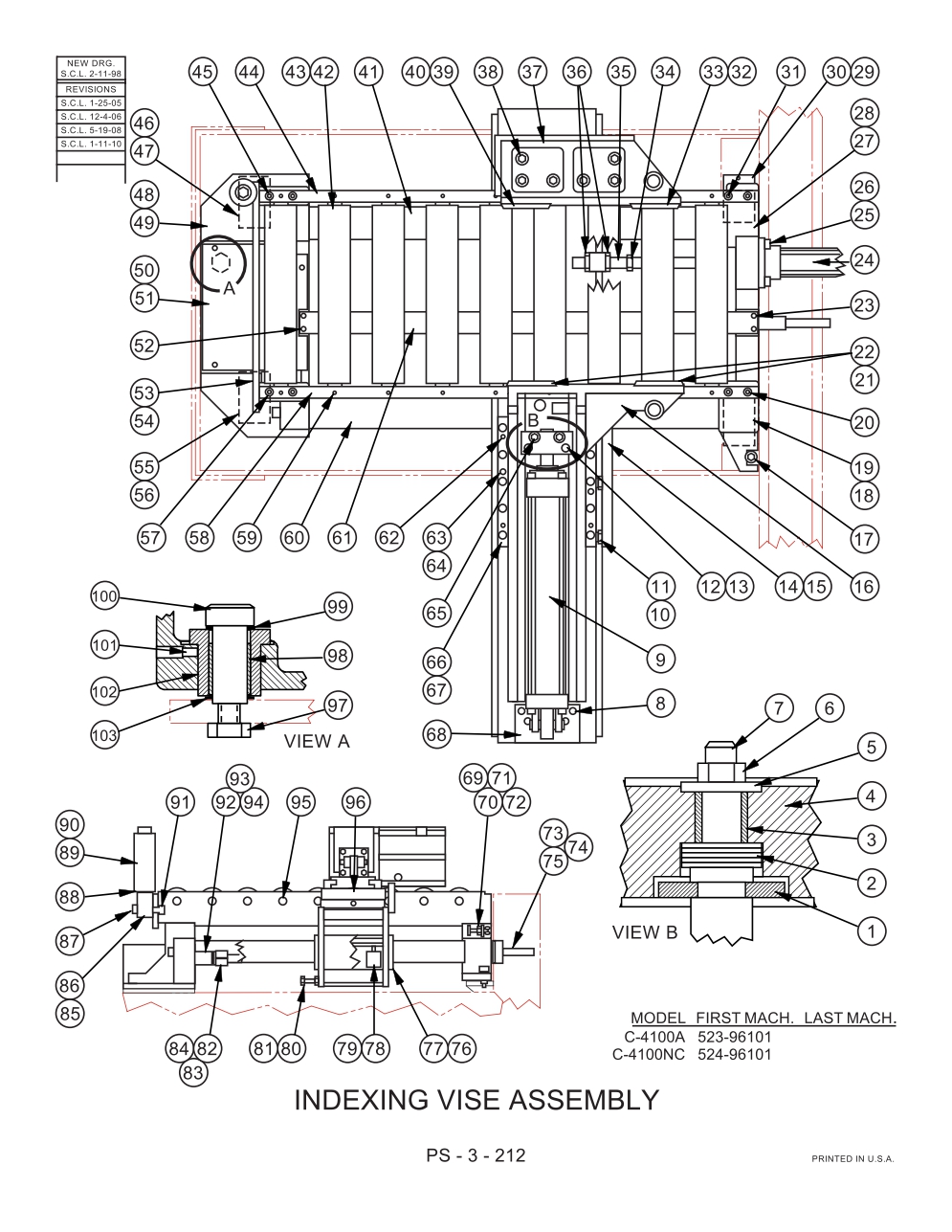

Page Code: PS-3-212

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 208018 Description: Indexing Vise Assembly (C-4100A) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 207097 Description: Indexing Vise Assembly (C-4100NC) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 178929 Description: Actuator Disk Units Per Assembly: 1 Availability: In Stock Price: $30.86
Index No Ref.: 2 Part Number: 124654 Description: Belleville Washer Units Per Assembly: 5 Availability: In Stock Price: $4.27
Index No Ref.: 3 Part Number: 005123 Description: Sleeve Bearing (Bronze) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 417010 Description: Bearing Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 199266 Description: Washer, Flat 1/2 S.A.E. Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 012705 Description: Locknut 1/2-13NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 317883 Description: Shaft Extension Units Per Assembly: 1 Availability: In Stock Price: $71.04
Index No Ref.: 8 Part Number: 198296 Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 179387 Description: Index Vise Clamp Cylinder Units Per Assembly: 1 Availability: In Stock Price: $2,036.22
Index No Ref.: 10 Part Number: 198557 Description: Screw, Soc. Set 3/8-16NC x 1-1/4 (Flat Point) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 199127 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 12 Part Number: 198390 Description: Screw, Soc. Hd. Cap 7/16-14NC x 3 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 199339 Description: Washer, Lock 7/16 Hi-Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 319395 Description: Backer Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 198280 Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/4 5 Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 516089 Description: Movable Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 203059 Description: Screw, Soc. Hd. Shoulder 1/2-13NC x 1-1/2 (5/8 Dia.) Units Per Assembly: 1 Availability: In Stock Price: $14.79
Index No Ref.: 18 Part Number: 202400 Description: Bearing Pad Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 20 Part Number: 198304 Description: Screw, Soc. Hd. Cap 1/2-13NC x 4-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 319271 Description: Wear Plate (Serrated) Units Per Assembly: 2 Availability: In Stock Price: $497.09
Index No Ref.: Part Number: 319272 Description: Wear Plate (Urethane) Units Per Assembly: 2 Availability: In Stock Price: $276.00
Index No Ref.: Part Number: 319270 Description: Wear Plate (Steel) Units Per Assembly: 2 Availability: In Stock Price: $537.40
Index No Ref.: 22 Part Number: 199873 Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (Low Head) Units Per Assembly: 12 Availability: In Stock Price: $4.20
Index No Ref.: 23 Part Number: 198242 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 202754 Description: Indexing Vise Feed Cylinder Units Per Assembly: 1 Availability: In Stock Price: $3,490.67
Index No Ref.: 25 Part Number: 198259 Description: Screw, Soc. Hd. Cap 5/16-18NC x 7/8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 26 Part Number: 199323 Description: Washer, Lock 5/16 Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 27 Part Number: 515983 Description: Crosshead Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 200948 Description: Sleeve Bearing (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 198296 Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-3/4 (Mount Way Bars) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 202400 Description: Bearing Pad Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 31 Part Number: 198304 Description: Screw, Soc. Hd. Cap 1/2-13NC x 4-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 319271 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $497.09
Index No Ref.: Part Number: 319270 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $537.40
Index No Ref.: 33 Part Number: 199873 Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (Low Head) Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 34 Part Number: 199189 Description: Nut, Hex. Jam 3/4-16NF (Black Oxide) Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 35 Part Number: 200929 Description: Stud Units Per Assembly: 1 Availability: In Stock Price: $77.94
Index No Ref.: 36 Part Number: 176247 Description: Collar Units Per Assembly: 2 Availability: In Stock Price: $12.60
Index No Ref.: 37 Part Number: 517225 Description: Fixed Jaw Units Per Assembly: 1 Availability: In Stock Price: $980.42
Index No Ref.: 38 Part Number: 198324 Description: Screw, Soc. Hd. Cap 5/8-11NC x 1-3/4 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 319271 Description: Wear Plate (Serrated) Units Per Assembly: 1 Availability: In Stock Price: $497.09
Index No Ref.: Part Number: 319270 Description: Wear Plate (Steel) Units Per Assembly: 1 Availability: In Stock Price: $537.40
Index No Ref.: 40 Part Number: 199873 Description: Screw, Soc. Hd. Cap 1/4-20NC x 5/8 (Low Head) Units Per Assembly: 6 Availability: In Stock Price: $4.20
Index No Ref.: 41 Part Number: 319167 Description: Way Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 318173 Description: Roller Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 200106 Description: Bearing Units Per Assembly: 18 Availability: In Stock Price: $92.49
Index No Ref.: 44 Part Number: 515979 Description: Side Rail Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 198304 Description: Screw, Soc. Hd. Cap 1/2-13NC x 4-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 202400 Description: Bearing Pad Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 48 Part Number: 516107 Description: Yoke Assembly (See Detail) (C-4100A) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 515982 Description: Yoke (C-4100NC) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 198296 Description: Screw, Soc. Hd. Cap 1/2-13NC x 1-3/4 Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 50* Part Number: 418484 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 198366 Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 198242 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 53 Part Number: 318238 Description: Vertical Support Rail Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 198278 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 202400 Description: Bearing Pad Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 57 Part Number: 198304 Description: Screw, Soc. Hd. Cap 1/2-13NC x 4-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 515979 Description: Side Rail Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 198449 Description: Screw, Soc. Set 3/8-16NC x 1/2 Units Per Assembly: 18 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 319167 Description: Way Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 319379 Description: Cover (C-4100A) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 517881 Description: Linear Encoder Assembly (See Detail) (C-4100NC) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 005918 Description: Dowel Pin (3/8 Dia.) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 010834 Description: Dowel Pin (1/2 Dia.) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 35-009473 Description: Grease Fitting Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 198432 Description: Screw, Soc. Set 1/4-28NF x 1/4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 65 Part Number: 202819 Description: Screw, Soc. Hd. Shoulder 3/8-16NC x 3 (1/2 Dia.) Units Per Assembly: 2 Availability: In Stock Price: $10.26
Index No Ref.: 66 Part Number: 417501 Description: Gib Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 198281 Description: Screw, Soc. Hd. Cap 3/8-16NC x 1-1/2 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 417912 Description: Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 417106 Description: Actuator Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 198321 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 71 Part Number: 147762 Description: Actuator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 199123 Description: Nut, Hex. Jam 5/16-18NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 73 Part Number: 515220 Description: Lead Screw (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 35-008688 Description: Retaining Ring (C-4100A Only) Units Per Assembly: 1 Availability: In Stock Price: $4.00
Index No Ref.: 75 Part Number: 104654 Description: Roll Pin (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 76 Part Number: 206755 Description: Bearing (Self-Lubricating) Units Per Assembly: 4 Availability: In Stock Price: $121.56
Index No Ref.: 77 Part Number: 202011 Description: Rod Wiper Units Per Assembly: 4 Availability: In Stock Price: $10.50
Index No Ref.: 78 Part Number: 319380 Description: Lead Screw Nut (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 79 Part Number: 202980 Description: Spring Pin (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 80 Part Number: 198053 Description: Screw, Hex. Hd. Cap 3/8-16NC x 2-3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 81 Part Number: 199127 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 82 Part Number: 318878 Description: Clamp Collar (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 83 Part Number: 015064 Description: Compression Spring (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 84 Part Number: 199269 Description: Washer, Flat 7/8 S.A.E. Std. (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 85 Part Number: 416492 Description: Pivot Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 86 Part Number: 198278 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 87 Part Number: 198288 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3-1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 88 Part Number: 200106 Description: Bearing Units Per Assembly: 2 Availability: In Stock Price: $92.49
Index No Ref.: 89 Part Number: 318236 Description: Roller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 90 Part Number: 318237 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 91 Part Number: 200200 Description: T-Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 92 Part Number: 201302 Description: Die Spring (Urethane Polymer) (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 93 Part Number: 199270 Description: Washer Flat 1 S.A.E. Std. (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 94 Part Number: 199269 Description: Washer, Flat 7/8 S.A.E. Std. (C-4100A Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 95 Part Number: 319288 Description: Shaft Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 96 Part Number: 517280 Description: Index Vise Base Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 97 Part Number: 017373 Description: Locknut 7/8-9NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 98 Part Number: 202605 Description: DU Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 99 Part Number: 202606 Description: DU Thrust Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 100 Part Number: 202607 Description: Screw, Soc. Hd. Shoulder 7/8-9NCx 2-3/4 (1-1/4 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 101 Part Number: 198451 Description: Screw, Soc. Set 3/8-16NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 102 Part Number: 319260 Description: Eccentric Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 103 Part Number: 202606 Description: DU Thrust Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Item #48 was #318712 Before Serial #524-97116 on C-4100NC Only Units Per Assembly: Availability: Call For Info Price:
