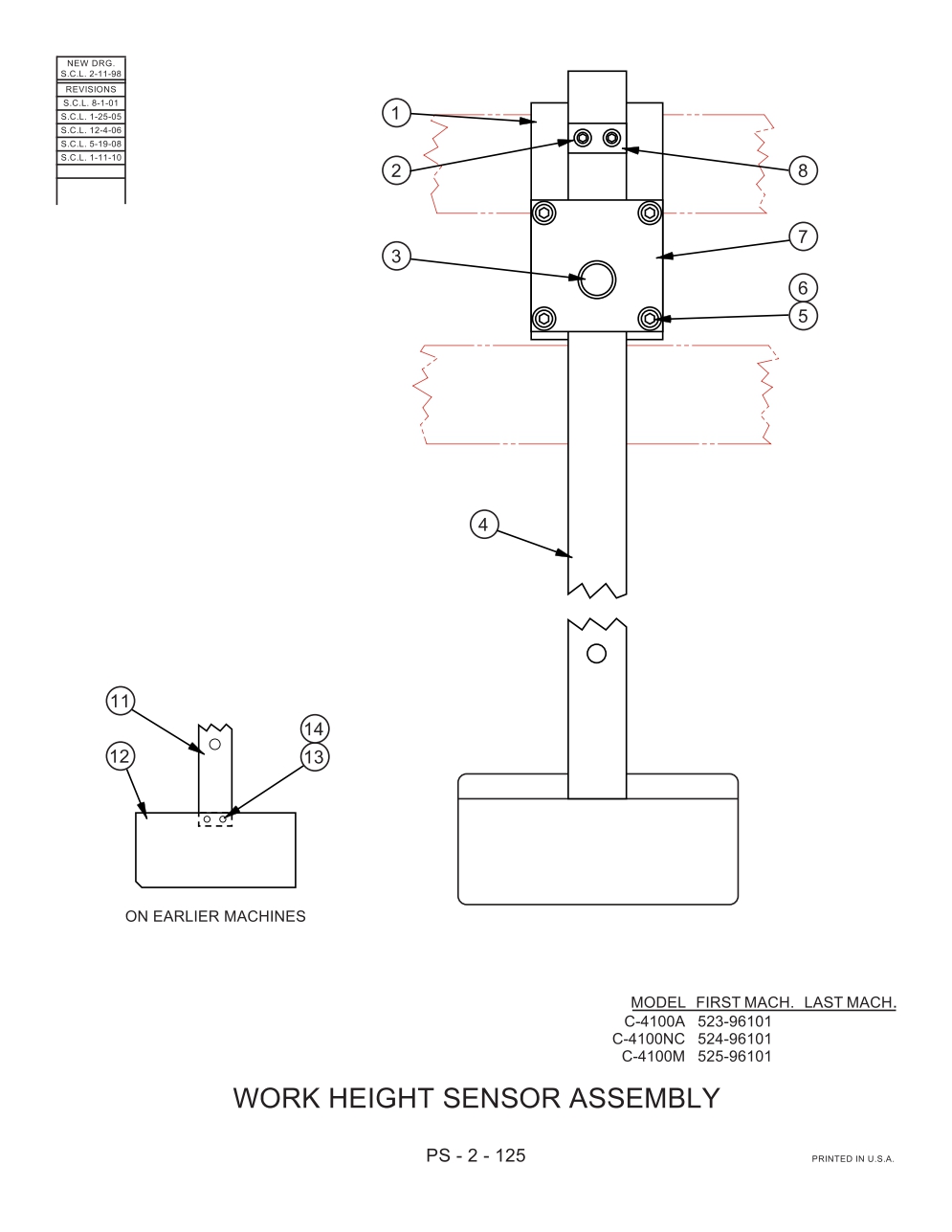

Exploded View Parts Ordering: C-4100A_523
Page Code: PS-2-125
| Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
|
Index No Ref.:
Ref. |
Part Number:
517470 |
Description:
Work Height Sensor Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
1 |
Part Number:
418057 |
Description:
Work Height Sensor Weldment |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
2 |
Part Number:
199916
|
Description:
Screw, Soc. Hd. Cap M5-0.8 x 10 |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$4.20 |
|
Index No Ref.:
3 |
Part Number:
204777
|
Description:
Thumb Screw Assembly |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$12.09 |
|
Index No Ref.:
|
Part Number:
204778
|
Description:
Knob |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
|
Index No Ref.:
|
Part Number:
199816 |
Description:
Screw, Soc. Hd. Cap M8-1.25 x 19 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
4* |
Part Number:
326840
|
Description:
Blade/Arm Weldment |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$542.62 |
|
Index No Ref.:
5 |
Part Number:
199981 |
Description:
Screw, Soc. Hd. Cap M8-1.25 x 30 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
6 |
Part Number:
199250 |
Description:
Nut, Hex. Jam M8-1.25 |
Units Per Assembly:
4 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
7 |
Part Number:
418139
|
Description:
Block |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$215.04 |
|
Index No Ref.:
8 |
Part Number:
207895
|
Description:
Stop Block |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$51.63 |
|
Index No Ref.:
|
Part Number:
|
Description:
*Note: Before Serial #523-06158 on C-4100A, #523-06292 on C-4100NC and #525-07111 on C-4100M: |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
11 |
Part Number:
320884
|
Description:
Arm |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$254.59 |
|
Index No Ref.:
12 |
Part Number:
318380
|
Description:
Blade |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$32.00 |
|
Index No Ref.:
13 |
Part Number:
199974
|
Description:
Screw, Button Hd. Soc. M5 x 0.8 x 10 |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$0.20 |
|
Index No Ref.:
14 |
Part Number:
202689
|
Description:
Spacer |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$40.23 |
